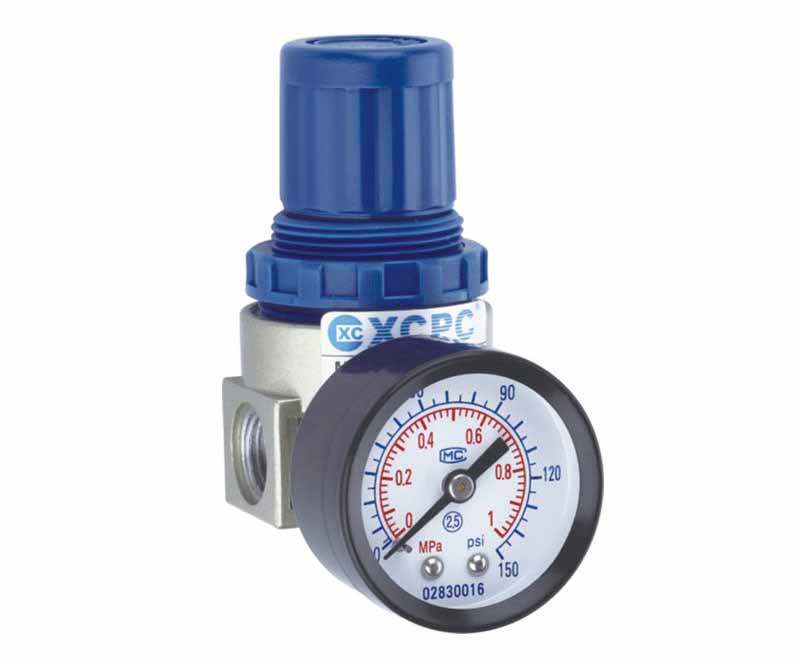

AR,BR(Regulator)

Series: AR,BR(Regulator)

Operating Fluid	Air
Range of Adjustable Pressure	0.05-0.85MPa
Max.Adjustable Pressure	0.95MPa
Ensured Pressure Resistance	1.5MPa
Operating Temperature Range	5-60℃
Material OF Body	Aluminum Die-casting Forming

Download PDF Inquily now

Sub Series Of AC,BC Series F.R.L

6Results

AC,BC (Three Elements)

AFC,BFC (Two Elements)

AFR,BFR( Filter&Regulato)

AF,BF(Air filter)

AR,BR(Regulator)

AL.BL(Lubricator)

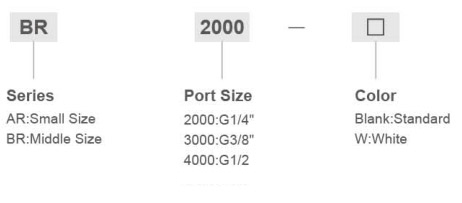

Ordering Code

Specification

Model	AR2000	BR2000	BR3000	BR4000
Operating Fluid	Air
Port Size	G1/4"	G1/4"	G3/8"	G1/2"
Range of Adjustable Pressure	0.05-0.85MPa
Max.Adjustable Pressure	0.95MPa
Ensured Pressure Resistance	1.5MPa
Operating Temperature Range	5-60℃
Material OF Body	Aluminum Die-casting Forming

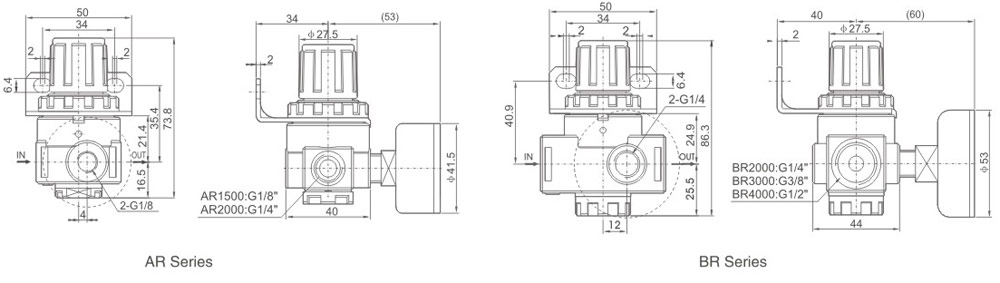

Overall Dimensions
