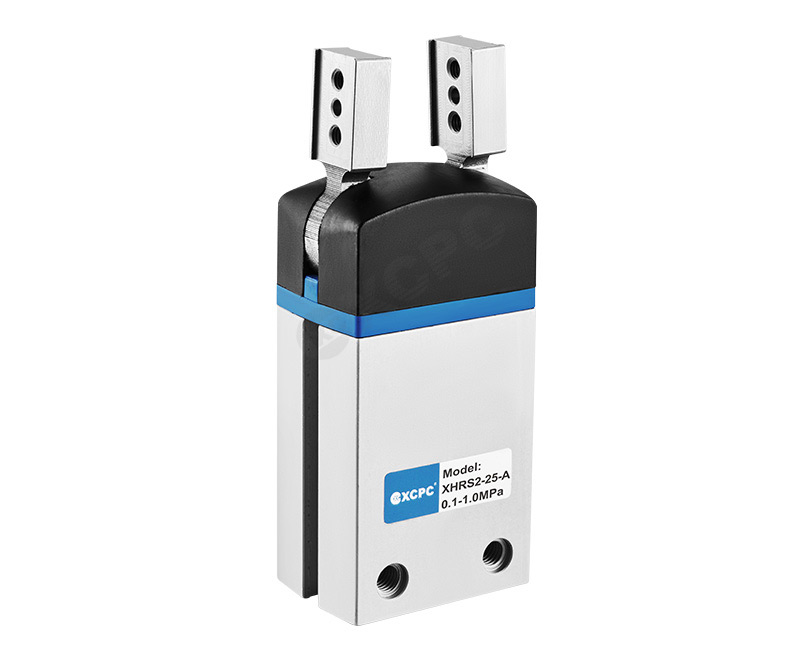

XHRS Series Radial Gripper

Series: XHRS Series Radial Gripper

Operating Medium	Compressed Air
Mode Of Operation	Double-Acting
Max.Operating Pressure	0.8MPa
Ambient Temperature	5~60℃
Max.Opening Angle	180°

Download PDF Inquily now

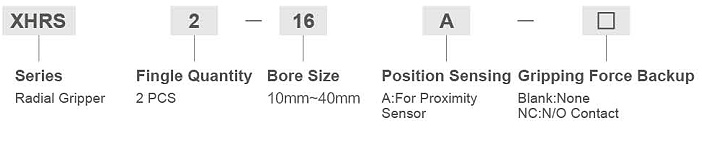

Ordering Code

Specification

Size(mm)		10	16	25	32	40
Operating Medium		Compressed Air
Mode Of Operation		Double-Acting
Max.Operating Pressure		0.8MPa
Min.Operating Pressure	XHRS-...-A	0.2MPa
	XHRS-...-A-NC	-	0.4mpa
Ambient Temperature		5~60℃
Max.Opening Angle		180°
Repetition Accuracy		≤0.1mm
Max.Interchangeability		≤±0.2mm
Max.Operating Frequency		4Hz		3Hz		2Hz
Rotational Symmetry		< Φ0.2mm
Port Size		M3		M5	G1/8"
