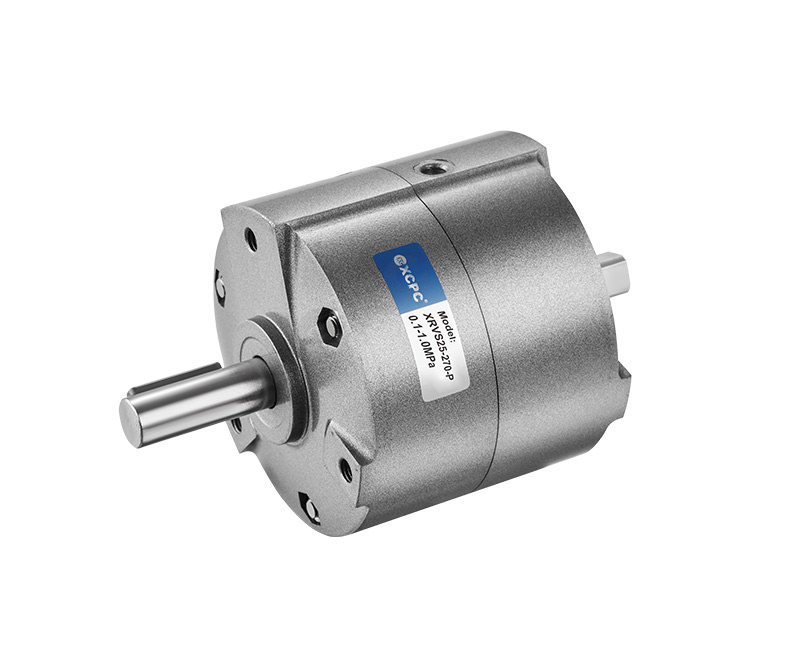

XRVS Series Semi-Rotary Cylinder

Series: XRVS Series Semi-Rotary Cylinder

Operating Medium	Compressed Air
Ambient Temperature	0~60℃
Storage Temperature	20℃
Cushioning	Elastic Cushioning At Both Ends
Cushioning Angle	0.5°

Size(mm)		6	8	12	16	25	32	40
Operating Medium		Compressed Air
Operating Pressure		0.35~0.8mpa		0.25~0.8mpa		0.2~0.8mpa
Ambient Temperature		0~60℃
Storage Temperature		20℃
Cushioning		Elastic Cushioning At Both Ends
Swivel Angle		90°or180°		90°or 180°or 2709
Cushioning Angle		0.5°
Repetition Accuracy		1°
Max.SwivelFrequency At 0.6Mpa	Swivel Angle 90°,180°	3Hz
	Swivel Angle 270°	2Hz
Port Size		M3		M5			G1/8"
