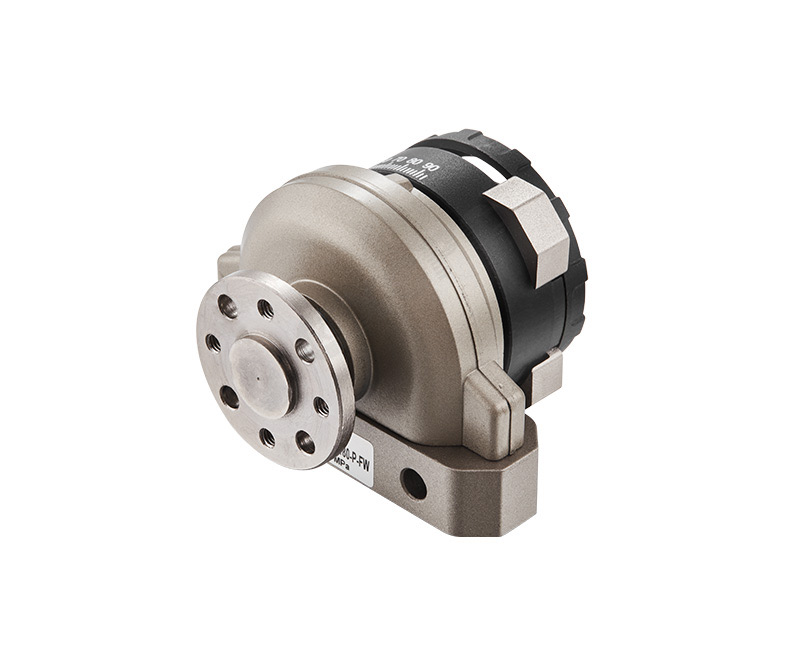

XSR Series Semi-Rotary Cylinder

Series: XSR Series Semi-Rotary Cylinder

Operating Medium	Compressed air
Temperature Range	-10~60℃
Mounting Position	Optional
Max.Swivel Angle	0 ~181° 0~184°
Port Size	M3 M5 G1/8"

Download PDF Inquily now

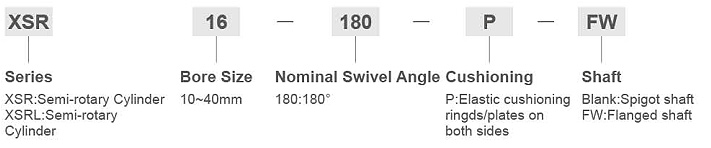

Ordering Code

Specification

Size(mm)	10	12	16	25	32	40
Operating Medium	Compressed air
Operating Pressure	0.25~0.8MPa	0.2~0.8MPa		0.15~0.8MPa
Temperature Range	-10~60℃
Type Of Mounting	With through-hole
	Via accessories
Mounting Position	Optional
Max.Swivel Angle	0 ~181°		0~184°
Port Size	M3	M5		G1/8"
