MOV Series Mechanical Valve
SERIES: MOV Series Mechanical Valve
MOV Series Mechanical Valve
FEATURES
 Working Medium
|
Air
|
|
Position and Way No.
|
Two-position Two-way
|
|
Port Size
|
G1/8"
|
|
Working-pressure Range
|
0~0.8MPa
|
|
Operating Temperature
|
0~70℃
|

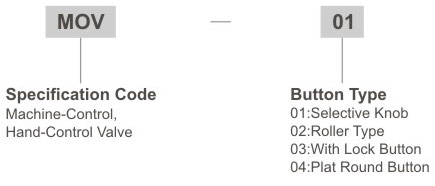

Ordering Code
Specification
|
Model
|

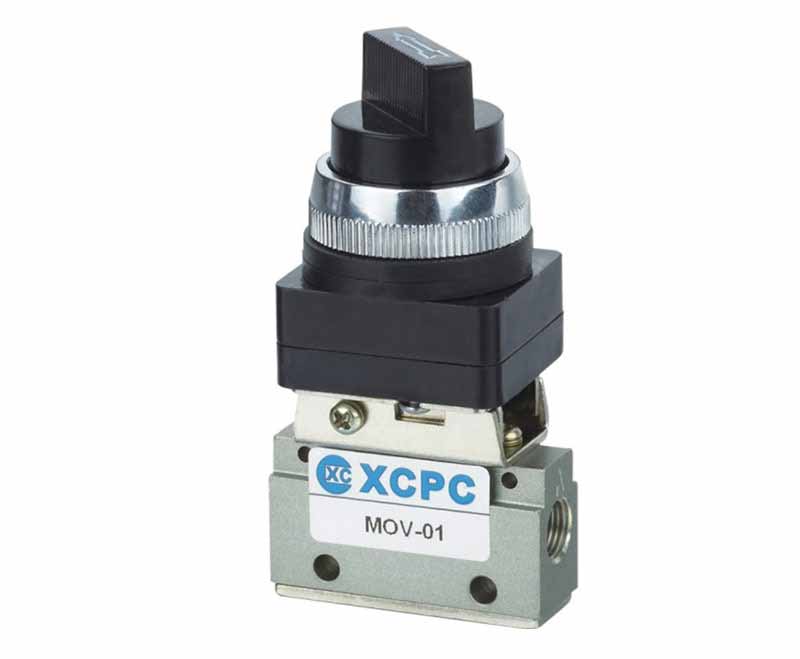

MOV-01
|

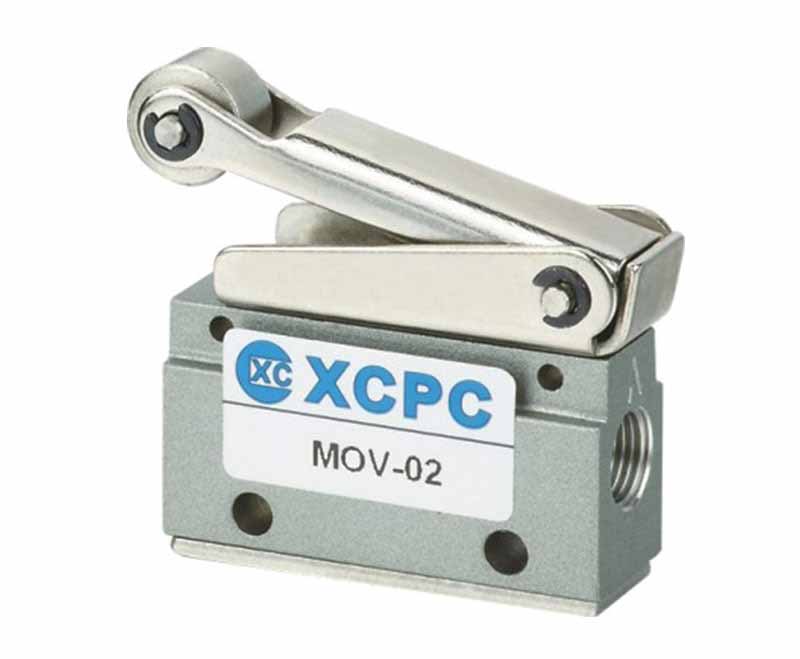

MOV-02
|

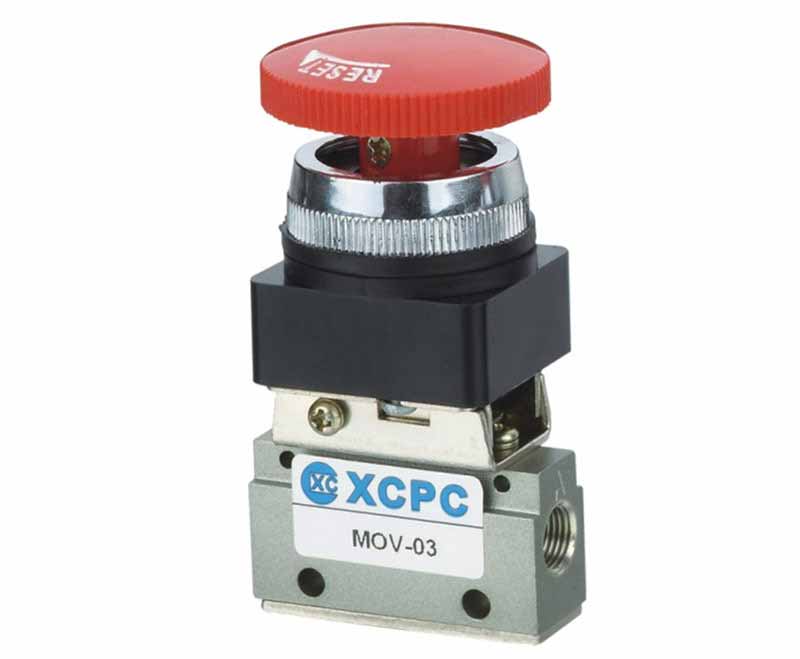

MOV-03
|

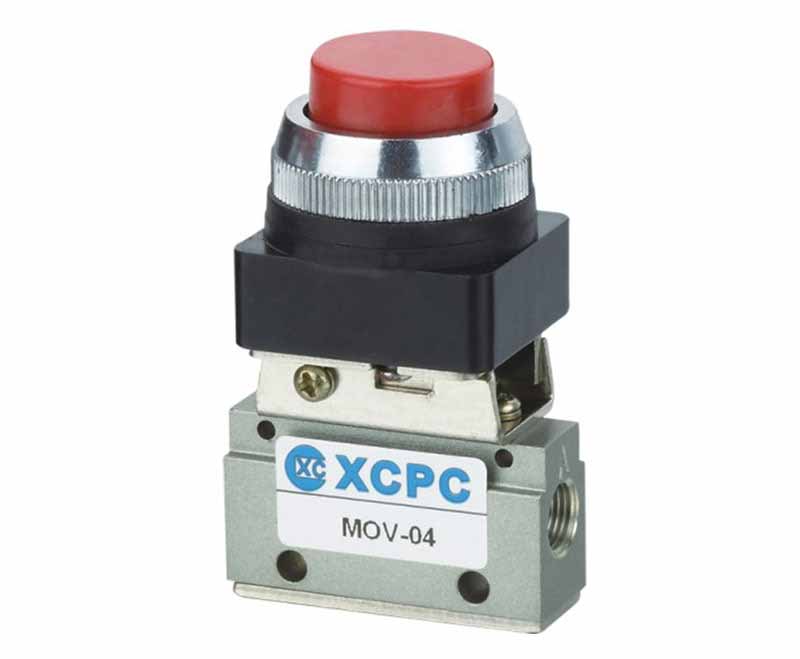

MOV-04
|
|
Working Medium
|
Air
|
|||
|
Position and Way No.
|
Two-position Two-way
|
|||
|
Port Size
|
G1/8"
|
|||
|
Working-pressure Range
|
0~0.8MPa
|
|||
|
Operating Temperature
|
0~70℃
|
|||

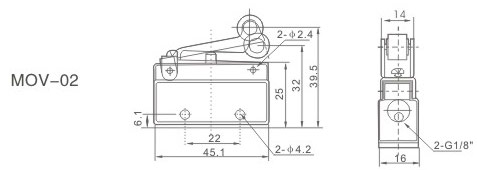

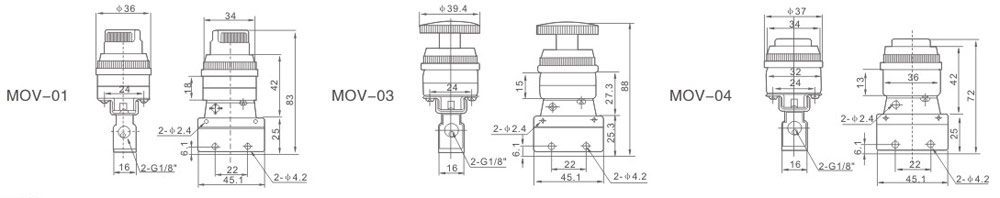

Overall Dimensions
