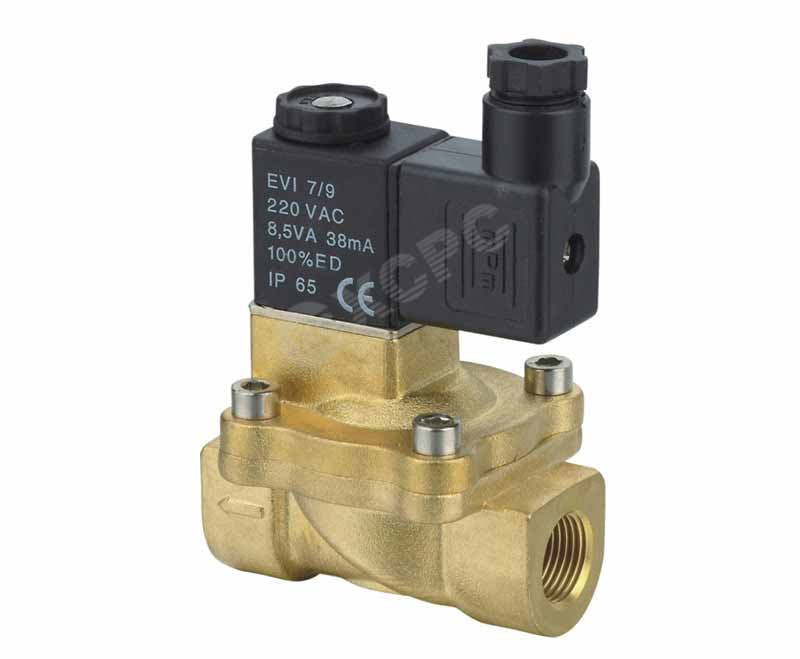

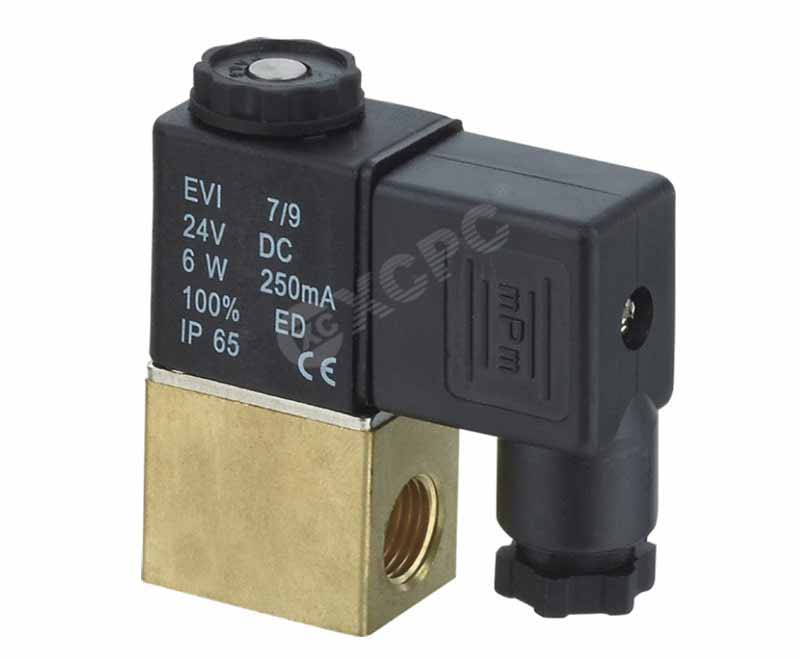

2V Series 2/2 Way Solenoid Valve
SERIES: 2V Series 2/2 Way Solenoid Valve
2V Series 2/2 Way Solenoid Valve
FEATURES
 Morking Medium
|
Air,Water,Oil
|
|
Type
|
Normal Close Type
|
|
Operation Fluid Viscosity
|
20 CST (Below)
|
|
Operating Temperature Range
|
-10~+80
|
|
Voltage Range
|
10%
|
|
Protect Class
|
IP65
|

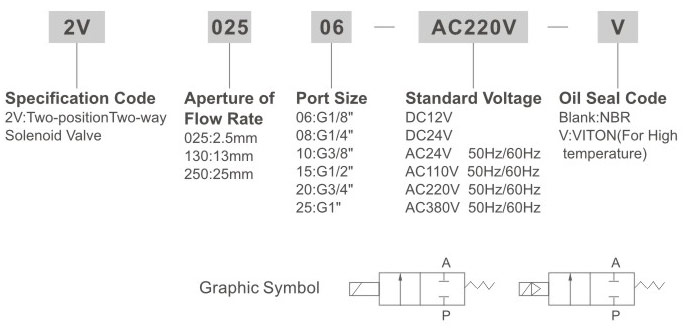

Ordering Code
Specification
|
Model
|
2V010-M4
|
2V025-06
|
2V025-08
|
2V130-10
|
2V130-15
|
2V250-20
|
2V250-25
|
|
Morking Medium
|
Air,Water,Oil
|
||||||
|
Motion Pattem
|
Direct Drive Type
|
Guide Type
|
|||||
|
Type
|
Normal Close Type
|
||||||
|
Aperture of Flow Rate(mm)
|
1.0
|
2.5
|
13
|
25
|
|||
|
CV Valye
|
0.10
|
0.23
|
6.2
|
23
|
|||
|
Port Size
|
M4X0.7
|
G1/8"
|
G1/4"
|
G3/8"
|
G1/2"
|
G3/4"
|
G1"
|
|
Operation Fluid Viscosity
|
20 CST (Below)
|
||||||
|
Working-pressure
|
Air,Water,Oil 0~0.8MPa / Air,Water,Oil 0.05~0.7MPa
|
||||||
|
Max.Pressure Resistance
|
1.2
|
1.6
|
1.0
|
||||
|
Operating Temperature Range
|
-10~+80
|
||||||
|
Voltage Range
|
10%
|
||||||
|
Protect Class
|
IP65
|
||||||
|
Power Consumption
|
AC:4.5VA?? ?DC:3W
|
||||||
|
Insulation
|
F级
|
||||||
|
Material of Body
|
Aluminum or Brass
|
Brass
|
|||||
|
Material of Oil Seal
|
NBR或VITON
|
NBR or VITON
|
|||||
|
Shortest Excitation Time
|
0.05 Second
|
||||||

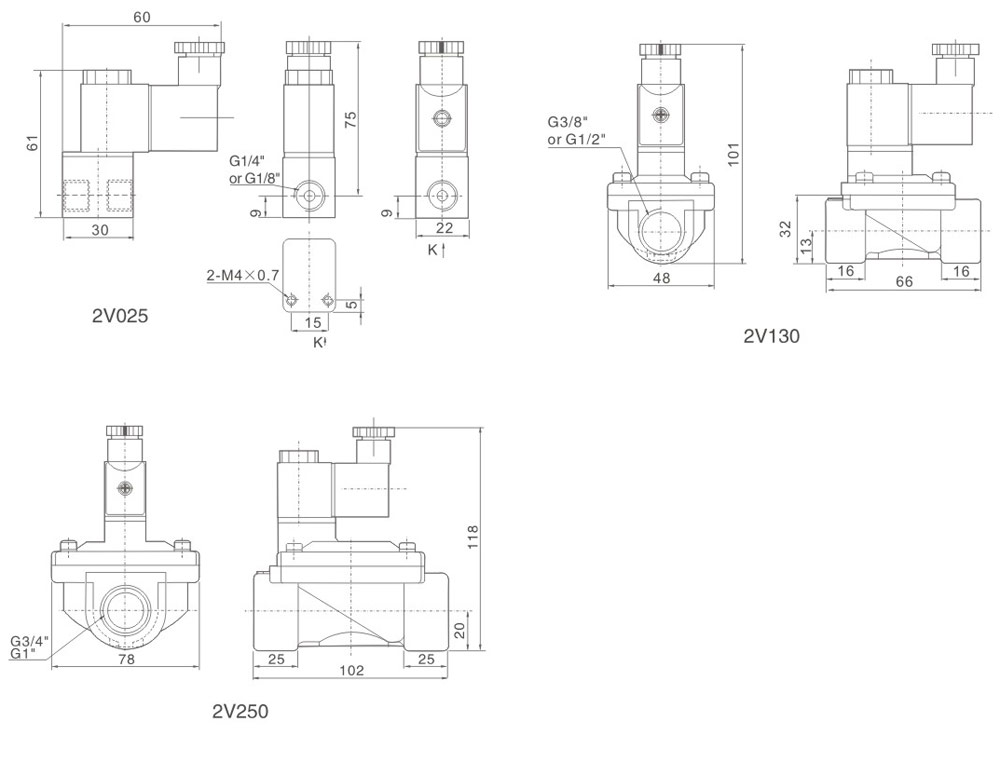

Overall Dimensions
