Series: JMJ Series Mechanical Valve
 Port Size
|
G1/4"
|
|
Working Medium
|
Air
|
|
Temperature Range
|
0~60℃
|
|
Pressure Range
|
0~1MPa
|
|
Effective Section Area
|
25mm²
|
|
Lubrication
|
Not Necessary
|
|

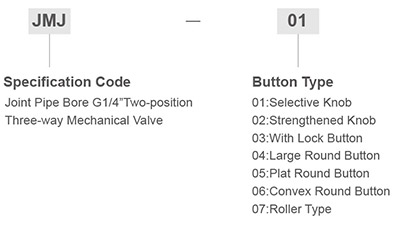

Model
|

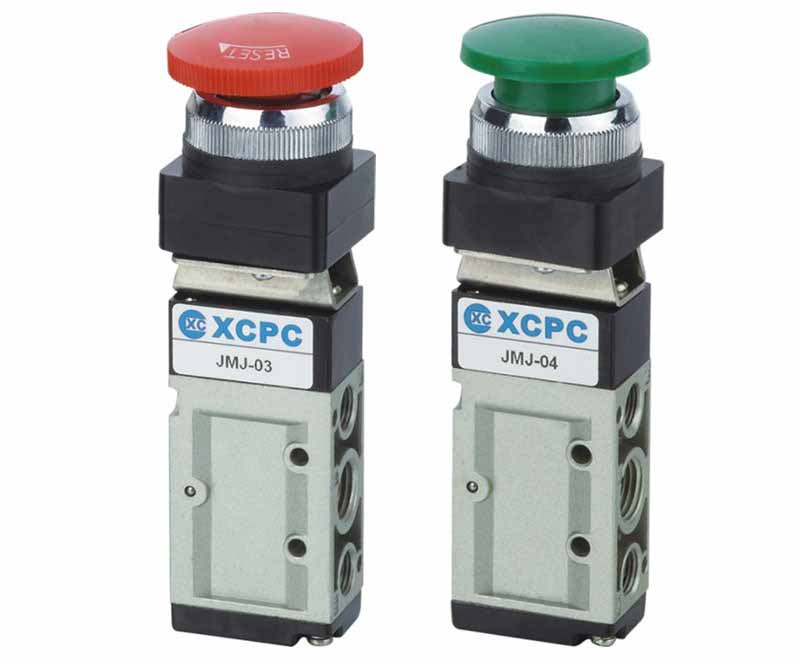

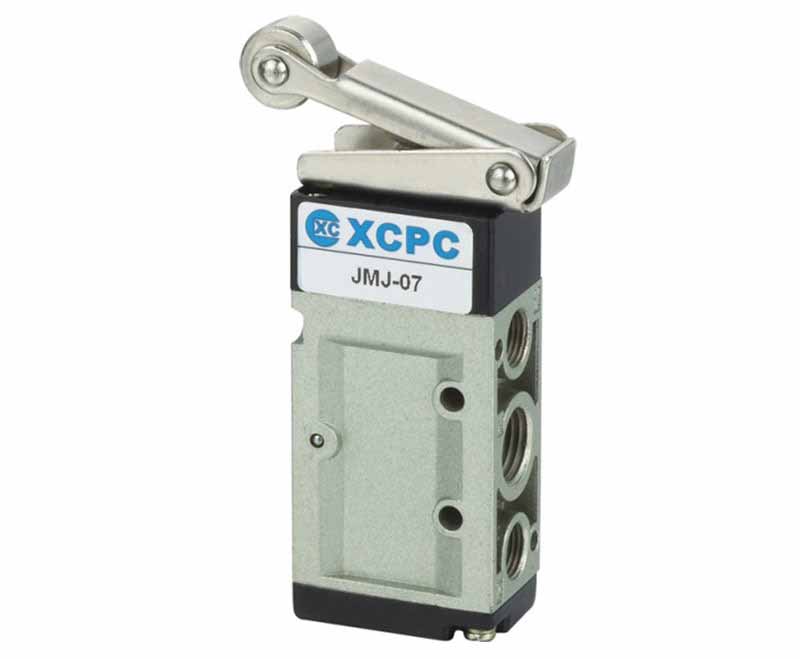

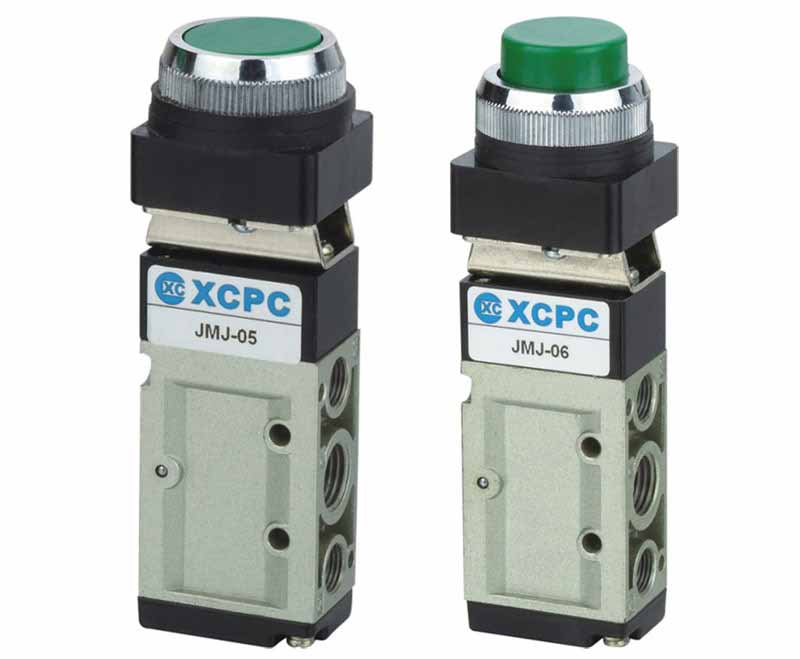

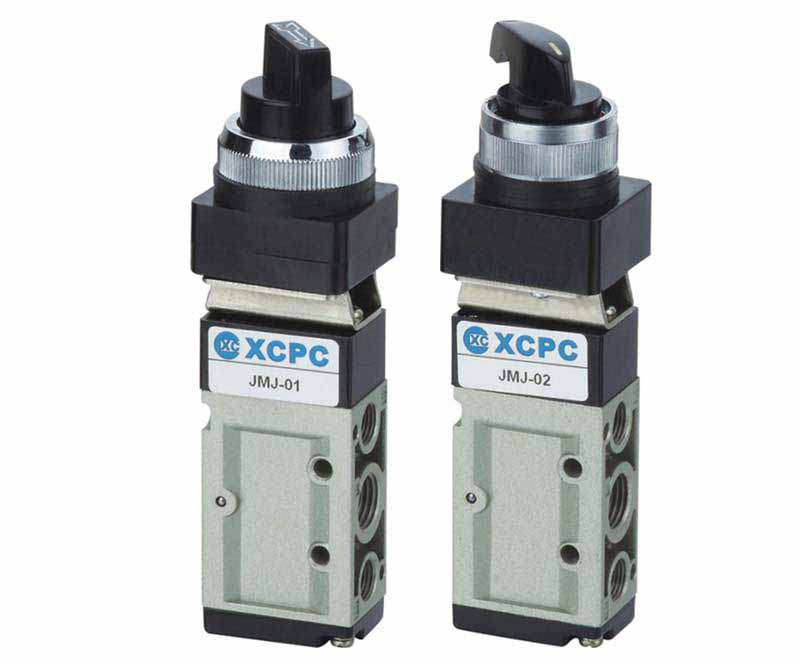

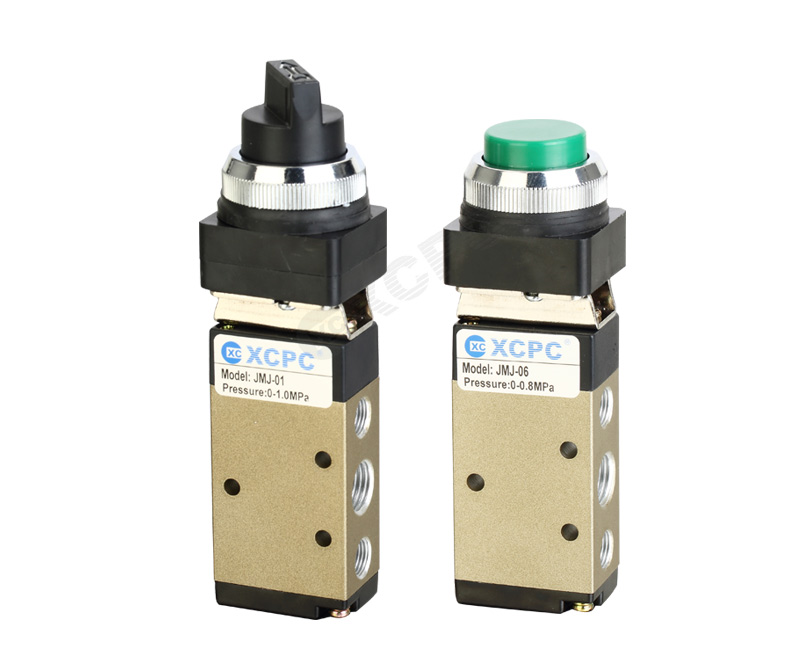

JMJ-01 02 03 04 05 06 07
|
|
Port Size
|
G1/4"
|
|
Working Medium
|
Air
|
|
Temperature Range
|
0~60℃
|
|
Pressure Range
|
0~1MPa
|
|
Effective Section Area
|
25mm²
|
|
Lubrication
|
Not Necessary
|
