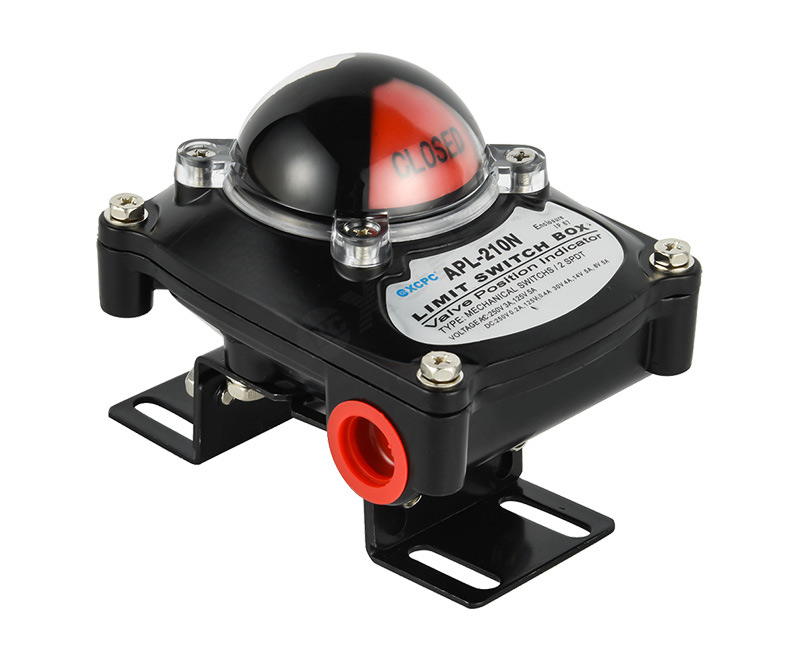

Series: APL Series Limit Switch Box
The switch is installed separately, convenient maintenance and replacement
| Firm and compact design; |
| Die-casting aluminum; |
| Quick cam machine |
| Fix springs on the cam without tools; |
| Convenient installation. |
| Panameter | Standard | Option | Meterial | |
| Protection | IP67/NEMA4&4X | IP68 | Shell | Die-casting aluminum |
| Ambient | -20℃ ~80℃ |
|
|
|
| Wiring | 2xNPT1/2 |
PF1/2",P1/2" M20.PG13.5 |
Indicate cover Indicator |
lPolyester coating ABC/polyester coating |
| Terminal | 8 Points(0.08~2.6mm²) |
|
cam | Polyester coating |
| Position Indicator |
Close:red Open:yellow |
Close:red Open:green |
Spring | Stainless Steel |
| Screw | Stainless Steel | |||
| Switch | Mechanical Switch:X2 |
|
0-ring | NBR |
| Proximity Switch:X2 | Washer | Bronze | ||
| External Painting | Polyester Coating |
Red,Green,Blue,Yellow Nylon Paonting |
E-ring | Stainless Steel |
| Earth Line | Stainless Steel | |||
| Axis | Standard Axis(17mm) | Lengthen Axis | Frame | Stainless Steel |
