SY7000 Series 5 Port Low Energy Consumption High Performance Valve
Series: SY7000 Series 5 Port Low Energy Consumption High Performance Valve
| Joint Pipe Bore | G1/4" | |||
| Working Medium | 40 Micron Filtered Air | |||
| Motion Pattern | Inner Guide Type | |||
| Operating Temperature | -5~60℃ | |||

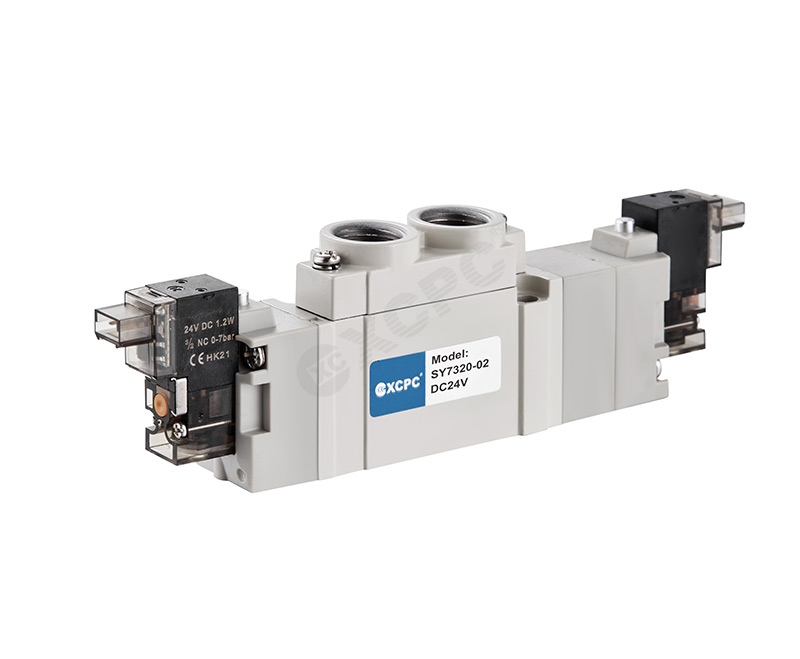

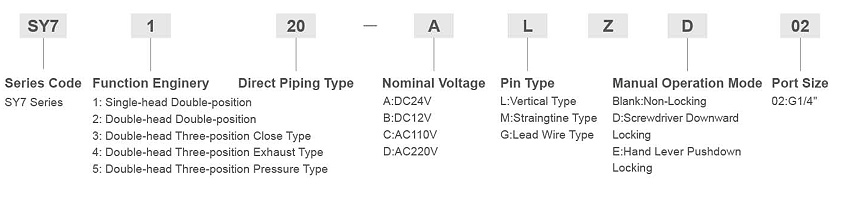

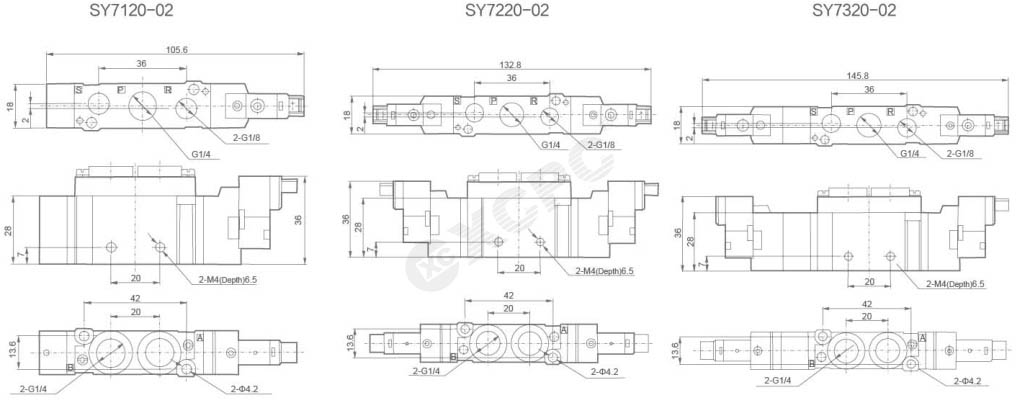

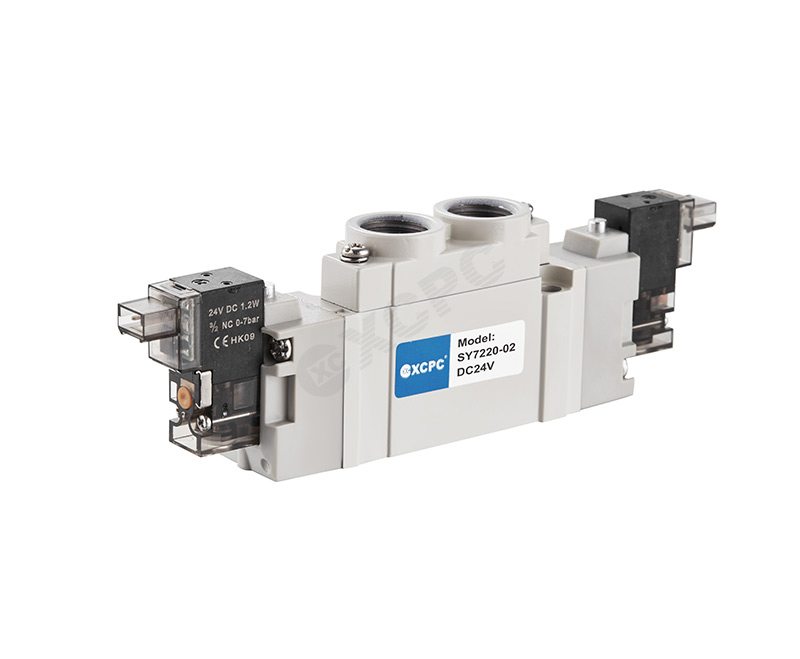

| Model | SY7120-02 | SY7220-02 | SY7320-02 | SY7420-02 | SY7520-02 |
| Function Enginery | Single-head Double-position | Double-head Double-position | Double-head Three-position Close Type | Double-head Three-position Exhaust Type | Double-head Three-position Pressure Type |
| Cv Valve(P-A/B) | 1.15 | 0.84 | 0.74 | 1.36 | |
| Cv Valve(A/B-R/S) | 1.05 | 0.75 | 1.15 | 0.66 | |
| Joint Pipe Bore | G1/4" | ||||
| Working Pressure | 0.15~0.7MPa | 0.2~0.7MPa | |||
| Working Medium | 40 Micron Filtered Air | ||||
| Motion Pattern | Inner Guide Type | ||||
| Highest Action Frequency | 8cycle/Second | 5cycle/Second | |||
| Response Time(ms) | 31 below | 50 below | |||
| Operating Temperature | -5~60℃ | ||||
Accurate requlation of an optimal air fl...
Accurate regulation of an optimal airflo...
One-Touch push-to-connect configuration ...
