LB Type Foot Bracket

Series: LB Type Foot Bracket

Download PDF Inquily now

Sub Series Of Standard Cylinder Accessories

8Results

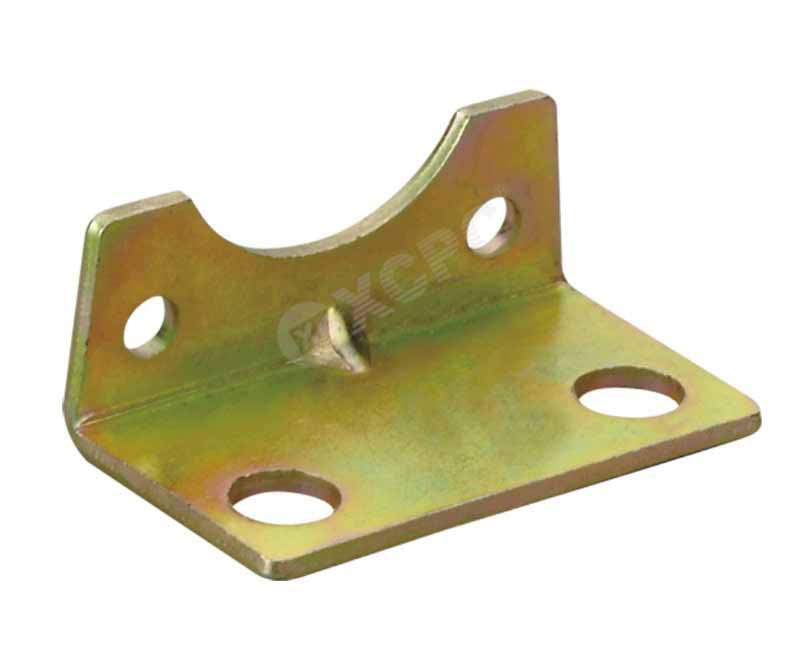

LB Type Foot Bracket

FA/FB Type Flange

CA Type Single Earring

CB+Pin Type Double Earring

Y+Pin Type Joint

I Type Joint

TC Type

TC-M Type

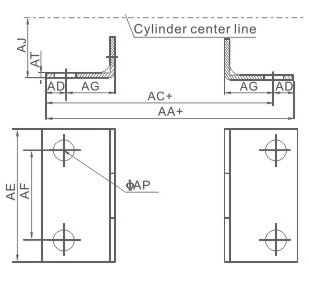

Overall Dimensions

Symbol/Bore	32	40	50	63	80	100	125	160	200
AA	153	169	173	184	199	210	249	328	380
AC	134	140	149	158	167	174	213	288	320
AD	9.5	14.5	12	13	16	18	18	20	30
AE	50	57	68	80	97	112	140	180	220
AF	33	36	47	56	70	84	90	115	135
AG	20.5	23.5	28	31	30	30	45	60	70
AJ	28	30	36.5	41	49	57	90	115	135
AP	9	12	12	12	14	14	16	18	22
AT	3	3	3	3	4	4	8	8	10
