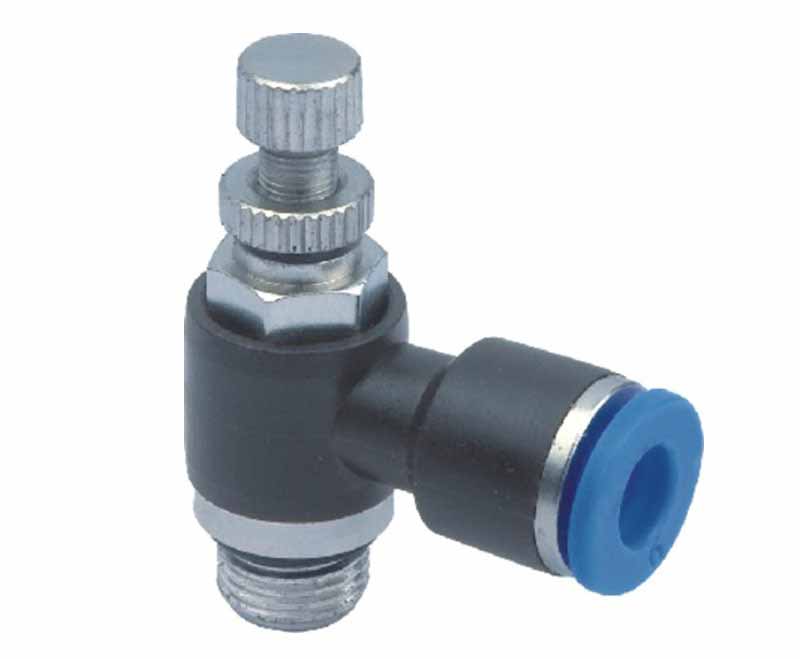

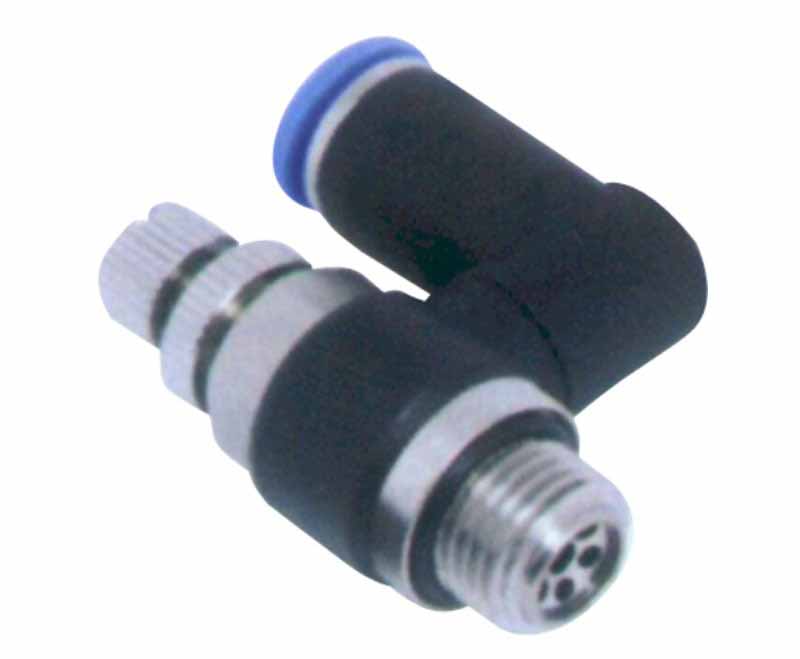

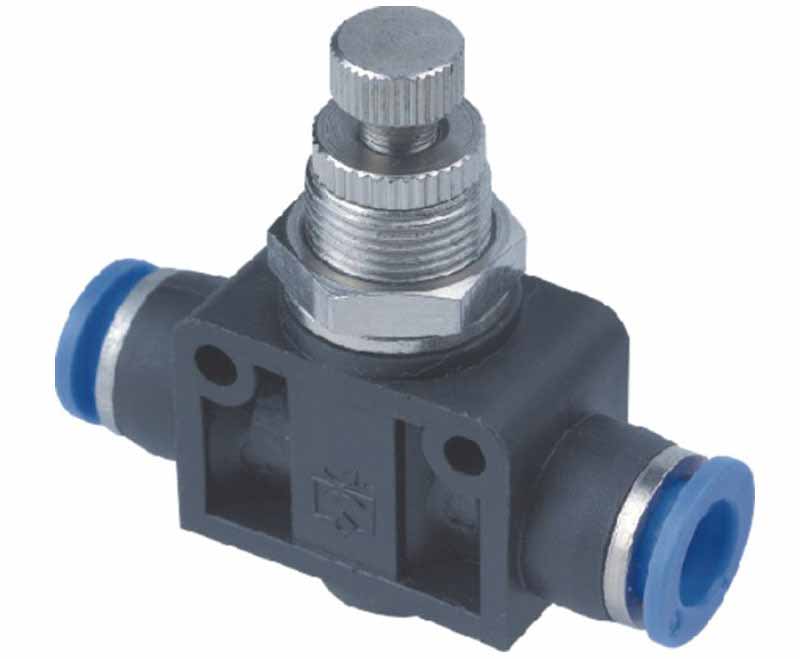

Series: Speed Controls
Accurate regulation of an optimal airflow rate for precise motioncontrol
Compact and space-saving configuration provides a functionally wide range of airflow rates.
Available in control method type for metering of unidirecrional airflow either entering into or exhausting out of a driving device.
|
Fliud Type
|
Air,Vacuum
|
|
Operating Pressure
|
0~10.2Kgf/cm2(0~1.0Mpa)
|
|
Negative Pressure
|
-750mm Hg(10Torr)
|
|
Operating Temperature Range
|
0~60℃
|
|
Tube Material
|
Nylon and Polyurethane
|
(1)Model Type
(2)Tube Outer Diameter(ΦD)
|
Metric Size
|
|||||||
|
Code
|
04
|
06
|
08
|
10
|
12
|
14
|
16
|
|
ΦD
|
4mm
|
6mm
|
8mm
|
10mm
|
12mm
|
14mm
|
16mm
|
(3)Thread Type & Size
|
|
|||||||||||||||||||||
|
G(PF)Thread
|
||||
|
Code
|
G01
|
G02
|
G03
|
G04
|
|
Size
|
G1/8"
|
G1/4"
|
G3/8"
|
G1/2"
|
Accurate requlation of an optimal air fl...
Accurate regulation of an optimal airflo...
One-Touch push-to-connect configuration ...
