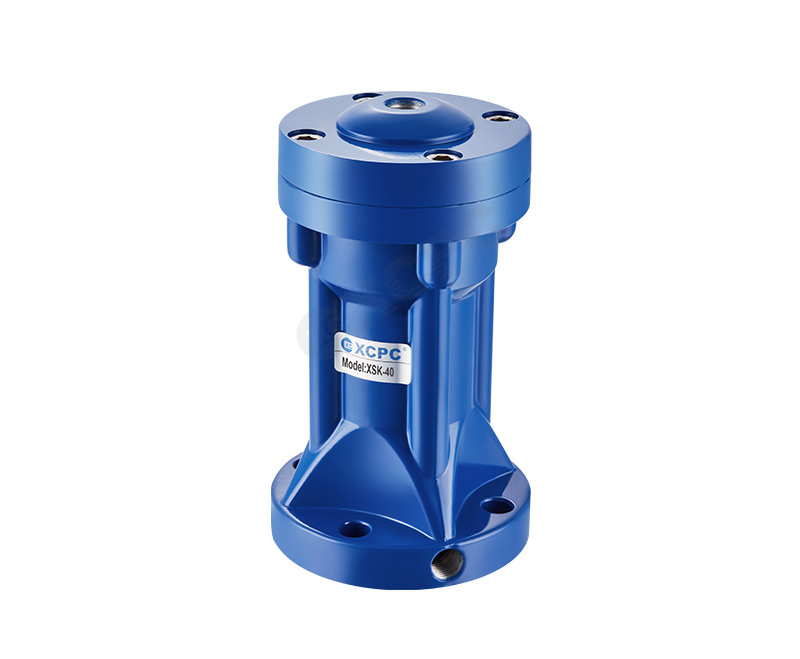

Series: XSK Series Pneumatic Precussion Hammer
The main characteristics are: magnetic impact of large powder faling efect; air consumption,low operating cost, energy-saving effect is goof, percussion interval adjustable; quality,reliable, low failure rate; structure is simple, easy removal: innovative designs, chic; pistonimpate resistance,(can be customized explosion proof). Widely used in pesticidespharmaceuticals, chemicals, cement, dyes, pigments, food, electronics, building materials.mining, environmental protection and other industries, is powerful powder processing lineauxiliary equipment.

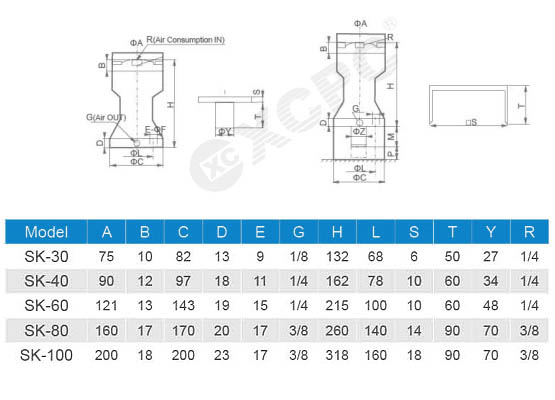

| Model | Operating pressure(MPa) | Air Consumption(L/min) | Wallop kgm/sec |
| XSK-30 | 0.3-0.7 | 0.028 | ~0.75 |
| XSK-40 | 0.3-0.7 | 0.082 | ~2.2 |
| XSK-60 | 0.3-0.7 | 0.228 | ~7.4 |
| XSK-80 | 0.4-0.5 | 0.455 | ~16.4 |
| XSK-100 | 0.5-0.7 | 1.012 | ~30.0 |
