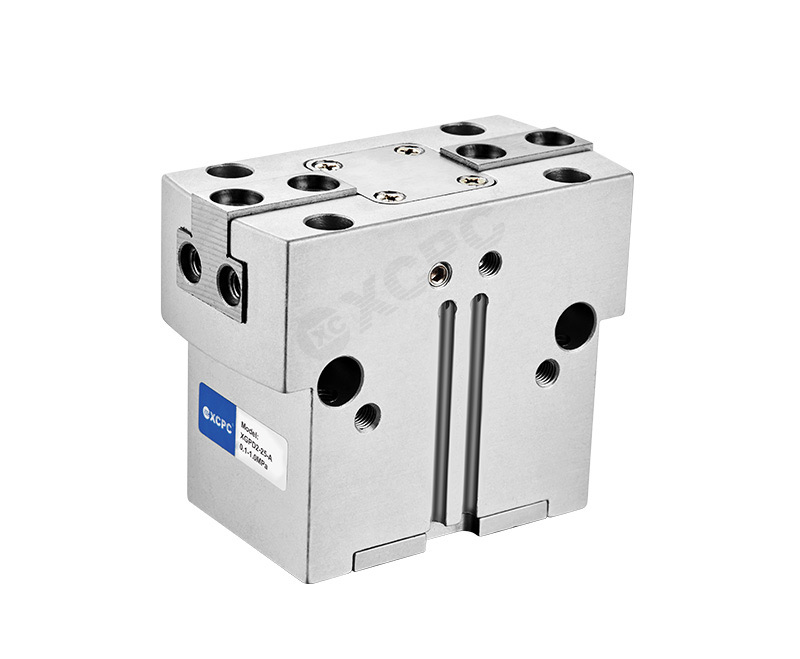

XGPD Series Sealed Parallel Gripper

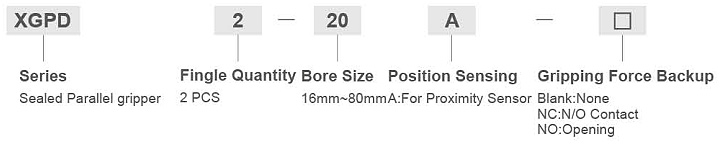

Series: XGPD Series Sealed Parallel Gripper

Operating Medium	Compressed Air
Mode Of Operation	Double-Acting
Max.Operating Pressure	0.8MPa
Operating Pressure For Sealing Air	0~0.5MPa
Ambient Temperature	5-60℃

Size(mm)		10	20	25	35	40	50	63	80
Operating Medium		Compressed Air
Mode Of Operation		Double-Acting
Max.Operating Pressure		0.8MPa
Min.Operating Pressure	XGPD-...-A	0.3MPa
	XGPD-...-A-G	0.4MPa
Operating Pressure For Sealing Air		0~0.5MPa
Ambient Temperature		5-60℃
Repetition Accuracy		≤0.03mm	≤0.04mm		≤0.05mm
Max.Interchangeability		≤±0.2mm
Max.Operating Frequency		≤3Hz				≤2Hz
Rotational Symmetry		<Φ0.2mm
Port Size		M5					G1/8"		G1/4"
Port Size, Sealing Air		M3		M5
Port Size, Lubrication Nipple		M3		M5
