XAF 8000-9000 Series Air Fliter

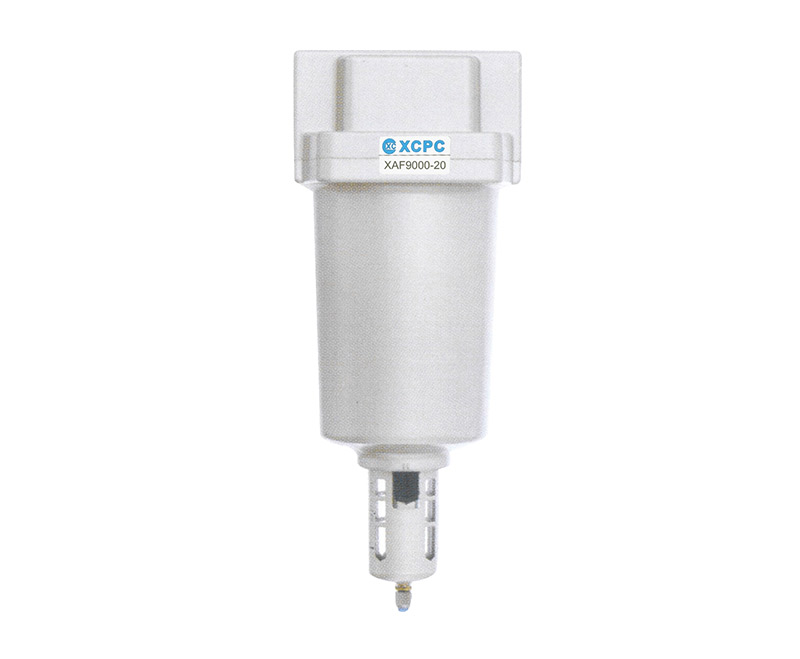

Series: XAF 8000-9000 Series Air Fliter

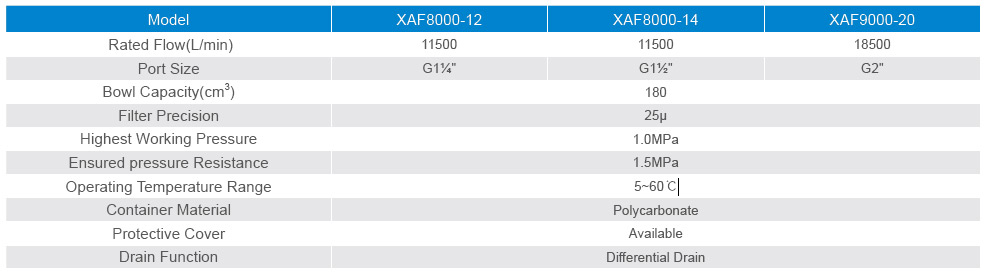

 Bowl Capacity(cm3)
|
180
|
|||||||
|
Filter Precision
|
25μ
|
|||||||
|
Highest Working Pressure
|
1.0MPa
|
|||||||
|
Ensured pressure Resistance
|
1.5MPa
|
|||||||
|
Operating Temperature Range
|
5~60℃
|
|||||||
Under the circumstance that the supply pressure is 0.7MPa(7.1kgf/cm^2)and step down is 0.5MPa(0.5kgf/cm^2)
Accurate requlation of an optimal air fl...
Accurate regulation of an optimal airflo...
One-Touch push-to-connect configuration ...
