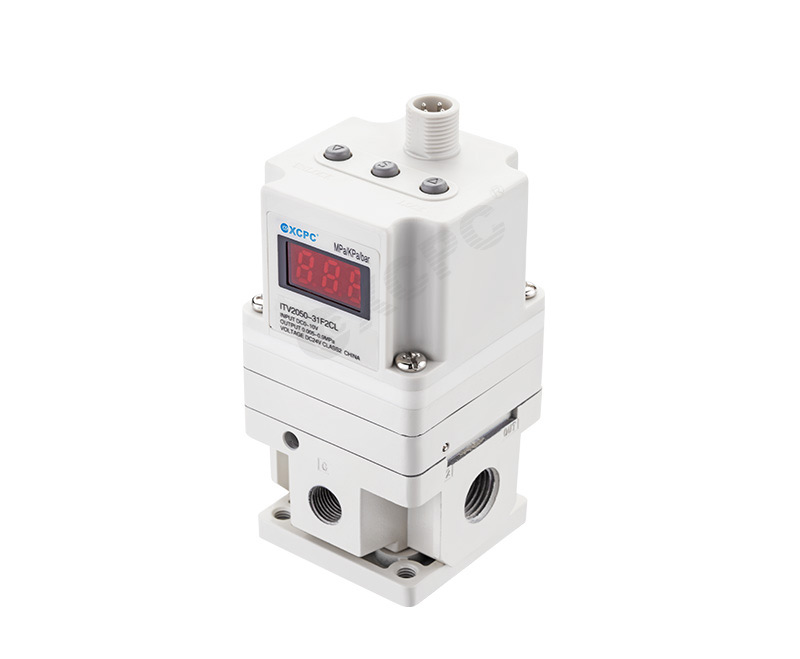

XITV Series Electro Pneumatic Requlator

Series: XITV Series Electro Pneumatic Requlator

Linearity	±1%6 FS. or less
Hysteresis	0.5% FS. or less
Repeatability	±0.5% F.S. or less
Sensitivity	0.2% FS. or less
Ambient and fluid temperatures	0 to 50°C(No condensation)
Enclosure	IP65

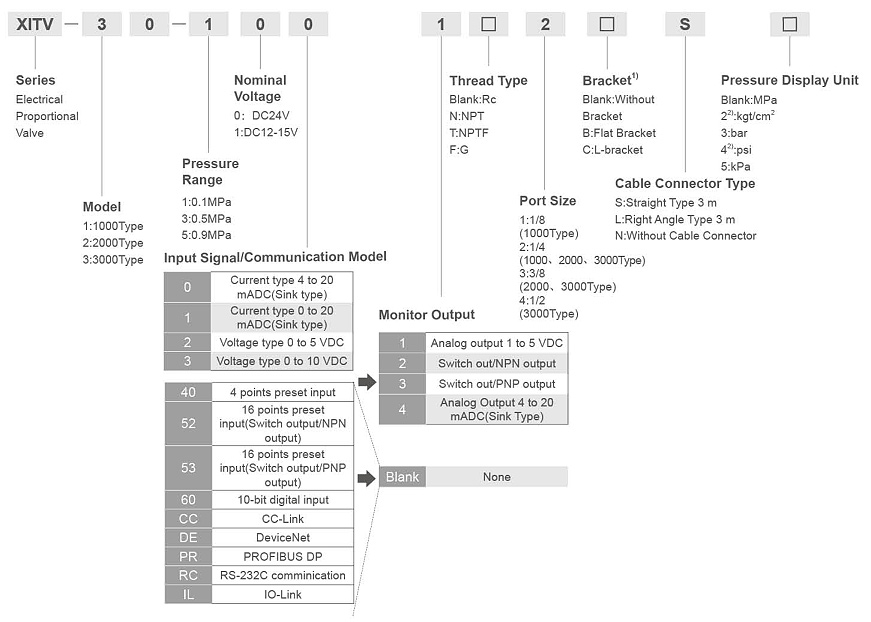

Model		ITV101口	ITV103 口	ITV105 口
		ITV201口	ITV203 口	ITV205 口
		ITV301口	ITV303 口	ITV305 口
Min.Supply Pressure		Set pressure+0.1MPa
Max.Supply Pressure		0.2MPa	0.1MPa
Set Pressure Range		0.005 to 0.1 MPa	0.005 to 0.5 MPa	0.005 to 0.9 MPa
Power Supply	Voltage	24 VDC ±10%. 12 to 15 VDC
	Current Consumption	Power Supply Voltage 24 VDC type:0.12 A or less Power Supply Voltage 12 TO 15VDC Type:0.18 A or less
Input Signal	Current Type	4 to 20 mADC,0 TO 20 mADC(Sink Type)
	Voltage Type	0 to 5 VDC.0 TO 10 VDC
	Preset Input	4 Points(Negative Common),16 points(No Common Polarity)
	Digital input	10 bits(Parallel)
Input lmpedance	Current Type	250 Ω or less
	Voltage Type	Approx.6.5kΩ
	Preset Input	Power Supply Voltage 24 VDC Type:Approx.4.7kΩ Power Supply Voltage 12 VDC Type:Approx.2.0kΩ
	Digital input	Approx.4.7kΩ
Output Signal (Monitor Output)	Analog Output	1 to 5 VDC (Out put impedance: Approx. 1 kΩ) 4 to 20 mADC (Sink type) (Output impedance: 250 Ω or less)
	Switch Output	outout accuracy +6% F.S. or less NPN open collector output: Max. 30 V, 80 mA PNP open collector output Max. 80 mA
Linearity		±1%6 FS. or less
Hysteresis		0.5% FS. or less
Repeatability		±0.5% F.S. or less
Sensitivity		0.2% FS. or less
Temperature characteristics		±0.12% FS/℃ or less
Output pressure display	Accuracy	±2% F.S.+1 digit or less
	Min. unit	MPa:0.001,kgf/cm2:0.01.bar0.01.psi: 0.1.kPa: 1
Ambient and fluid temperatures		0 to 50°C(No condensation)
Enclosure		IP65
