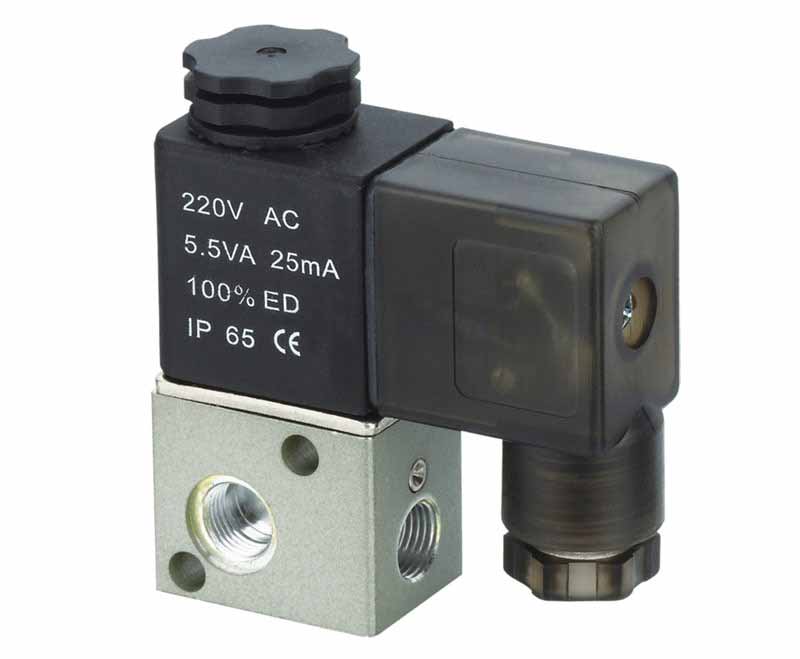

Series: 3V1 Series Solenoid Valve
 Working Medium
|
40 Micron Filtered Air
|
|
Motion Pattern
|
Direct Drive Type
|
|
Ambient Temperature
|
-10~+60℃
|
|
Gas Temperature
|
5~60℃
|
|
Working-Pressure
|
0~0.8MPa
|
|
Max.Pressure Resistance
|
1.2MPa
|
|

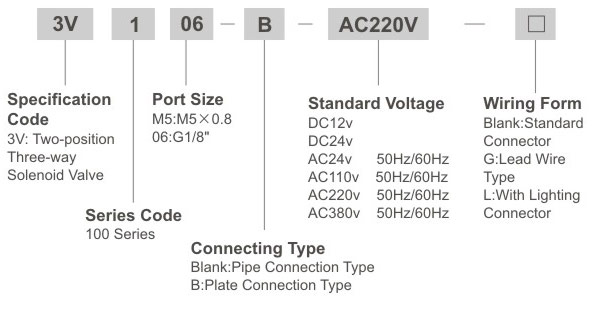

Model
|
3V1-M5
|
3V1-06
|
|
Working Medium
|
40 Micron Filtered Air
|
|
|
Motion Pattern
|
Direct Drive Type
|
|
|
Joint Pipe Bore
|
M5
|
1/8"
|
|
Ambient Temperature
|
-10~+60℃
|
|
|
Gas Temperature
|
5~60℃
|
|
|
Air Outlet Diameter
|
1.0mm
|
|
|
Lubrication
|
Not Necessary
|
|
|
Working-Pressure
|
0~0.8MPa
|
|
|
Max.Pressure Resistance
|
1.2MPa
|
|
|
Power Consumption
|
AC:4.5VA DC:3.0W
|
|
|
Protect Class
|
IP65
|
|
|
Power Connection Form
|
Gorl
|
|
|
Material of Body
|
Aluminum alloy
|
|
|
Highest Action Frequency
|
10Cycle / Sec
|
|
|
Insulation
|
F Class
|
|
|
Voltage Range
|
±10%
|
|
|
Shortest Excitation Time
|
0.05 Second
|
|
Accurate requlation of an optimal air fl...
Accurate regulation of an optimal airflo...
One-Touch push-to-connect configuration ...
