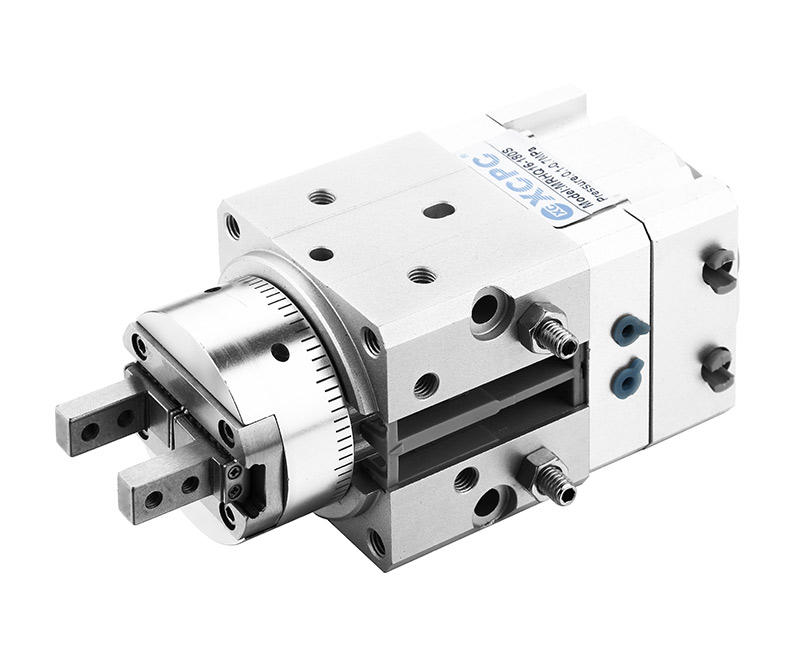

MRHQ Series Rotary Gripper(Angular Type)
Series: MRHQ Series Rotary Gripper(Angular Type)

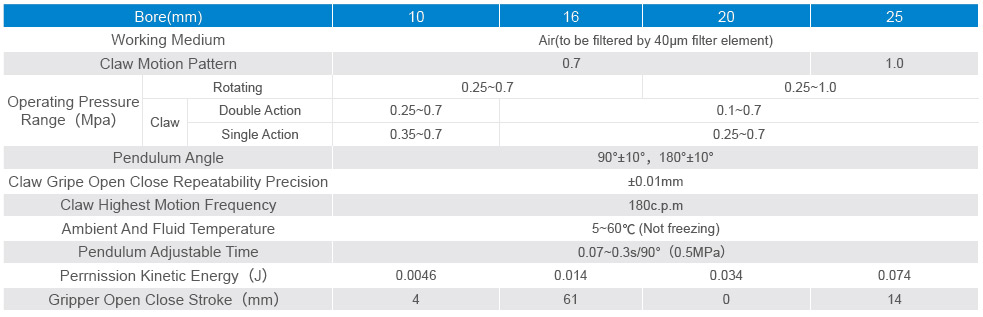

 Working Medium:
|
Air(to be filtered by 40μm filter element) |
|
Pendulum Angle:
|
90°±10°，180°±10° |
|
Claw Highest Motion Frequency:
|
180c.p.m |
|
Ambient And Fluid Temperature:
|
5~60℃ (Not freezing) |
|
Pendulum Adjustable Time:
|
0.07~0.3s/90°(0.5MPa) |
Accurate requlation of an optimal air fl...
Accurate regulation of an optimal airflo...
One-Touch push-to-connect configuration ...
