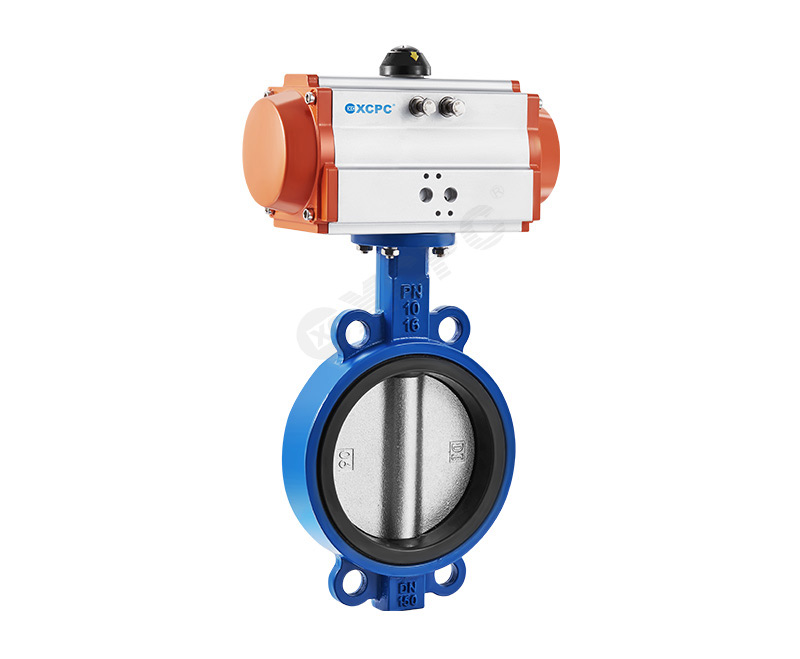

XDF Series Pneumatic Wafer Butterfly Valve

Series: XDF Series Pneumatic Wafer Butterfly Valve

Nominal Diameter DN(mm)	DN50-800
Working Media	Air,Water,Steam,Gas,Oil
Air supply pressure	0.4-0.7MPa
Air connection	G1/4"、G1/8"、G3/8"、G/2"
Ambient temperature	-30-70℃

Download PDF Inquily now

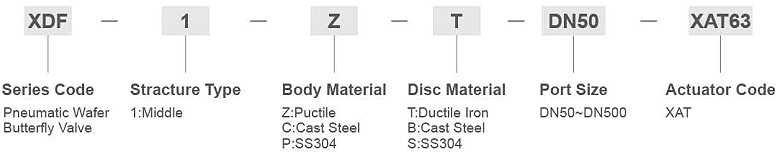

Ordering Code

Specification

Nominal Diameter DN(mm)		DN50-800
Nominal pressure	PN(MPa)	0.6	1.0	1.6
Test Pressure	Strengh Test	0.9	1.5	2.4
	Seal Test	0.66	1.1	1.76
	Low Pressure Seal Test	0.5-0.7
Working Media		Air,Water,Steam,Gas,Oil
Actuator model		XAT Series Single Double Action Pneumatic Actuator
Air supply pressure		0.4-0.7MPa
Air connection		G/14"、G1/8"、G3/8"、G12"
Ambient temperature		-30-70℃
Action form		Single Action, Double Action

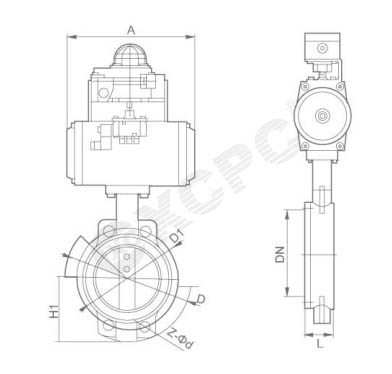

Overall Dimensions

DN(mm) Nominal Diameter	L	D1	D	Z-Φd	H1	A
50	43	125	165	4-18	80	150
65	46	145	185	4-18	89	175
80	46	160	200	8-18	95	185
100	52	180	220	8-18	114	210
125	56	210	250	8-18	127	265
150	56	240	285	8-22	139	270
200	60	295	340	8-22	175	310
250	68	350	395	12-22	203	390
300	78	400	445	12-23	242	460
350	78	460	505	16-23	267	525
400	88	515	565	16-28	309	532
450	108	565	615	20-28	328	532
500	127	620	670	20-28	361	602
