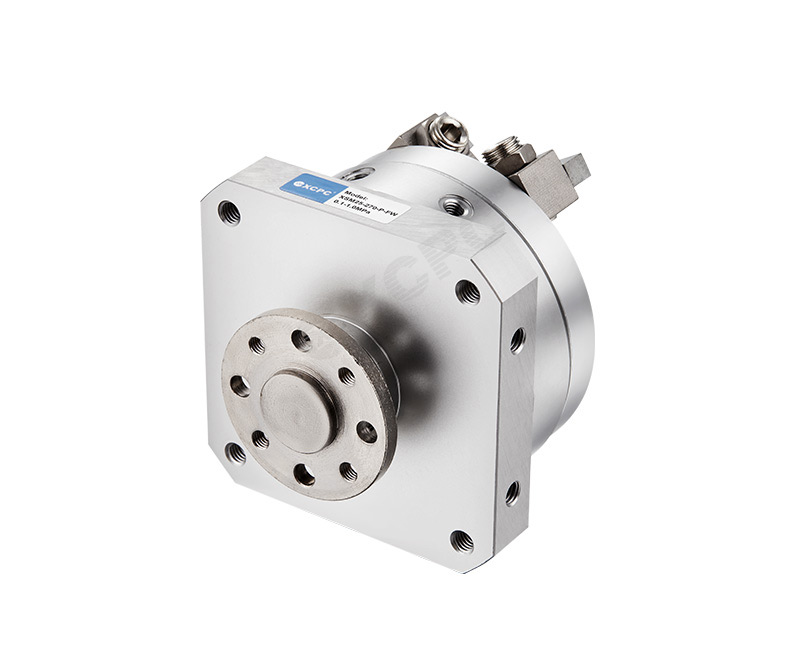

XSM Series Semi-Rotary Cylinder

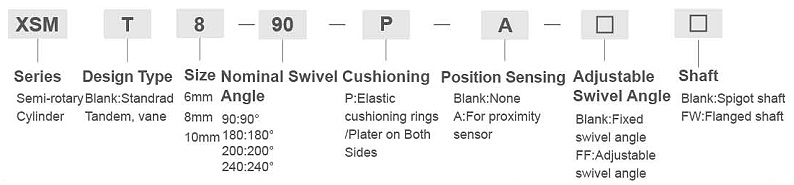

Series: XSM Series Semi-Rotary Cylinder

Operating Medium	Compressed air
Ambient Temperature	0~60℃
Storage Temperature	20℃
Cushioning	Elastic cushioning rings/plates at both ends
Cushioning Angle	0.5°
Port Size	M3

Size(mm)		6	8	10
Operating Medium		Compressed air
Operating Pressure	XSM	0.35~0.8MPa	0.35~0.8MPa	0.25~0.8MPa
	XSM-T	0.4~0.8MPa	0.4~0.8MPa	0.35~0.8MPa
Ambient Temperature		0~60℃
Storage Temperature		20℃
Cushioning		Elastic cushioning rings/plates at both ends
Swivel Angle	XSM	90° or 180°	90° or 180°	90°,180° or 240°
	XSM--FF	0~180°		0~200°
Max.Swivel Frequency At 0.6 Mpa		3Hz		3Hz (at 240°: 2 Hz)
Cushioning Angle		0.5°
Air Consumption At Swivel Angle Of 90° And 0.6 Mpa	XSM	0.6cm³	0.7cm³	5.5cm³
	XSM-T	1.2cm³	1.4cm³	11cm³
Port Size		M3
