Bore(mm)

20

32

40

50

Motion Pattern

Double acting,Double acting with spring loaded,Single acting(Spring extend)

Fluid

Air

Ensured Pressure Resistance

1.5Mpa(15.3kgf/cm2)

Max.pressure

1.0Mpa(10.2kgf/cm2)

Ambient and fluid temperature

-10~+70℃:(Without auto switch:No freezing)+60℃

Buffering

(Rubber bumper)

Tolerance of stroke

+1.4 (mm)

*Lubrication

Not required

Mounting

Through-hole,Both ends tapped common

Port size

RC(PT1/8)

Model

B

N

Q1

R

RSQA20

45

5.5

M6×1

10

RSQA32

48

5.5

M6×1

10

RSQA40

52.5

5.5

M6×1

10

RSQA50

54

6.6

M8×1.25

14

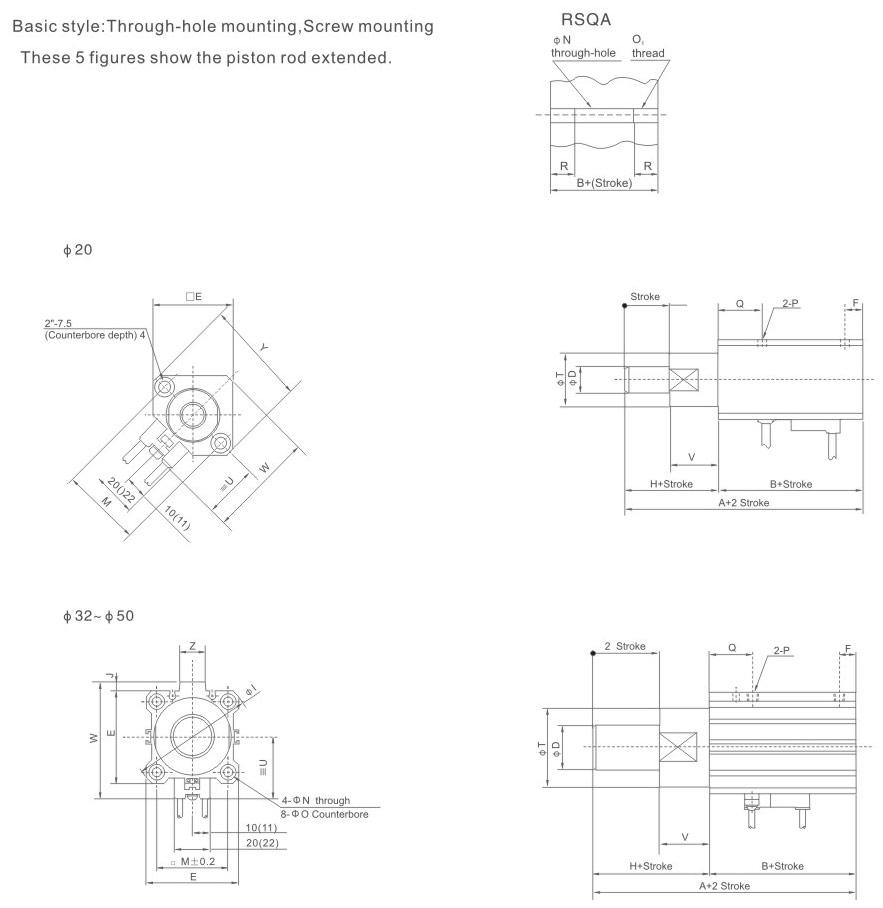

Bore(mm)

A

B

D

E

F

G

H

I

MJ

N

O Counerbore

P

Q

T

U

V

W

Y

Z

20

67

45

12

36

8

4

22

-

-

36

5.5

9 depth 7

Rc 1/8

20

24

24.5

22

48

47

-

32

68

48

20

45

7.5

8

20

60

4.5

34

5.5

9 depth 7

Rc 1/8

20

36

31.5

20

58.5

-

14

40

80.5

52.5

25

52

8

10

28

69

5

40

5.5

9 depth 7

Rc 1/8

24.5

44

35

28

66

-

14

50

82

54

25

64

8

10

28

86

7

50

6.6

11 depth 8

Rc 1/8

24.5

56

41

28

80

-

19

Bore(mm)

20

32

40

50

Mounting

●

●

Built-in magnet

●

Piping

RC 1/8

Φ6/4

Action

Double acting Single acting(Single extend) , Double acting with spring loaded

Rod end configuration

●

●

●

-

Bore size(mm)

Rod end configuration

20

10.15.20

10.15.20

-
10.15.20

32

40

20.25.30

20.25.30

20.25.30

50
