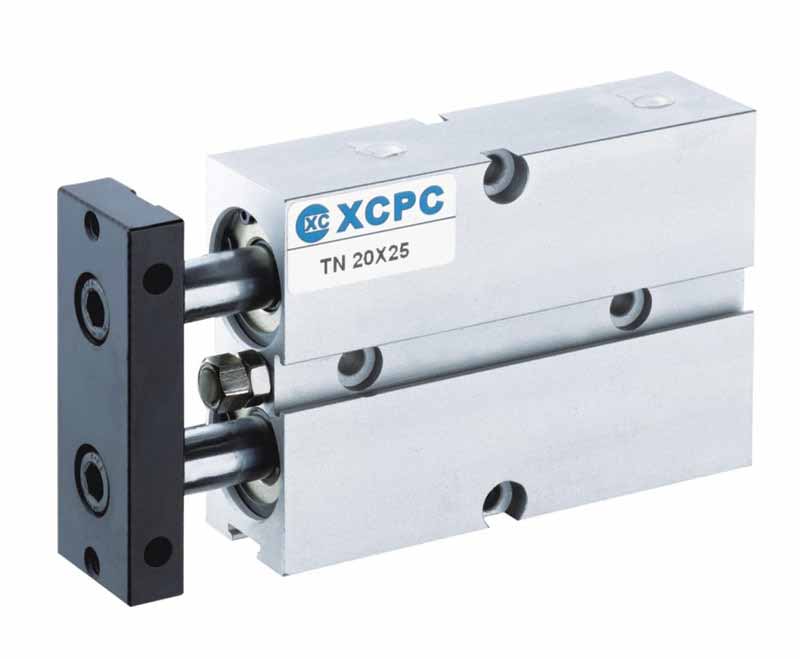

TN Series Double-Shaft Cylinder
Series: TN Series Double-Shaft Cylinder
|
|
Double action |
|
|
Air |
|
|
1~9kgf/cm2 |
|
|
10.5kgf/cm2 |
|
|
-5~+70℃ |
|
|
100~500mm/s |
|
Bore(mm) |
10 |
16 |
20 |
25 |
32 |
|
Motion Pattern |
Double action |
||||
|
Working Medium |
Air |
||||
|
Operating Voltage Range |
1~9kgf/cm2 |
||||
|
Ensured Pressure Resistance |
10.5kgf/cm2 |
||||
|
Operating Temperature Range |
-5~+70℃ |
||||
|
Operating Speed Range |
100~500mm/s |
||||
|
Adjustable Stroke |
-10~0mm |
||||
|
Cushion Type |
Adjustable Cushion |
||||
|
Non-rotating Precision |
0.4℃ |
0.3℃ |
|||
|
Port Size |
M5×0.8 |
G1/8" |
|||
|

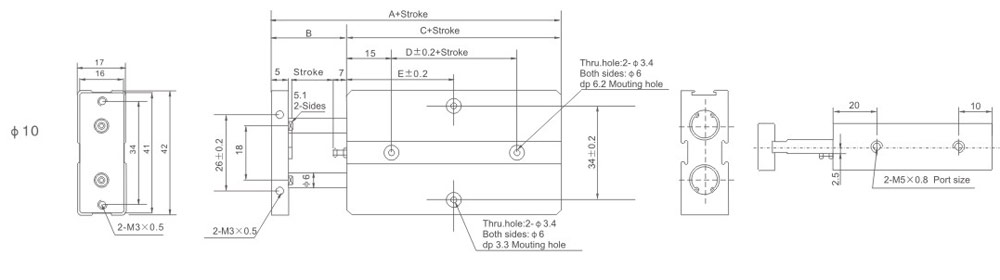

Bore |
A |
B |
C |
D |
E |
||||||
|
Item |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
||||
|
10 |
63 |
12 |
51 |
10 |
30 |
30 |
35 |
40 |
45 |
50 |
55 |
|
Bore |
A |
B |
C |
D |
E |
F |
G |
H |
I |
|||||||||||
|
Item |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
125 |
150 |
||||||||
|
16 |
68 |
15 |
53 |
20 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
87.5 |
100 |
8 |
47 |
6 |
24 |
|
20 |
78 |
20 |
58 |
20 |
35 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
87.5 |
100 |
10 |
55 |
9 |
28 |
|
25 |
81 |
19 |
62 |
30 |
40 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
92.5 |
105 |
10 |
66 |
8 |
34 |
|

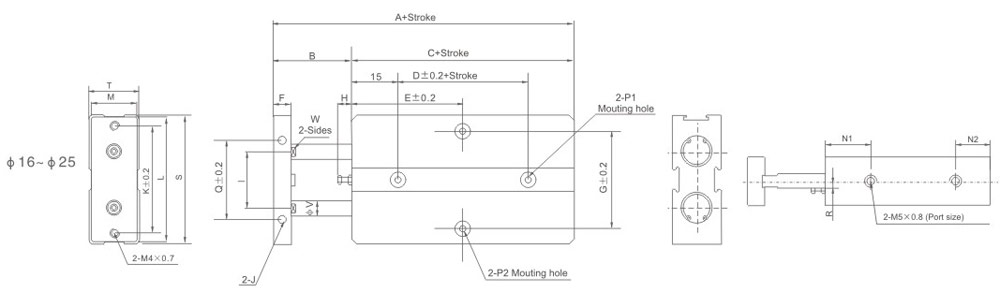

Bore/Size
|
J
|
K
|
L
|
M
|
N1
|
N2
|
P1
|
P2
|
Q
|
R
|
S
|
T
|
V
|
W
|
|
16
|
M4×0.7/dp 5
|
47
|
53
|
20
|
22
|
11
|
Both size :φ7.5(dp) 7.2mm |
Both size:φ8(dp) 4.4mm |
34
|
3
|
54
|
21
|
8
|
6.1 |
|
20
|
M4×0.7/dp 5
|
55
|
61
|
24
|
25
|
12
|
Both size:φ7.5(dp) 7.2mm |
Both size:φ8(dp) 4.4mm |
44
|
3.5
|
62
|
25
|
10
|
8.1
|
|
25
|
M4×0.7/dp 6
|
66
|
72
|
29
|
27
|
12
|
Both size:φ7.5(dp) 7.2mm |
Both size:φ8(dp) 4.4mm |
56
|
7
|
73
|
30
|
12
|
10.2
|
|

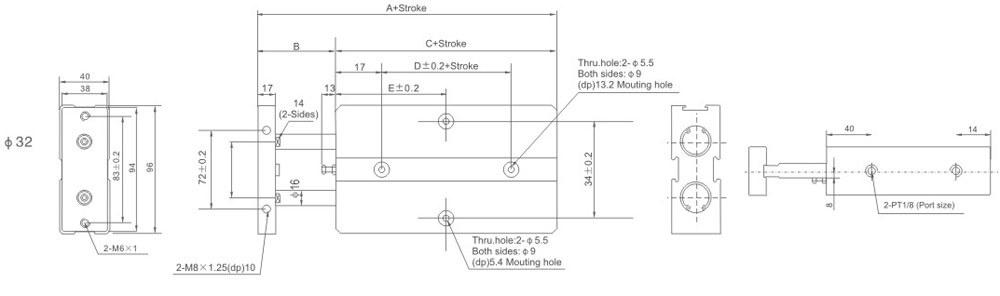

Bore |
A |
B |
C |
D |
E |
|||||||||||
|
Item |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
125 |
150 |
||||
|
32 |
108 |
30 |
78 |
35 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
102.5 |
115 |
