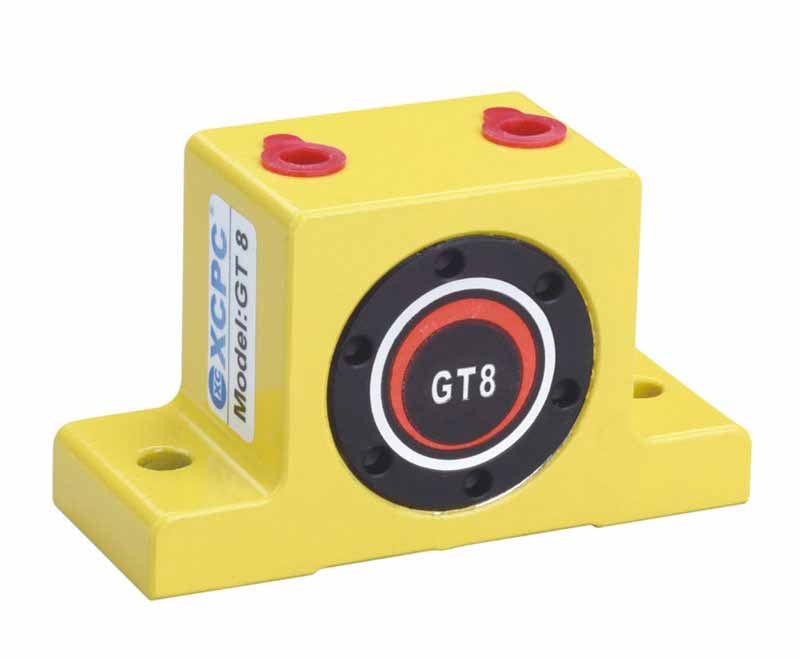

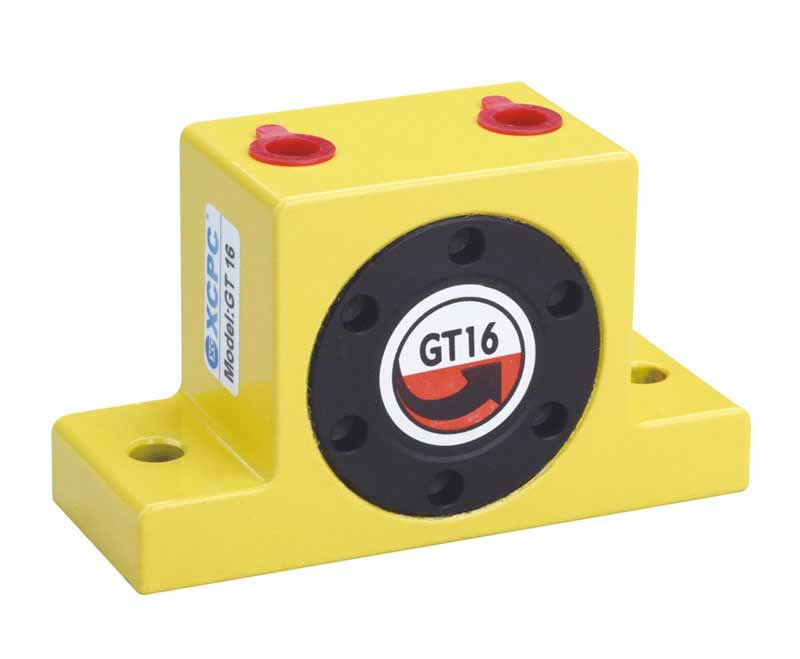

Series: XGT Series Pneumatic Gear Vibrator
Vibration intensity can be adjusted based on air pressure, can immediately start, stop, fast, low-noise, vibration force, security.
Application
Feed material conveyor,vibrating screening,vibrating hopper,to help fillpackging,foundry sand mold vibration.
Works
Copper eccentric gear installed counterweight impact ai intake charge intothe gear thrust gear rotates,the eccentric rotation of the centrifugal weightwith vibration,the gear driven by a bearing,low noise.
|
Model
|
Frequency(V.P.M)
|
Vibration power(N)
|
Air consumption(min)
|
||||||
|
0.2Mpa
|
0.4Mpa
|
0.6Mpa
|
0.2Mpa
|
0.4Mpa
|
0.6Mpa
|
0.2Mpa
|
0.4Mpa
|
0.6Mpa
|
|
|
XGT-8
|
34.850
|
42.000
|
45.500
|
980
|
2.100
|
2.800
|
46
|
80
|
112
|
|
XGT-10
|
27.500
|
35.000
|
37.500
|
840
|
1.390
|
2.400
|
46
|
80
|
112
|
|
XGT-13
|
26.000
|
30.000
|
33.000
|
1.400
|
2.440
|
3.730
|
120
|
200
|
290
|
|
XGT-16
|
17.000
|
21.500
|
24.000
|
1.220
|
2.090
|
3.460
|
120
|
200
|
290
|
|
XGT-20
|
17.000
|
20.000
|
23.000
|
2.170
|
4.040
|
5.520
|
185
|
325
|
455
|
|
XGT-25
|
12.000
|
15.500
|
17.000
|
2.120
|
3.510
|
5.070
|
185
|
325
|
455
|
|
XGT-32
|
13.000
|
14.000
|
16.000
|
3.380
|
5.430
|
7.540
|
330
|
530
|
745
|
|
XGT-36
|
7.800
|
10.000
|
13.000
|
3.300
|
5.000
|
7.150
|
330
|
530
|
745
|
|
XGT-40
|
7.500
|
8.800
|
9.500
|
4.350
|
7.350
|
9.850
|
408
|
428
|
680
|
|
XGT-40
|
5.800
|
7.500
|
9.700
|
4.950
|
7.750
|
10.6007
|
408
|
428
|
680
|
|
XGT-60
|
4.758
|
6.530
|
8.515
|
5.700
|
9.800
|
11.150
|
505
|
600
|
920
|
|

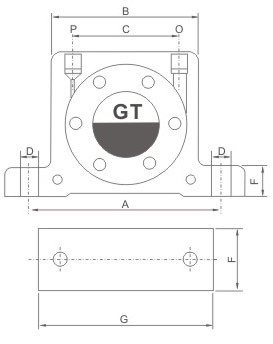

Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
P/O
|
|
XGT-8
|
68
|
50
|
28
|
7
|
12
|
35
|
86
|
1/8
|
|
XGT-10
|
68
|
50
|
28
|
7
|
12
|
35
|
86
|
1/8
|
|
XGT-13
|
90
|
65
|
39
|
9
|
16
|
43
|
113
|
1/4
|
|
XGT-16
|
90
|
65
|
39
|
9
|
16
|
43
|
113
|
1/4
|
|
XGT-20
|
104
|
82
|
56
|
9
|
17
|
56
|
128
|
1/4
|
|
XGT-25
|
104
|
82
|
56
|
9
|
17
|
56
|
128
|
1/4
|
|
XGT-32
|
130
|
103
|
76
|
11
|
21
|
73
|
160
|
3/8
|
|
XGT-36
|
130
|
103
|
76
|
11
|
21
|
73
|
160
|
3/8
|
|
XGT-40
|
152
|
122
|
85
|
18
|
27
|
80
|
194
|
3/8
|
|
XGT-40
|
152
|
122
|
85
|
18
|
27
|
80
|
194
|
3/8
|
|
XGT-60
|
195
|
140
|
96
|
21
|
30
|
95
|
240
|
1/2
|
