Home > Products > Pneumatic cylinders > XFM Series Guide Rod cylinder > XFM Series Guide Rod cylinder

X

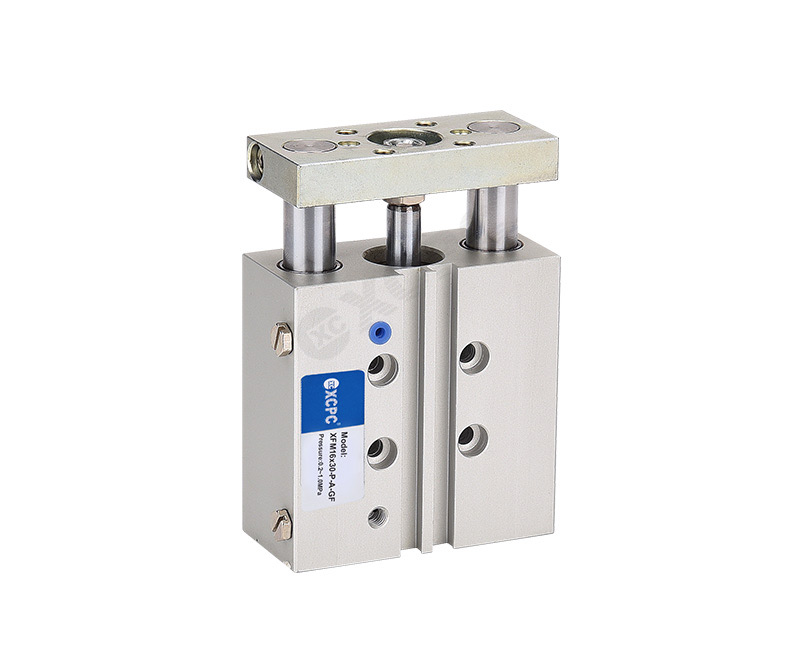

XFM Series Guide Rod cylinder

Series: XFM Series Guide Rod cylinder

Operating Medium

Compressed air

Operating Pressure(Mpa)

0.05~1Mpa

Ambient Temperature

-5~80℃

Cleanroom Class

5, 6, 8

Port Size

M3~G3/8"

Download PDF Inquily now

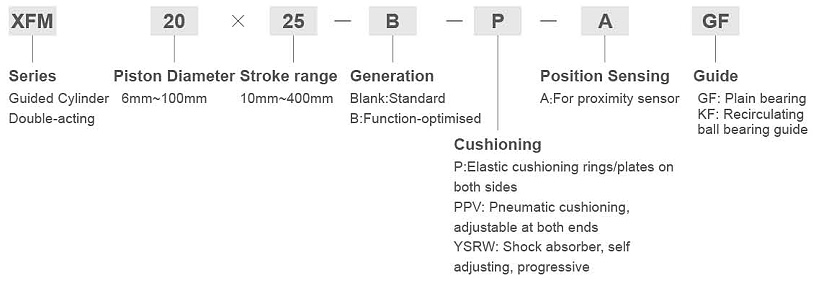

Ordering Code

Specification

Piston Diameter(mm)		6	10	12	16	20	25	32	40	50	63	80	100
Operating Medium		Compressed air
Operating Pressure(Mpa)		0.2~0.8	0.15~0.8	0.2~1			0.15~1			0.1~1		0.05~1
Ambient Temperature	XFM-..-GF	-10~60℃		-20~80℃
	XFM-...-KF	-		-5~60℃
Cleanroom Class	XFM-...-GF	-		8							6	-
	XFM-.-KF	-		5								-
Port Size		M3		M5			G1/8"			G114"		G3/8"
