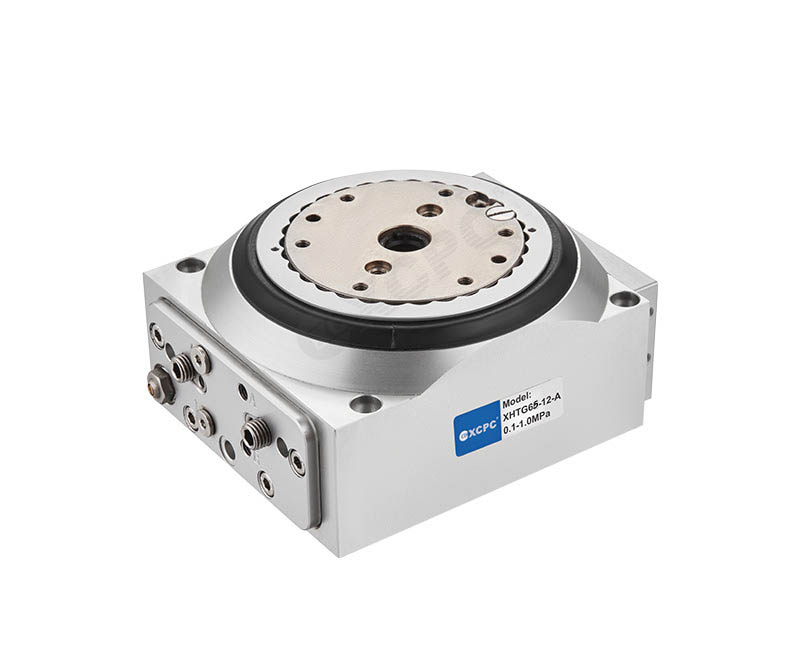

XHTG Series Rotary Indexing Table

Series: XHTG Series Rotary Indexing Table

Size(mm)	65	90	140	220
Operating Medium	Compressed air
Mode Of Operation	Double-acting
Operating Pressure	0.4~0.8MPa
Ambient Temperature	5~60°C
Storage Temperature	-20~80°C
Cushioning	Adjustable shock absorber stroke,hard characteristic curve
Indexing	2.3,.4.6.8.12.24		3.4.6,8,12.24
Theoretical Torque At 0.6MPa	2.1Nm	4.4Nm	18.1Nm	58.9Nm
Parallelism Of Plate	≤0.04mm
Axial Eccentricity Of Plate	≤0.02mm
Concentricity Of Plate	≤0.02mm
Repetition Accuracy Of Swivel Angle	≤0.03°
Max.Mass Moment Of Inertia	0.016kgm²	0.03kgm²	0.3kgm²	2.5kgm²
With Out Flow Control
Port Size	M5		G1/8"
