JM Series Mechanical Valve
SERIES: JM Series Mechanical Valve
JM Series Mechanical Valve
FEATURES
 Working Medium
|
40 Micron Filtered Air
|
|
Position and Way No.
|
0~0.8MPa
|
|
Port Size
|
G1/4"
|
|
Working-pressure Range
|
Two-position Three-way,Two-position Two-way
|
|
Operating Temperature
|
0~60℃
|

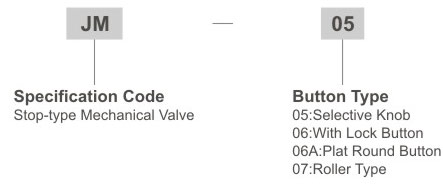

Ordering Code
Specification
|
Model
|

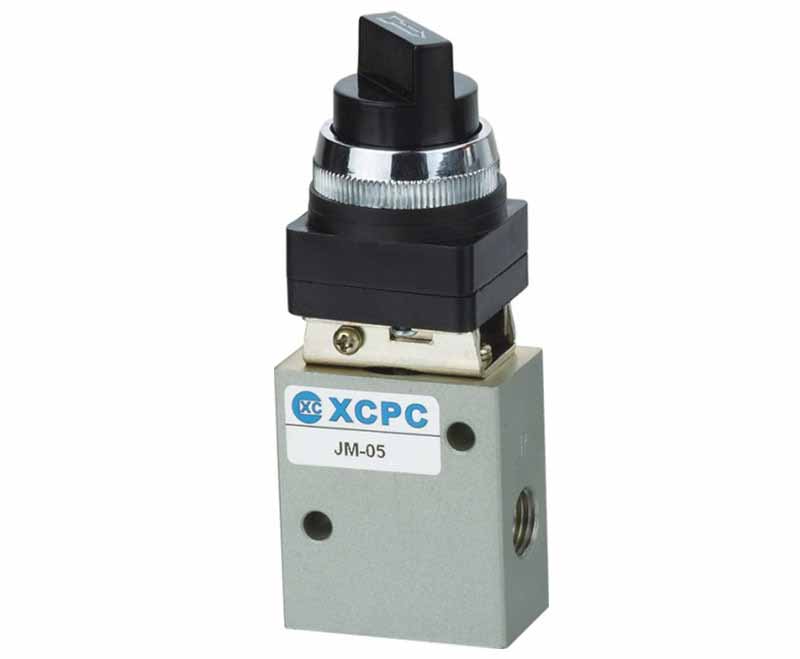

JM-05
|

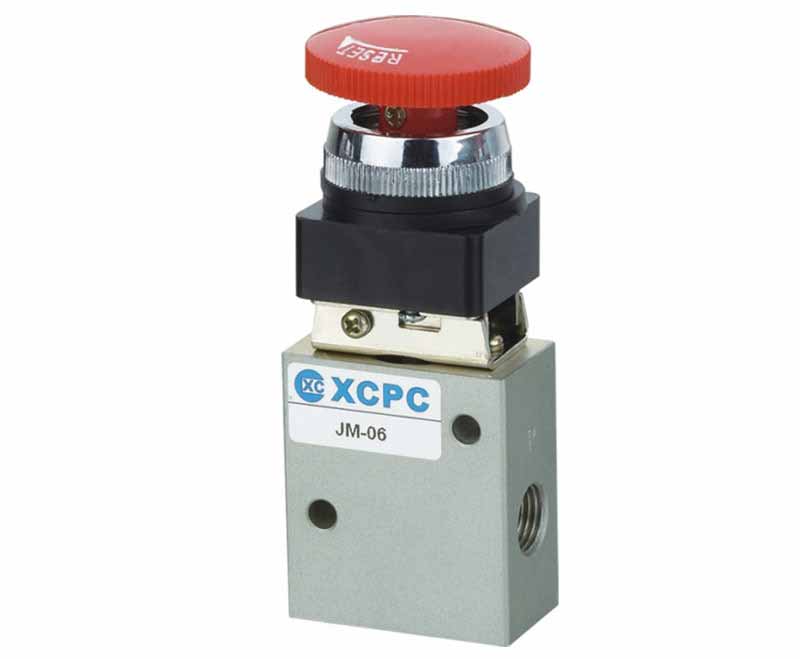

JM-06
|

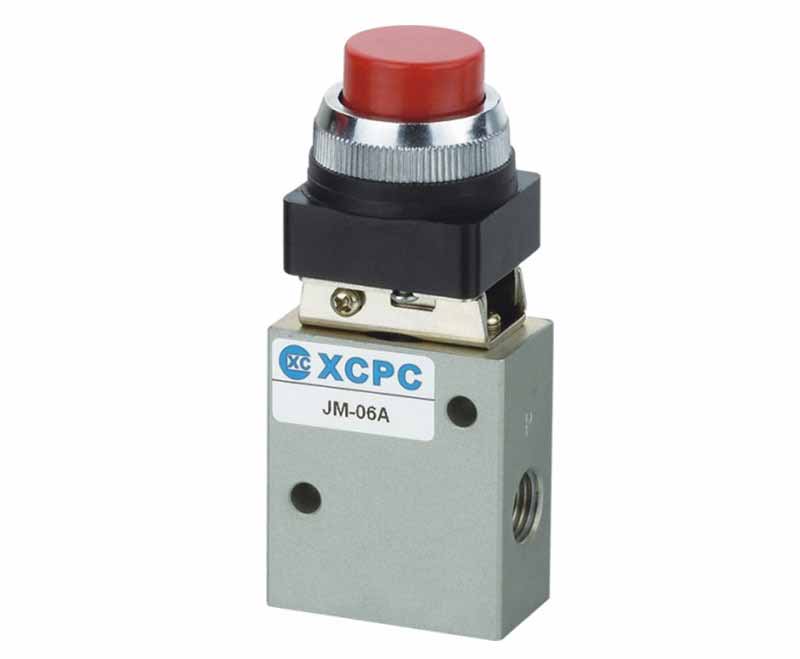

JM-06A
|

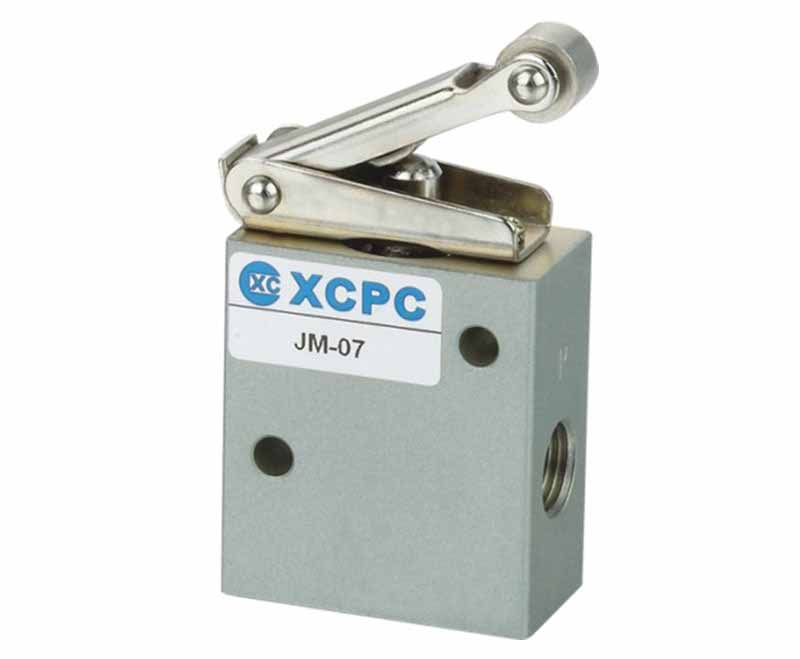

JM-07
|
|
Working Medium
|
40 Micron Filtered Air
|
|||
|
Position and Way No.
|
0~0.8MPa
|
|||
|
Port Size
|
G1/4"
|
|||
|
Working-pressure Range
|
Two-position Three-way,Two-position Two-way
|
|||
|
Operating Temperature
|
0~60℃
|
|||

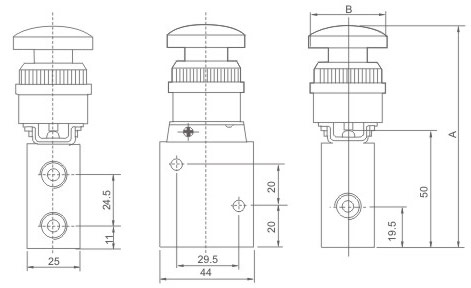

Overall Dimensions
|
Model
|
JM-05
|
JM-06
|
JM-06A
|
JM-07
|
|
A
|
114
|
111
|
96
|
84.5
|
|
B
|
36.5
|
39.5
|
39.5
|
42.5
|
