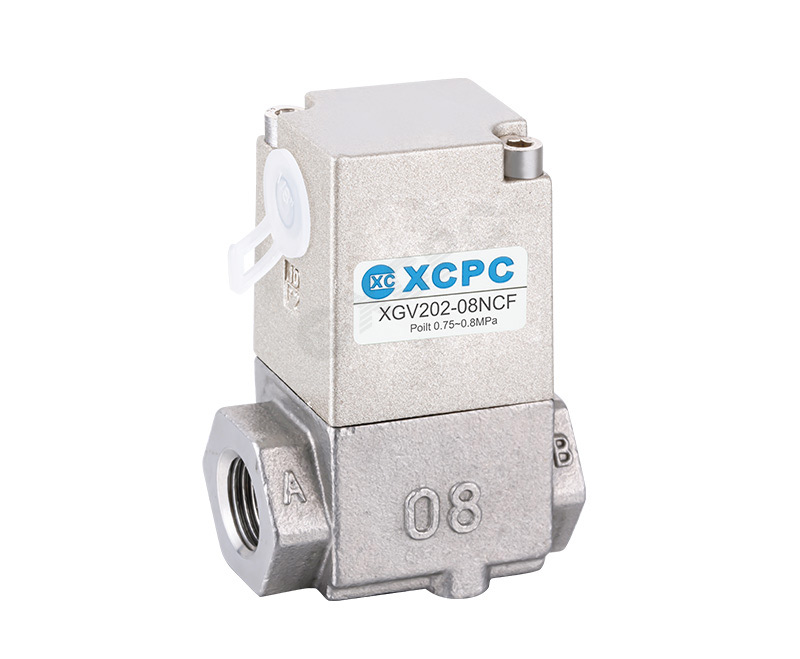

XGV 200 Series Process Valve

Series: XGV 200 Series Process Valve

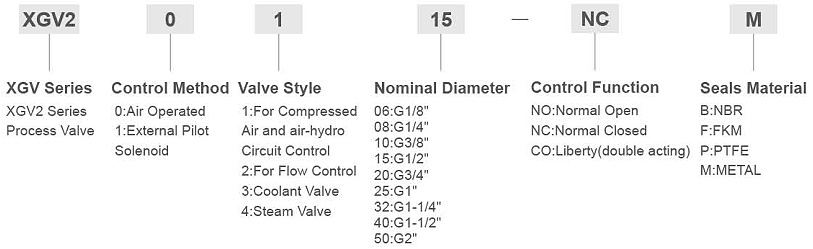

Model		GV2*1---BFC seal material:NBR/FKM/EPR			GV2*2---BFC seal material:NBR/FKM/EPR			GV2*3---M seal material:Metal		GV2*4---P seal material:PTFE
Fluid		NBR	FKM	EPR	NBR	FKM	EPR
		Air(standard dry);CO2.(less than 0.7Mpa); N2:Turbineoil Hydraulicfluid(40-100mm²/s)	Argon Helium Turbine oil.Hydraulic fluid(40~100mm²/s)	CO2 (0.7MPa or more)	Water,oil.AirVacuum etc(-5-60°C)	Water.oil.etcAir Operated Only(-5-99°C)		Coolant(-5-60°C)(-5~99°C for air operated)		Steam(-5-180°C)
Body /ActuatorMaterial		S.S304/Aluminum alloy
Seal Material		NBR	FKM	EPR	NBR	FKM	EPR	NBR	FKM
Temperature of Medium		-5-60°C	-5-99°C		-5-60°C	-5-99°C		-5-60°C	-5-99°C	-5~180°C
Ambient Temperature		-5-50°C(Air operated type 60°C)								-5-60°C
Proof Pressure		1.5MPa
Operating Pressure		0-1.0MPa			NO.、CO.and NC.standard orifice dia :low vacuum to 0.5Mpa NC.samller orifice dia low vacuum to 1.0Mpa			0-1.0MPa		0-0.9MPa
Extemalpilot air	Pressure range	0 2-0.7MPa			NC.:0.25-0.7MPa NO./C0.:0.1+025 xUse Pressure~0.25+0.25 x Use Pressure Mpa			NC.:0.25-0.7MPaNO :0.1+025 x UsePressure-0.7Mpa		NC.0.3-0.7MPa NO.0.1+025x Use Pressure0.25+0.25x UsePressure Mpa
	Lubrication	Not requirei(use turbine oil Class 1 lSO VG32,f lubricated.)
	lemperature	-5 to 50°C(Air operated type:60°C)								-5 to 60°C
