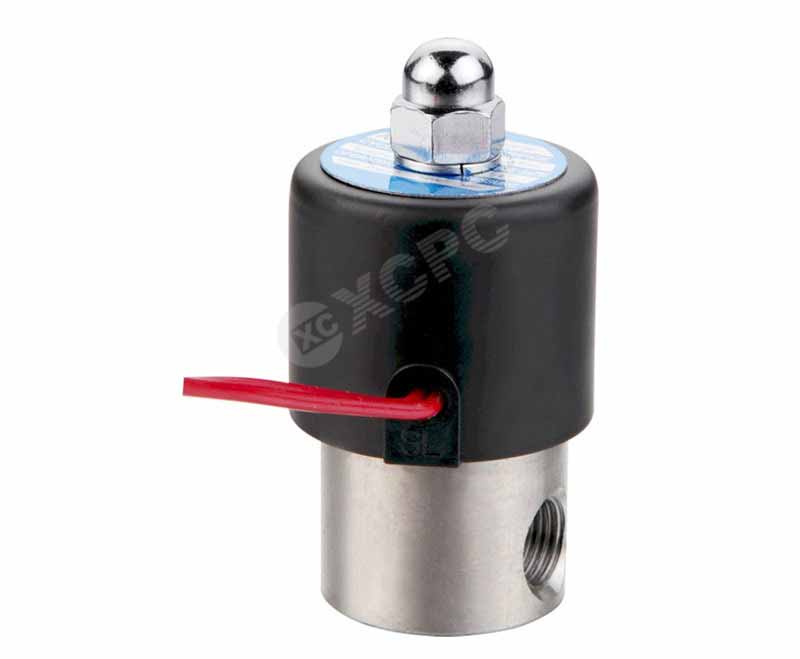

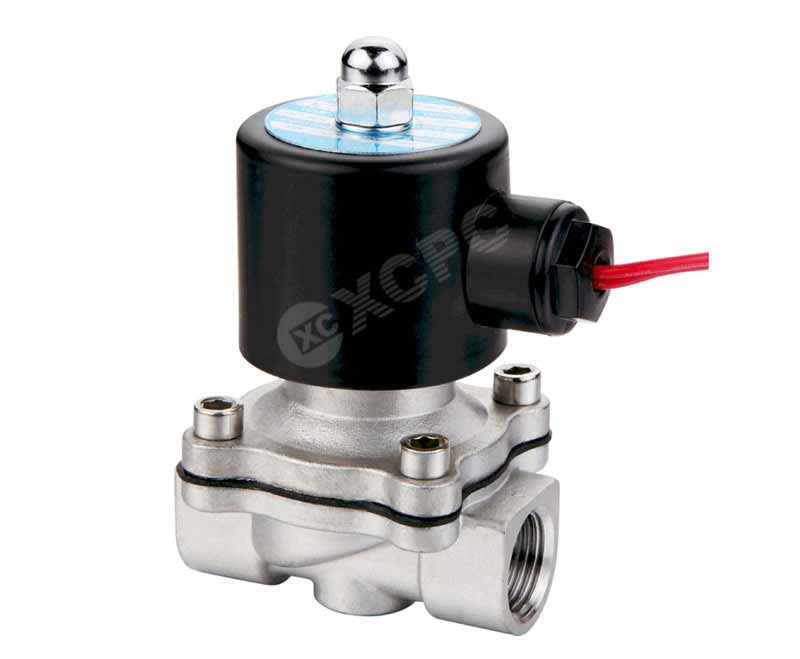

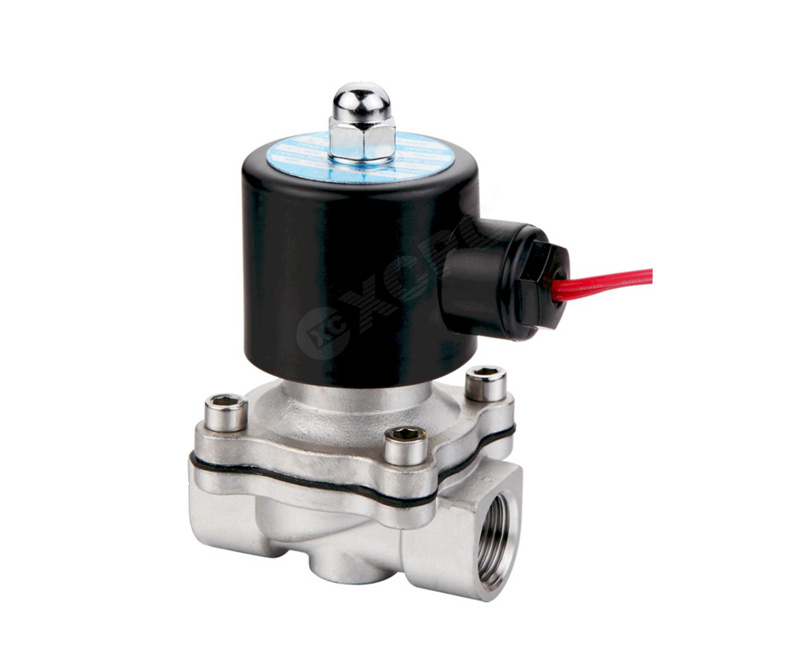

2S Series 2/2 Way Solenoid valve
Series: 2S Series 2/2 Way Solenoid valve
 Working Medium
|
Air,Water,Oil,Gas
|
|||||
|
Motion Pattern
|
Direct Drive Type
|
|||||
|
Type
|
Normal Close Type
|
|||||
|
Operation Fluid Viscosity
|
20 CST(Below)
|
|||||
|
Max. Pressure Resistance |
1.0MPa
|
|||||
|
Operating Temperature Range |
-5 ~ +80℃
|
|||||
|
Model
|
2S025-06(08)
|
2S040-10
|
2S016-10(15)
|
2S200-20
|
2S250-25
|
2S350-35(40)
|
2S500-50
|
|
Working Medium
|
Air,Water,Oil,Gas
|
||||||
|
Motion Pattern
|
Direct Drive Type
|
||||||
|
Type
|
Normal Close Type
|
||||||
|
Aperture of Flow Rate(mm)
|
2.5
|
5
|
16
|
20
|
35
|
40
|
50
|
|
CV Value
|
0.23
|
0.60
|
4.8
|
7.6
|
24
|
29
|
48
|
|
Port Szie
|
G1/8″ G1/4″
|
G3/8″
|
G3/8″ G1/2″
|
G3/4″
|
G1″
|
G1/2″ G1/4″
|
G2″
|
|
Operation Fluid Viscosity
|
20 CST(Below)
|
||||||
|
Working-pressure MPa
|
Air：0~0.7MPa
|
Water：0~0.5MPa; Air：0~0.7MPa; Oil：0~0.5MPaMPa; Gas: 0~0.7MPa
|
|||||
|
Max. Pressure Resistance
|
1.0MPa
|
||||||
|
Operating Temperature Range
|
-5 ~ +80℃
|
||||||
|
Voltage Range
|
±10%
|
||||||
|
Material of Body
|
Stainless steel
|
||||||
|
Material of Oil Seal
|
NBR,EPDM or VITON
|
||||||
