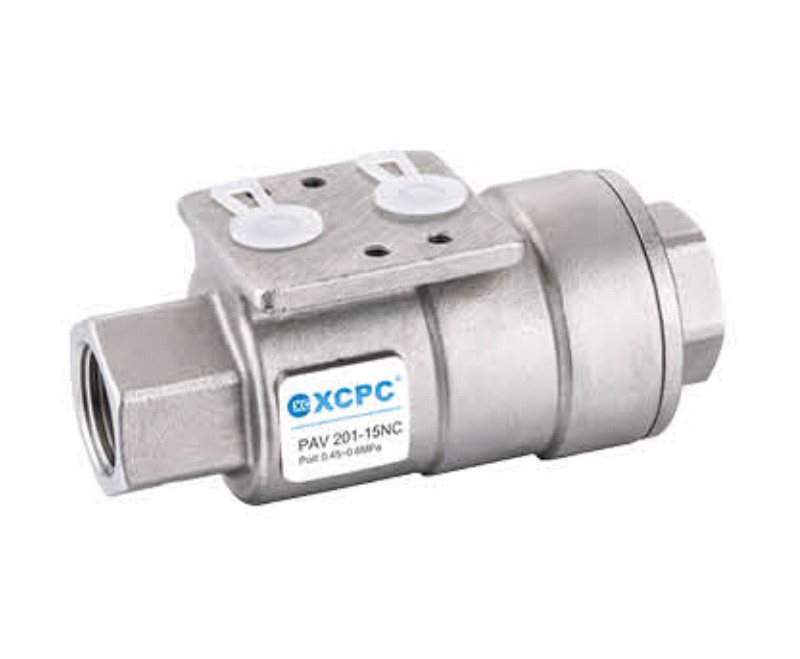

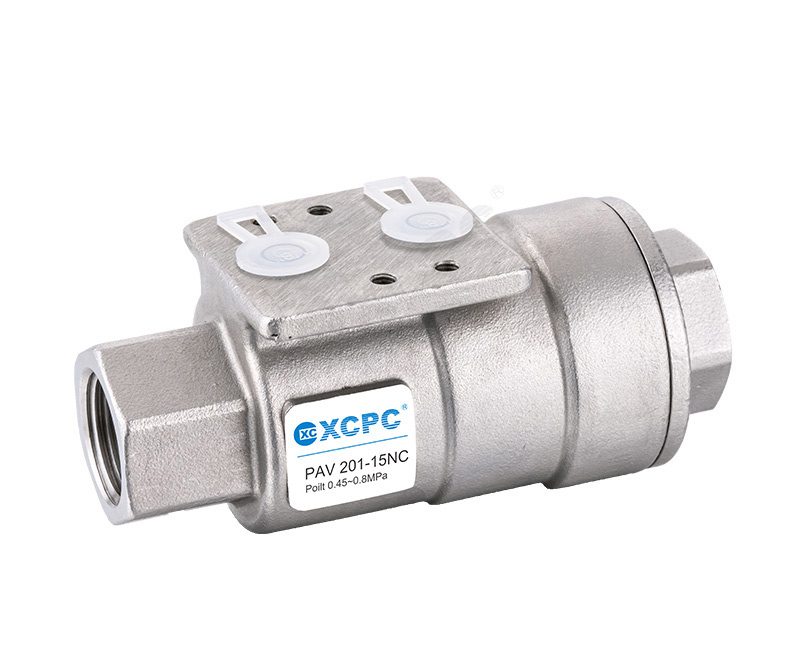

PAV200 Series Pneumatic Axial Valve

Series: PAV200 Series Pneumatic Axial Valve

Temperature of Pilot Valve	-10~60°C
Max.Control Pressure of pilot Valve	1.0 MPa
Ambient and fluid of Pilot valve	Filtered Air or gas
Control Pressure Rang(double acting)	0.45~0.8MPa

Download PDF Inquily now

Sub Series Of PAV Series Pneumatic Axial Valve

2Results

PAV200 Series Pneumatic Axial Valve

PAV100 Series Pneumatic Axial Valve

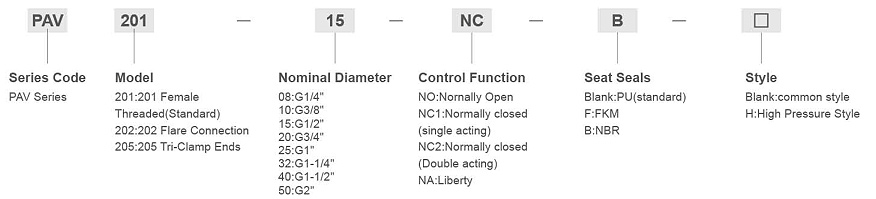

Ordering Code

Specification

Model		PAV201~205:DN08~50
Temperature of Pilot Valve		-10~60°C
Max.Control Pressure of pilot Valve		1.0 MPa
Ambient and fluid of Pilot valve		Filtered Air or gas
Control Pressure Rang(double acting)		0.45~0.8MPa
Control Pressure Rang(single acting)		0.5~0.8MPa
Temperature of Medium		-20~80°C
Filtering accuracy of media		200mesh(0.074mm)
Material of Body		S.S.304/316
Common style working pressure		1.6MPa
High pressure styleMax.Working pressure	Liquid	12MPa
	Gas	8MPa
Applicable medium		Water, air oil and other non-corrosive liquids or gases

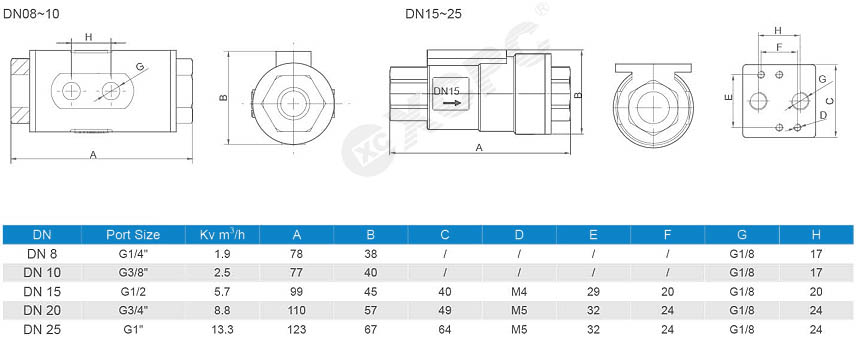

Overall Dimensions
