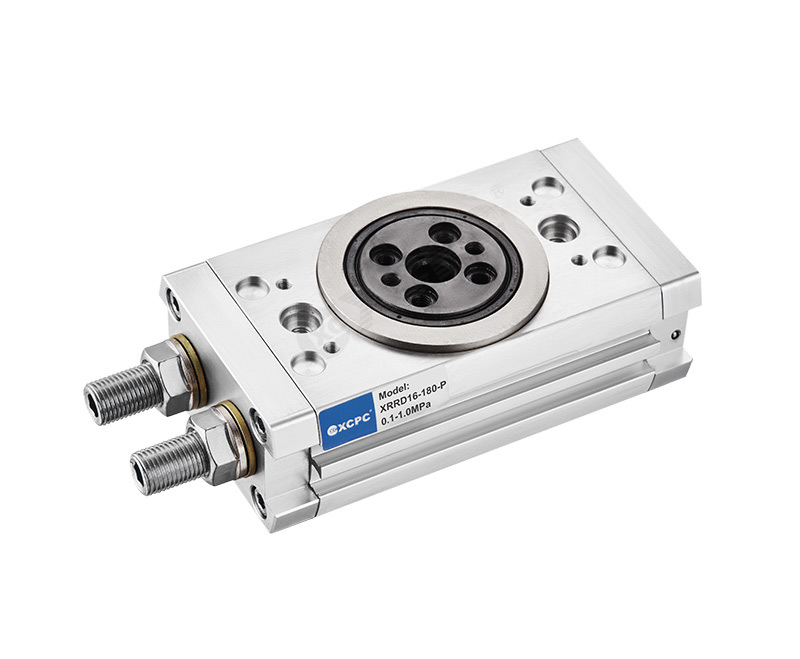

XRRD Series Twin Pistons Semi-rotary Cylinder

Series: XRRD Series Twin Pistons Semi-rotary Cylinder

Operating Medium	Compressed air
Mode of Operation	Double-acting
Ambient Temperature	-10~60℃
Storage Temperature	-20~60℃
Swivel Angle	180°

Download PDF Inquily now

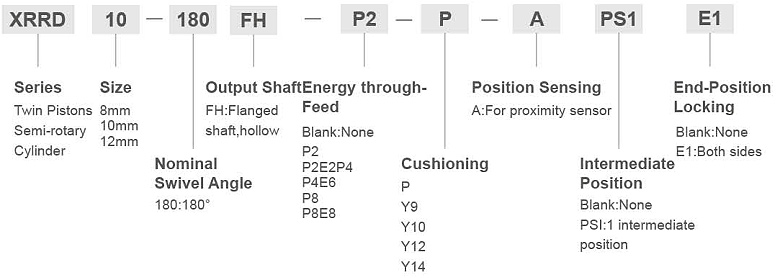

Ordering Code

Specification

Size(mm)		8	10	12
Operating Medium		Compressed air
Mode of Operation		Double-acting
Operating Pressure	XRRD-...-P	0.3~0.8MPa
	XRRD-...-Y9/-Y12	0.2~1MPa
Ambient Temperature		-10~60℃
Storage Temperature		-20~60℃
Swivel Angle		180°
Repetition Accuracy		≤ 0.03°
Axial Run-out		≤ 0.02mm
Max.axial load (static)	Pulling	260N	260N	320N
	Pushing	700N	1100N	1400N
Port Size		M3		M5
