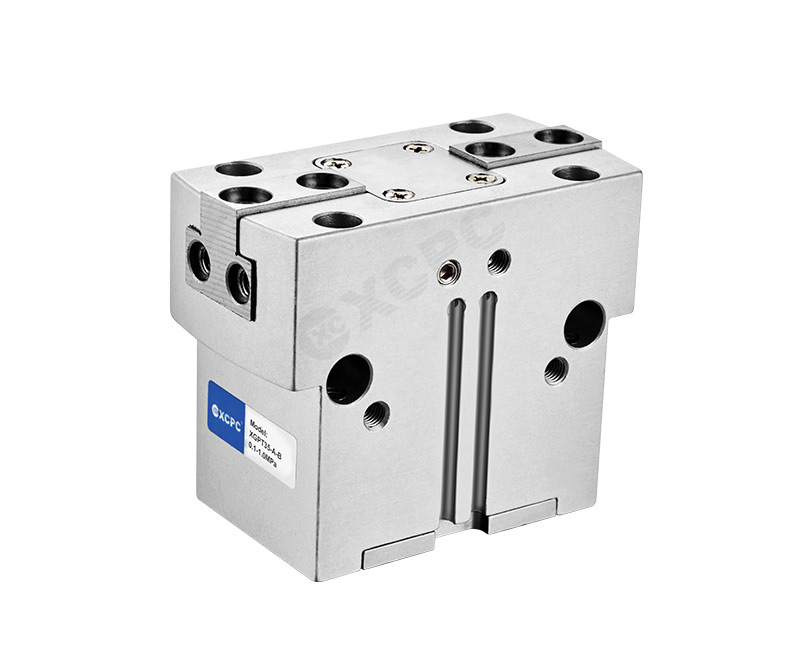

XGPT-B Series Heavy-Duty Parallel Gripper

Series: XGPT-B Series Heavy-Duty Parallel Gripper

Operating Medium	Compressed Air
Mode Of Operation	Double-Acting
Max.Operating Pressure	0.8MPa
Operating Pressure For Sealing Air	0~0.05MPa
Ambient Temperature	5-60℃

Size(mm)		16	20	25	35	40	50	63	80
Operating Medium		Compressed Air
Mode Of Operation		Double-Acting
Max.Operating Pressure		0.8MPa
Min.Operating Pressure	XGPT-..-A-B	0.3MPa
	XGPT-...-A-B-G	0.4MPa
Operating Pressure For Sealing Air		0~0.05MPa
Ambient Temperature		5-60℃
Repetition Accuracy		±0.01mm	±0.02mm		±0.025mm
Max.Interchangeability		0.2mm
Max.Operating Frequency		3Hz				2Hz
Rotational Symmetry		<Φ0.2mm
Port Size		M5					G1/8"		G1/4"
Port Size, Sealing Air		M3		M5
