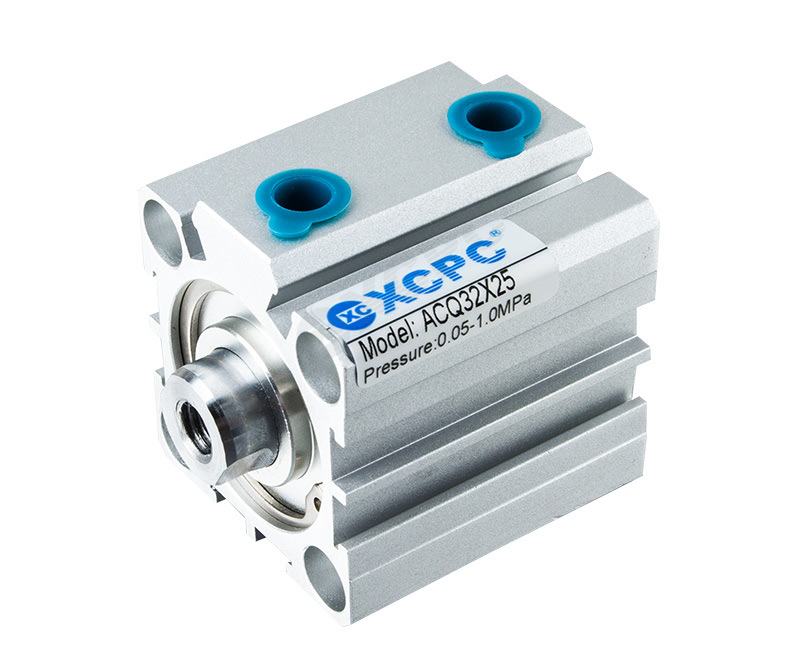

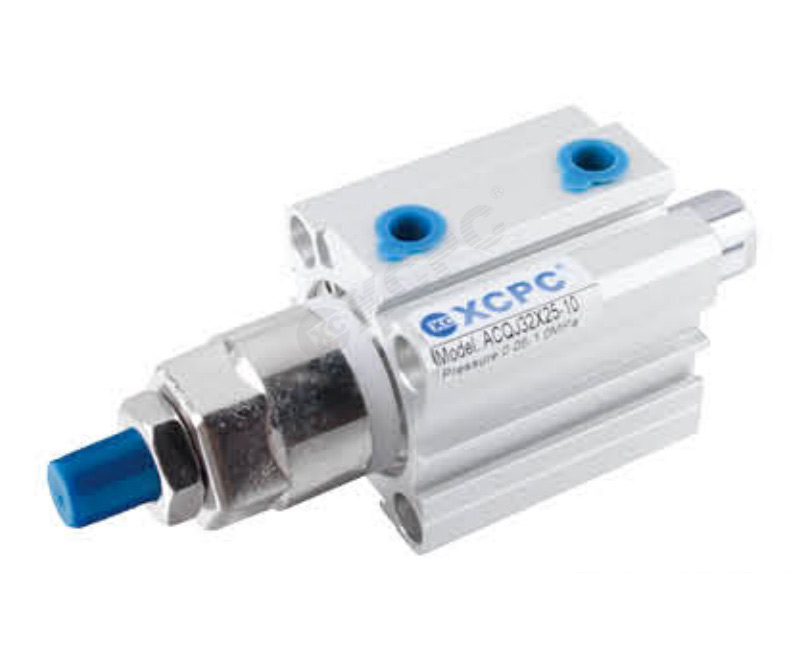

ACQ Series Thin Type(Compact) Cylinder

Series: ACQ Series Thin Type(Compact) Cylinder

Working Medium:	Air
Ensured Pressure Resistance:	1.5MPa
Operating Temperature Range:	-20~80 ℃
Buffer Type:	Anti-Crash Cushion

Download PDF Inquily now

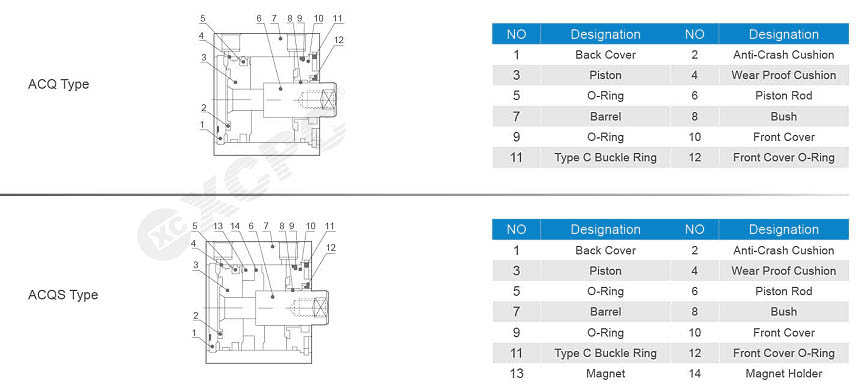

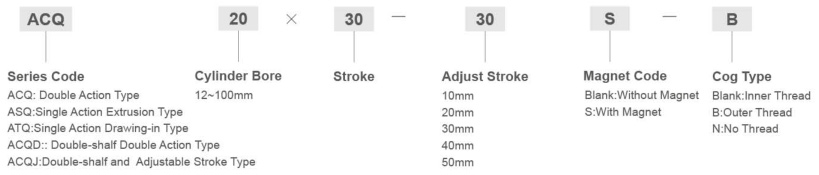

Ordering Code

Specification

Bore(mm)		12	16	20	25	32	40	50	63	80	100
Motion Pattern		Double Action
		Single Acting Extrusion type Single Acting Drawing-in Type
Working Medium		Air
Operating Pressure Range	Double Action	0.1~1.0MPa
	Single Action	0.2~1.0MPa
Ensured Pressure Resistance		1.5MPa
Operating Temperature Range		-20~80 ℃
OperatingSpeed Range	Double Action	30~500mm/s
	Single Action	50~500mm/s
Stroke Tolerance Range		Strokes≤150 0~+1.0,Stroke > 150 0~+1.4
Buffer Type		Anti-Crash Cushion
Port Size		M5×0.8				G1/8"		G1/4"		G3/8"

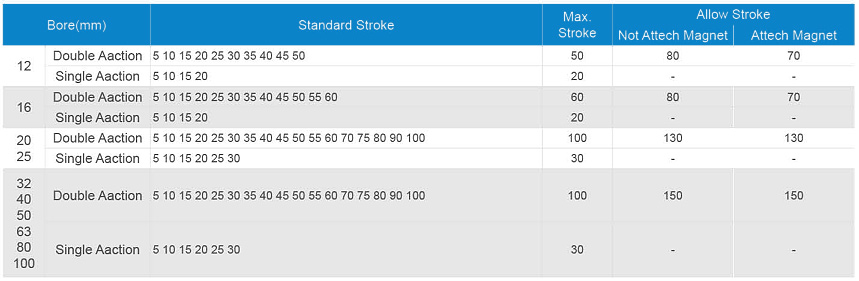

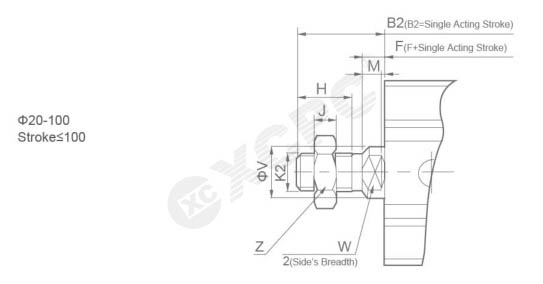

Overall Dimensions

Bore(mm)/Symbol	B2	F	H	I	J	K2	M	V	W
12	14	3.5	9	8	4	M5x0.8	3.5	6	5
16	15.5	3.5	10	10	5	M6x1.0	3	8	6
20	18.5	4.5	12	12	6	M8x1.25	4	10	8
25	22.5	5	15	17	6	M10x1.25	4.5	12	10
32	28.5	5	20.5	19	8	M14x1.5	4	16	14
40	28.5	5	20.5	19	8	M14x1.5	4	16	14
50	33.5	5	26	27	11	M18x1.5	4	20	17
63	33.5	5	26	27	11	M18x1.5	4	20	17
80	43.5	8	32.5	32	13	M22x1.5	6	25	22
100	43.5	8	32.5	36	13	M26x1.5	5.5	32	27

Type	Standard Type				Attach Magnet		B1	D	E	K1	M	N1		N2
Bore(mm) Symbol	A		C		A	C						Standard Type	Attach Magnet	Standard Type	Attach Magnet
Bore(mm) Symbol	Stroke≤50	Stroke≥60	Stroke≤50	Stroke≥60	A	C						Standard Type	Attach Magnet	Standard Type	Attach Magnet
12	20.5	-	17	-	31.5	28	3.5	-	6	M3x0.5	3.5	7.5	9	5	7
16	22	-	18.5	-	34	30.5	3.5	-	8	M4x0.7	3	8	9.5	5.5
20	24	34	19.5	29.5	36	31.5	4.5	-	7	M5x0.8	4	9	9.5	5.5
25	27.5	37.5	22.5	32.5	37.5	32.5	5	-	12	M6x1.0	4.5	11		5.5

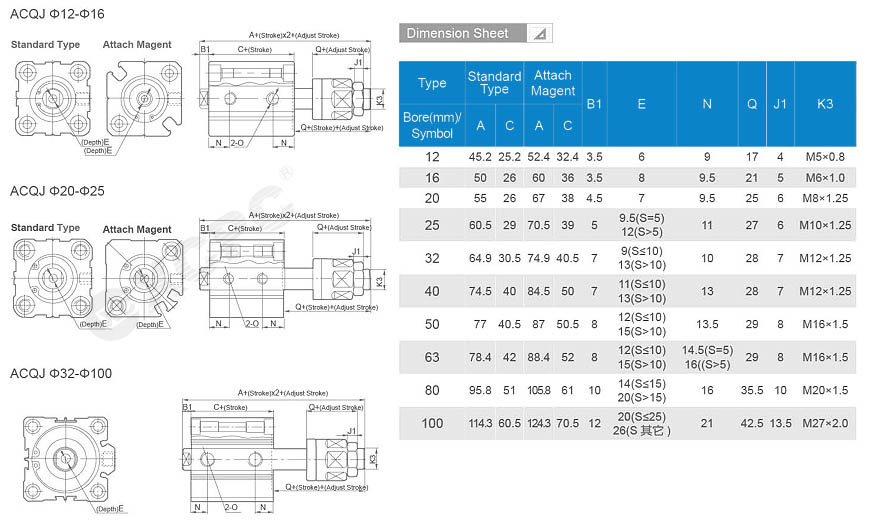

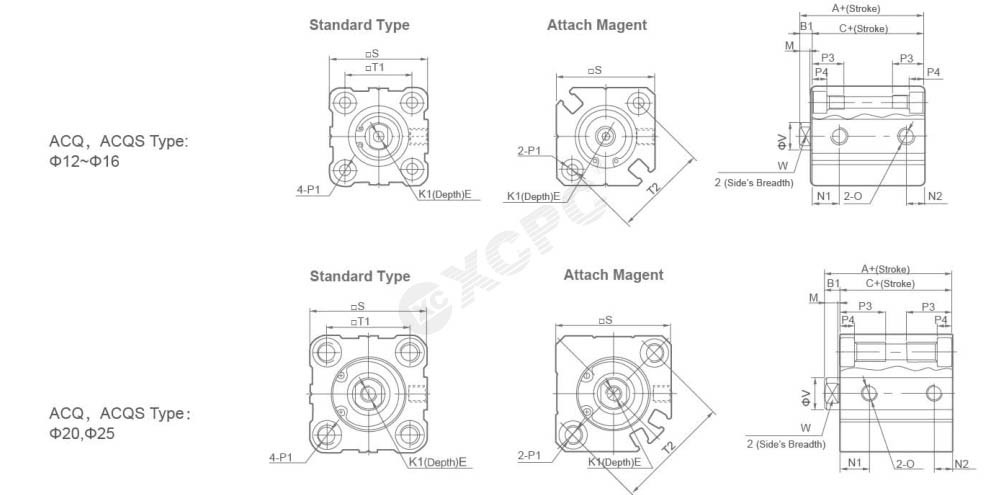

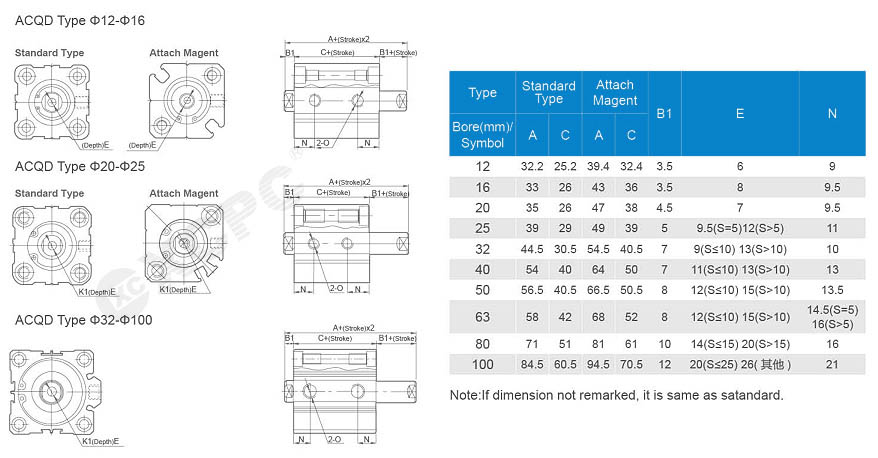

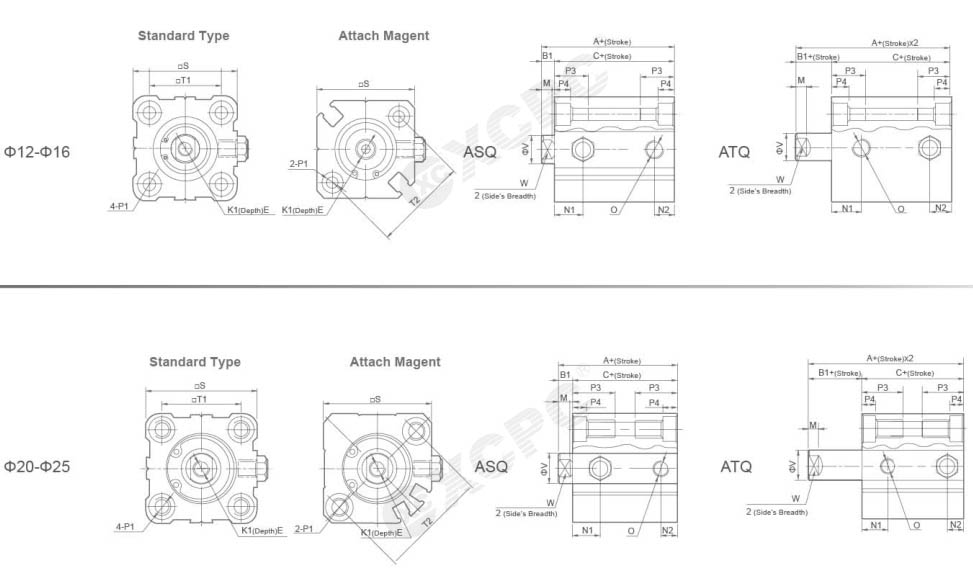

Bore(mm)/Symbol	O	P1	P3	P4	S	T1	T2	V	W
12	M5x0.8	Double Sides:ф6.5/Thread:M4x0.7/Through ports:ф3.4	11	3.5	25	15.5	22	6	5
16	M5x0.8	Double Sides:ф6.5/Thread:M4x0.7/Through ports:ф3.4	11	3.5	29	20	28	8	6
20	M5x0.8	Double Sides:ф9/Thread:M6x1.0/Through ports:ф5.2	17	7	36	25.5	36	10	8
25	M5x0.8	Double Sides:ф9/Thread:M6x1.0/Through ports:ф5.2	17	7	40	28	40	12	10

Type		Standard Type				Attach Magnet		B1	D	E	K1	M	Standard Type	Attach Magnet	Standard Type	Attach Magnet
Symbol Bore(mm)		A		C		A	C						N1		N2
		Stroke≤50	Strokez≥60	Stroke≤50	Strokez≥60
32	Stroke=5	30	40	23	33	40	33	7	49.5	13	M8x1.25	6	7.5	10.5	6.5	7.5
	Stroke >5												10.5		7.5
40		36.5	46.5	29.5	39.5	46.5	39.5	7	57	13	M8x1.25	6	11		8
50	Stroke=5	38.5	48.5	30.5	40.5	48.5	40.5	8	71	15	M10x1.5	6.5	9	10.5	9	10.5
	Stroke >5												10.5		10.5
63	Stroke=5	44	51	36	46	54	46	8	84	15	M10x1.5	6.5	14	15	9.5	10.5
	Stroke >5												15		10.5
80		53.5	63.5	43.5	53.5	63.5	53.5	10	104	20	M16x2.0	8.5	16		14
100		65	75	53	63	75	63	12	123.5	26	M20x2.5	9.5	20		17.5

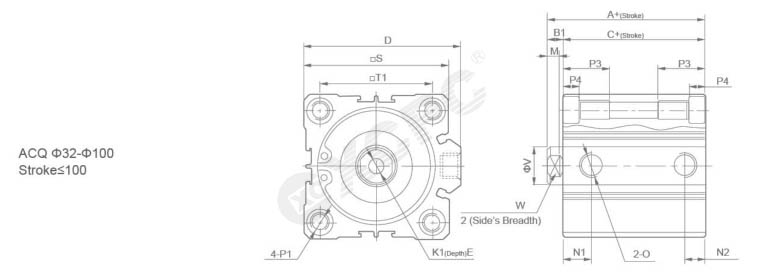

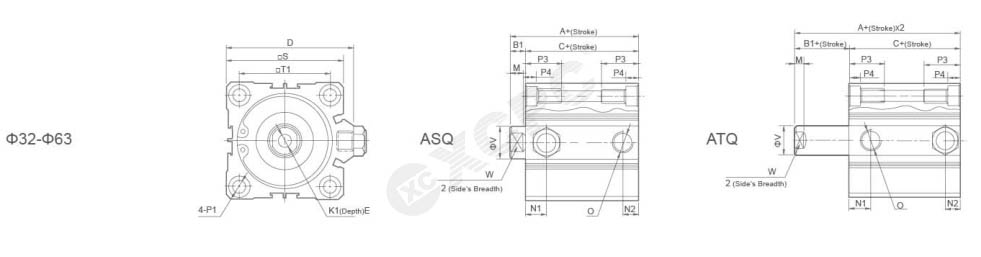

Bore (mm)Symbol	O	P1	P3	P4	S	T1	T2	V	W
32	G1/8"	Double Sides:ф9/Thread:M6x1.0/Through ports:ф5.2	17	7	45	34	-	16	14
40	G1/8"	Double Sides:ф9/Thread:M6x1.0/Through ports:ф5.2	17	7	53	40	-	16	14
50	G1/4"	Double Sides:ф11/Thread:M8x1.25/Through ports:Ф6.5	22	8	64	50	-	20	17
63	G1/4"	Double Sides:Ф14/Thread:M10x1.5/Through ports:Ф8.7	28.5	10.5	77	60	-	20	17
80	G3/8"	Double Sides:Ф17.5/Thread:M12x1.75/Through ports:Ф10.7	35.5	13.5	98	77	-	25	22
100	G3/8"	Double Sides:Ф17.5/Thread:M12x1.75/Through ports:Ф10.7	35.5	13.5	117	94	-	32	27

Type	Without Magent						Attach Magent
Bore(mmy/Symbol	A			C			A			C
Stroke	5/10	15/20	25/30	5/10	15/20	25/30	5/10	15/20	25/30	5/10	15/20	25/30
12	25.5	30.5	-	22	27	-	36.5	41.5	-	33	38	-
16	27	32	-	23.5	28.5	-	39	44	-	35.5	40.5	-
20	29	34	39	24.5	29.5	34.5	41	46	51	36.5	41.5	46.5
25	32.5	37.5	42.5	27.5	32.5	37.5	42.5	47.5	52.5	37.5	42.5	47.5
32	35	40	45	28	33	38	45	50	55	38	43	48
40	41.5	46.5	51.5	34.5	39.5	44.5	51.5	56.5	61.5	44.5	49.5	54.5
50	48.5	53.5	58.5	40.5	45.5	50.5	58.5	63.5	68.5	50.5	55.5	60.5
63	54	59	64	46	51	56	64	69	74	56	61	66

Type	B1	D	E	K1	M	Standard Type	Attach Magent	Standard Type	Attach Magent
Bore(mm)/Symbol	B1	D	E	K1	M	N1		N2
12	3.5	-	6	M3x0.5	3.5	7.5	9	5	7
16	3.5	-	8	M4x0.7	3	8	9.5	5.5
20	4.5	-	7	M5x0.8	4	9	9.5	5.5
25	5	-	12	M6x1.0	4.5	11		5.5
32	7	49.5	13	M8x1.25	6	10.5		7.5
40	7	57	13	M8x1.25	6	11		8
50	8	71	15	M10x1.5	6.5	10.5		10.5
63	8	84	15	M10x1.5	6.5	15		10.5

Bore(mm)/Symbol	O	P1	P3	P4	S	T1	T2	V	W
12	M5x0.8	Double Sides:Ф6.5/Thread:M4x0.7/Through ports:Ф3.4	11	3.5	25	15.5	22	6	5
16	M5x0.8	Double Sides:Ф6.5/Thread:M4x0.7/Through ports:Ф3.4	11	3.5	29	20	28	8	6
20	M5x0.8	Double Sides:Ф9/Thread:M6x1.0/Through ports:Ф5.2	17	7	36	25.5	36	10	8
25	M5x0.8	Double Sides:Ф9/Thread:M6x1.0/Through ports:Ф5.2	17	7	40	28	40	12	10
32	G1/8"	Double Sides:Ф9/Thread:M6x1.0/Through ports:Ф5.2	17	7	45	34	-	16	14
40	G1/8"	Double Sides:Ф9/Thread:M6x1.0/Through ports:Ф5.2	17	7	53	40	-	16	14
50	G1/4"	Double Sides:Ф11/Thread:M10x1.25/Through ports:Ф6.5	22	8	64	50	-	20	17
63	G1/4"	Double Sides:Ф14/Thread:M10x1.5/Throuah ports:Ф8.7	28.5	10.5	77	60	-	20	17
