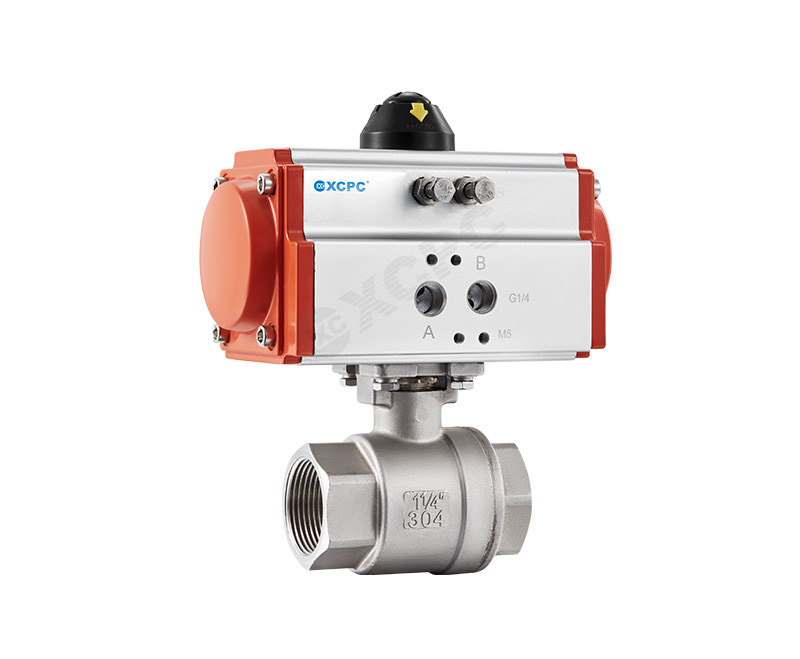

XSP Series Pneumatic Disc Ball Valve

Series: XSP Series Pneumatic Disc Ball Valve

Nominal Diameter DN(mm)	DN10-100
Connection Form	Thread Type,Wedded Type
Spool Form	O-shaped ball spool
Sealing Packing	PTFE、Flexible graphite
Flow Characteristics	Approximate Quick-opening Type

Nominal Diameter DN(mm)		DN10-100
Nominal pressure	PN(MPa)	1.0	1.6	2.5	4.0	6.4
Test Pressure	Strengh Test	1.5	2.4	3.75	6.0	9.60
	Seal Test	1.1	1.76	2.75	4.4	7.04
	Low Pressure SealTest	0.5-0.7
Working Media		Water,Oil,Steam,Nitric acid(Temperates200℃)、Acetic acid(Temperates200℃)
Connection Form		Thread Type,Wedded Type
Spool Form		O-shaped ball spool
Sealing Packing		PTFE、Flexible graphite
Flow Characteristics		Approximate Quick-opening Type
Action Range		0-90°
Q Leakage Q		According Gb/T4213-92、<rated Kv0.01%(Soft seal:Zero leakage)
Basic Error		With Positioner: <Total Stroke ±2%
Dead Zone		With Positioner: <Total Stroke 2%
Adjustable Range		250:1
Configure Actuator		XAT Series Single Action(SR)、Double Action(DA)、Pneumatic Actuator
Control Mode		Switch Two Position Control、4-20ma Modulating Control
