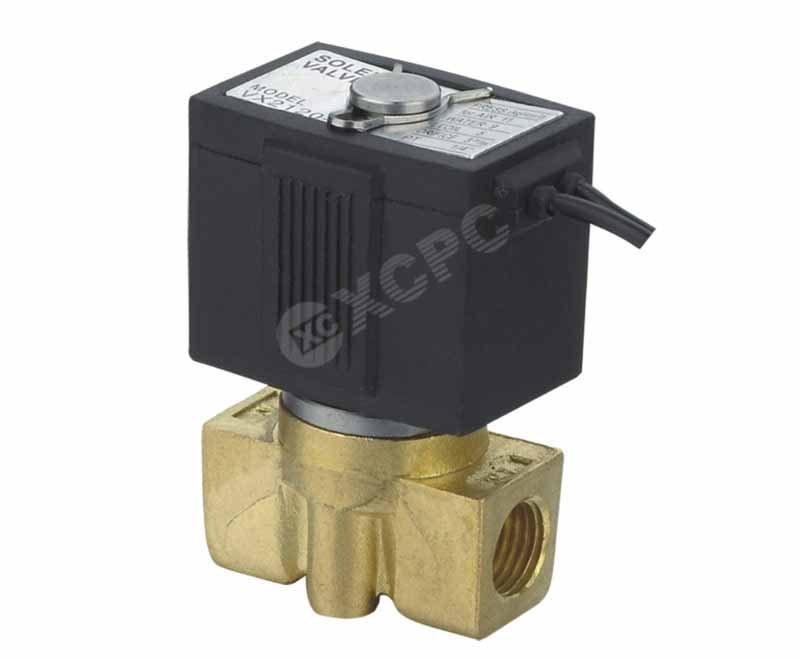

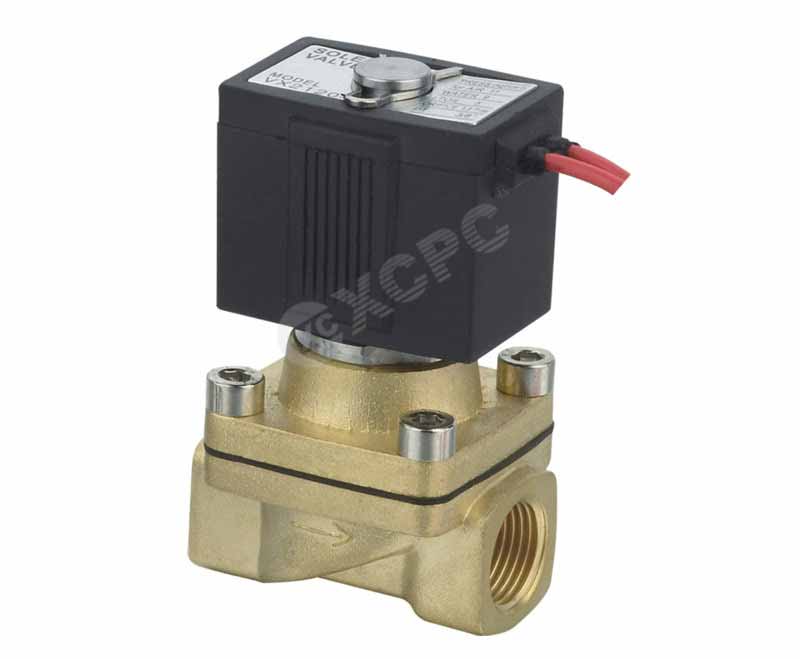

VX Series 2/2 Way Solenoid Valve
SERIES: VX Series 2/2 Way Solenoid Valve
VX Series 2/2 Way Solenoid Valve
FEATURES
 Working Medium
|
Air,Water,Steam
|
|
Motion Pattern
|
Direct Drive Type
|
|
Type
|
Normal Close Type
|
|
Working-pressure MPa
|
0~1.0MPa
|
Ordering Code
Specification
|
Model
|
VX2120-06
|
VX2120-08
|
VX2120-10
|
VX2120-15
|
|
Working Medium
|
Air,Water,Steam
|
|||
|
Motion Pattern
|
Direct Drive Type
|
|||
|
Type
|
Normal Close Type
|
|||
|
Working-pressure MPa
|
0~1.0MPa
|
|||
|
Aperture of Flow Rate(mm)
|
3
|
13
|
||
|
Joint Pipe Bore
|
1/8″
|
1/4″
|
3/8″
|
1/2″
|
|
Operating Temperature ℃
|
-5~150℃
|
-5~80℃
|
||
|
Material of Oil Seal
|
VITON
|
NBR
|
||

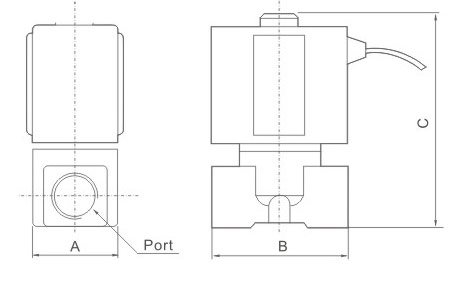

Overall Dimensions
|
Model
|
Bore
|
A
|
B
|
C
|
|
VX2120-06
|
G1/8″
|
26
|
40
|
66
|
|
VX2120-08
|
G1/4″
|
26
|
40
|
66
|
|
VX2120-10
|
G3/8″
|
40
|
68
|
80
|
|
VX2120-15
|
G1/2″
|
47
|
68
|
88
|
