Y+Pin Type Joint

Series: Y+Pin Type Joint

Download PDF Inquily now

Sub Series Of Standard Cylinder Accessories

8Results

LB Type Foot Bracket

FA/FB Type Flange

CA Type Single Earring

CB+Pin Type Double Earring

Y+Pin Type Joint

I Type Joint

TC Type

TC-M Type

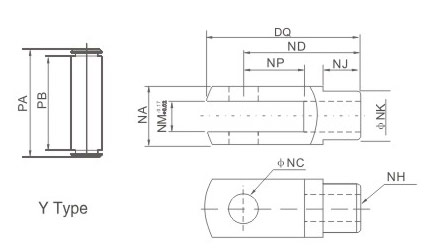

Overall Dimensions

Symbol/Bore	32	40	50	63	80	100	125	160	200
NA	19	25.4	32	32	44.4	44.4	64	80	80
NB	20	24	32	32	40	40	45	54	54
NC	10	12	16	16	20	20	20	30	30
ND	40	48	64	64	80	80	102	120	120
NE	52	67	89	89	112	112	121	130	130
NF	15	24	32	32	40	40	52	35	35
NG	20	20	23	23	30	30	56	50	50
NH	M10*1.25	M12*1.25	M16*1.5	M16*1.5	M20*1.5	M20*1.5	M27*2	M36*2	M36*2
NJ	12	20	22	22	30	30	27	40	40
NK	18	23	30	30	39	39	38	54	54
NM	10	12	16	16	20	20	32	40	40
NP	20	24	32	32	40	40	35	35	35
NQ	52	62	83	83	105	105	122	150	150
PA	25	32.8	39.3	39.3	53.3	53.3	74	91	91
PB	19.5	26.5	33	33	45	45	63.5	81	81
