TC-M Type

Series: TC-M Type

Download PDF Inquily now

Sub Series Of Standard Cylinder Accessories

8Results

LB Type Foot Bracket

FA/FB Type Flange

CA Type Single Earring

CB+Pin Type Double Earring

Y+Pin Type Joint

I Type Joint

TC Type

TC-M Type

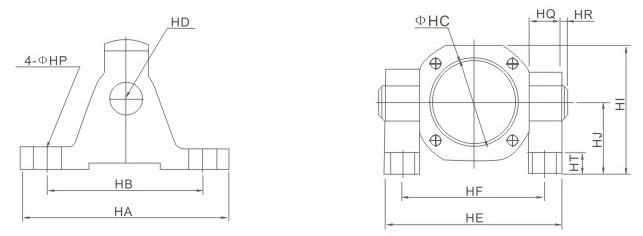

Overall Dimensions

Symbol/Bore	HA	HB	HC	HD	HE	HF	HI	HJ	HQ	HR	HT	HP
40	110	80	45.5	22	109	86	81.5	50	23	2	12	12
50	110	80	55.5	22	122	99	88	50	23	2	12	12
63	110	80	68.5	22	134	111	94	50	23	2	12	12
80	120	85	87.5	22	160	137	127	70	23	2	14	14
100	120	85	107.5	22	178	155	136	70	23	2	14	14
