FA/FB Type Flange

Series: FA/FB Type Flange

Download PDF Inquily now

Sub Series Of Standard Cylinder Accessories

8Results

LB Type Foot Bracket

FA/FB Type Flange

CA Type Single Earring

CB+Pin Type Double Earring

Y+Pin Type Joint

I Type Joint

TC Type

TC-M Type

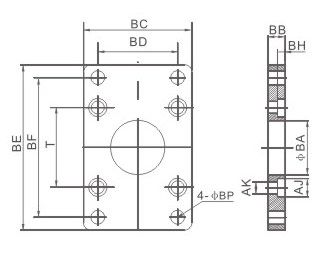

Overall Dimensions

Symbol/Bore	32	40	50	63	80	100	125	160	200
BA	28.3	32.3	38.3	38.3	47.3	47.3	56	63	81
BB	10	10	10	12	16	16	16	20	25
BC	47	52	65	76	95	115	140	180	220
BD	33	36	47	56	70	84	90	115	135
BE	72	84	104	116	143	162	224	280	320
BF	58	70	86	98	119	138	180	230	270
BH	6.5	6.5	6.5	8.5	10.5	10.5	10.5	12.5	16.5
AJ	10.5	10.5	13.5	13.5	15	15	19	25	25
AK	6.5	6.5	6.5	8.5	10.5	10.5	12.5	16.5	16.5
BP	7	7	9	9	11	11	16	18	22
T	33	37	47	56	70	84	110	140	175
