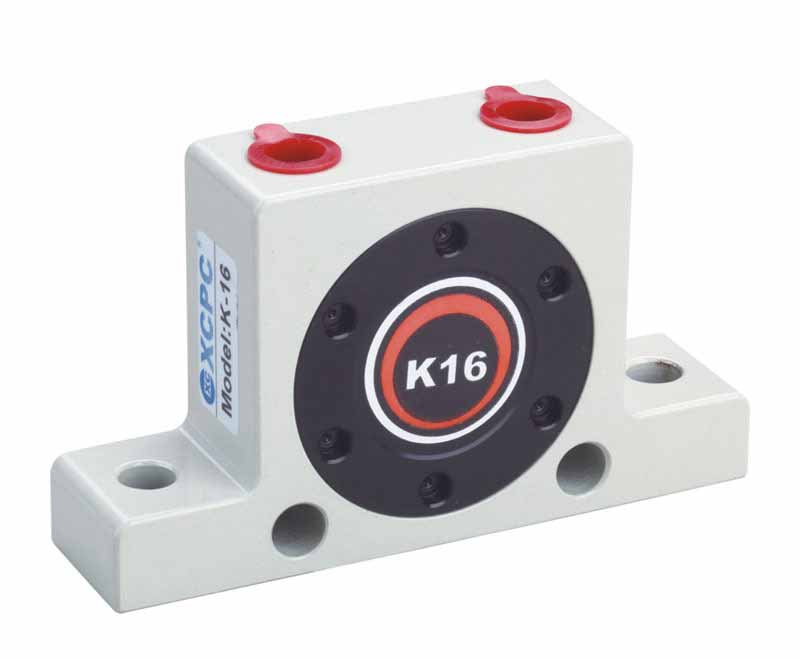

Series: XK Series Pneumatic Ball Vibrator
Vibration intensity according to the pressure regulator,affordable,long life,safe.an be used in damp,dust and explosion sites.
Application
Feed material conveyor,vibrating screening,vibrating hopper,to help fillpackaging,foundry sand mold vibration.
Works
Means of precision steel sleeve and the ball,the outer shell sealed by a specialaluminum alloy,to promote the use of air charged into the rotary sleeve in thesteel ball weigh ball and the distance between the center of the centrifugal forcegenerated vibration.
|
Model
|
Frequency(V.P.M)
|
Vibration power(N)
|
Air consumption(min)
|
||||||
|
0.2Mpa
|
0.4Mpa
|
0.6Mpa
|
0.2Mpa
|
0.4Mpa
|
0.6Mpa
|
0.2Mpa
|
0.4Mpa
|
0.6Mpa
|
|
|
XK-8
|
22.500
|
27.250
|
34.100
|
245
|
465
|
700
|
90
|
150
|
190
|
|
XK-10
|
22.500
|
27.250
|
34.100
|
245
|
465
|
700
|
90
|
150
|
190
|
|
XK-13
|
13.250
|
17.500
|
19.000
|
440
|
820
|
1.200
|
100
|
190
|
270
|
|
XK-16
|
13.250
|
17.500
|
19.000
|
440
|
820
|
1.200
|
100
|
190
|
270
|
|
XK-20
|
10.000
|
12.750
|
14.111
|
950
|
1.675
|
2.000
|
150
|
270
|
400
|
|
XK-25
|
10.000
|
12.750
|
14.111
|
950
|
1.675
|
2.000
|
150
|
270
|
400
|
|
XK-32
|
7.500
|
9.350
|
11.000
|
2000
|
3.150
|
4.000
|
270
|
460
|
680
|
|
XK-36
|
7.500
|
9.350
|
11.000
|
2000
|
3.150
|
4.000
|
270
|
460
|
680
|
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
P/O
|
|
XK-8
|
68
|
50
|
28
|
7
|
12
|
35
|
86
|
1/4
|
|
XK-10
|
68
|
50
|
28
|
7
|
12
|
35
|
86
|
1/4
|
|
XK-13
|
90
|
65
|
39
|
9
|
16
|
43
|
113
|
1/4
|
|
XK-16
|
90
|
65
|
39
|
9
|
16
|
43
|
113
|
1/4
|
|
XK-20
|
104
|
82
|
56
|
9
|
17
|
56
|
128
|
1/4
|
|
XK-25
|
104
|
82
|
56
|
9
|
17
|
56
|
128
|
1/4
|
|
XK-32
|
130
|
103
|
76
|
11
|
21
|
73
|
160
|
3/8
|
|
XK-36
|
130
|
103
|
76
|
11
|
21
|
73
|
160
|
3/8
|
