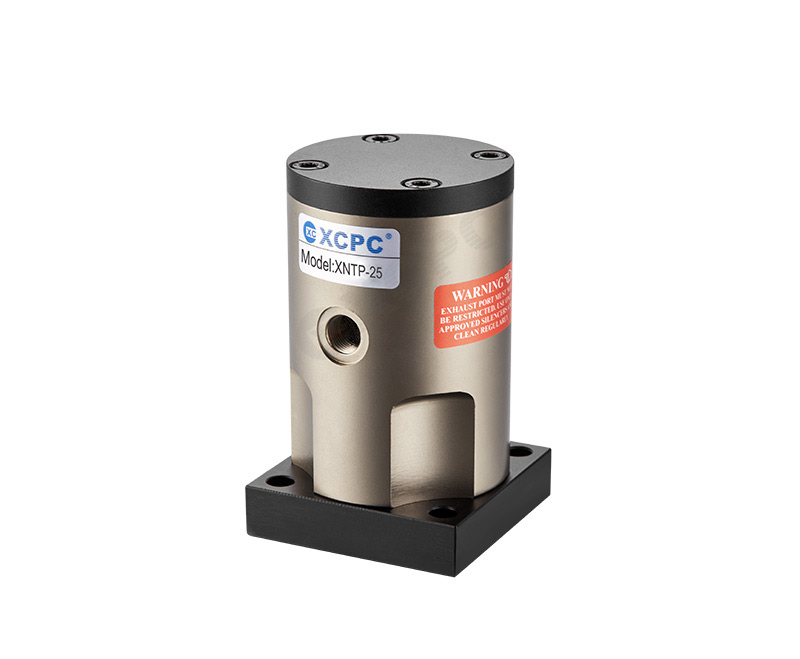

XNTP Series Pision Reciprocating Type Ball Vibrator

Series: XNTP Series Pision Reciprocating Type Ball Vibrator

Big power with lower noise.
Standard frequency is from 43 to 146 times per minute.Excitation force is from 150 N to 2039 N.The frequency and vibration amplitude can be adjusted via regulating theworking pressure.
The normal maximum working pressure is 150 degrees centigrade(We can also make special type, such as 200 degrees centigrade)The pneumatic hammer can be used for severe environment.

Download PDF Inquily now

Sub Series Of Pneumatic Vibrator

4Results

XGT Series Pneumatic Gear Vibrator

XK Series Pneumatic Ball Vibrator

XR Series Roller Vibrator

XNTP Series Pision Reciprocating Type Ball Vibrator

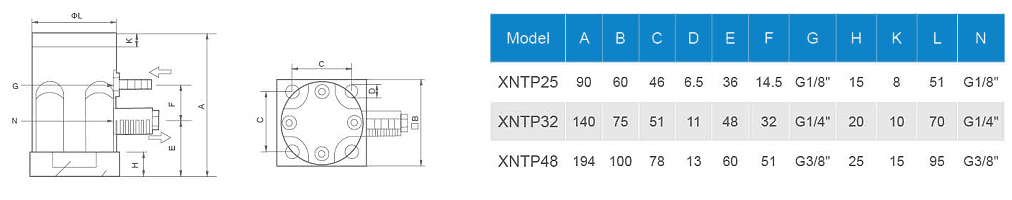

Specification

Model	Frequency(V.P.M)			Vibration Power(N)			Air Consumption(L/min)
Model	0.2MPa	0.4MPa	0.6MPa	0.2MPa	0.4MPa	0.6MPa	Air Consumption(L/min)
XNTP25	5.840	6.950	8.780	265	435	825	33-108
XNTP32	2.950	4.075	5.045	285	605	925	50-198
XNTP48	2.610	3.450	4.310	780	1.300	2.030	96-336
