SY3000 Series 5 Port Low Energy Consumption High Performance Valve

Series: SY3000 Series 5 Port Low Energy Consumption High Performance Valve

3Results

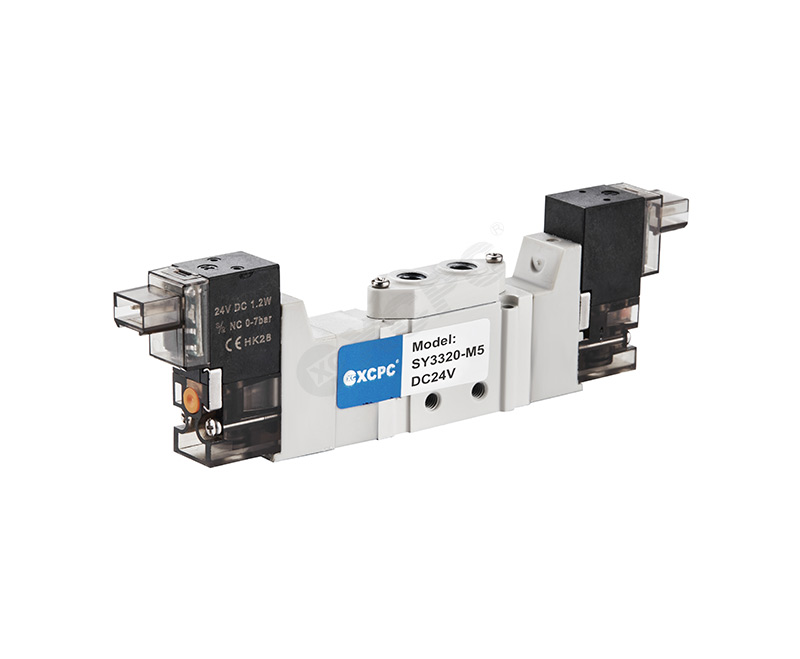

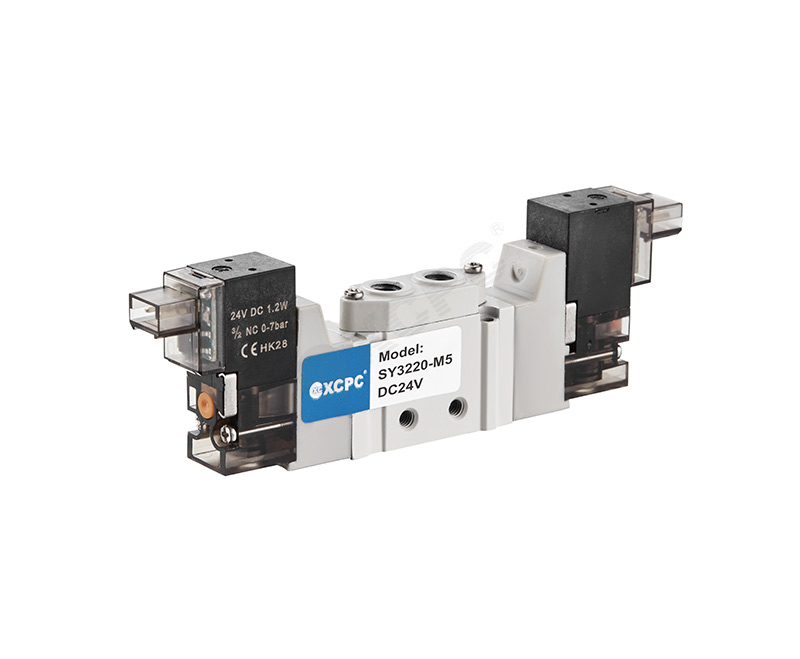

Model	SY3120-M5	SY3220-M5	SY3320-M5	SY3420-M5	SY3520-M5
Function Enginery	Single-head Double-position	Double-head Double-position	Double-head Three-position Close Type	Double-head Three-position Exhaust Type	Double-head Three-position Pressure Type
Cv Valve(P-A/B)	0.25		0.19		0.30
Cv Valve(A/B-R/S)	0.27		0.2	0.25
Joint Pipe Bore	M5
Working Pressure	0.15~0.7MPa		0.2~0.7MPa
Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Highest Action Frequency	15cycle/Second		5cycle/Second
Response Time(ms)	12 below		15 below
Operating Temperature	-5~60℃
