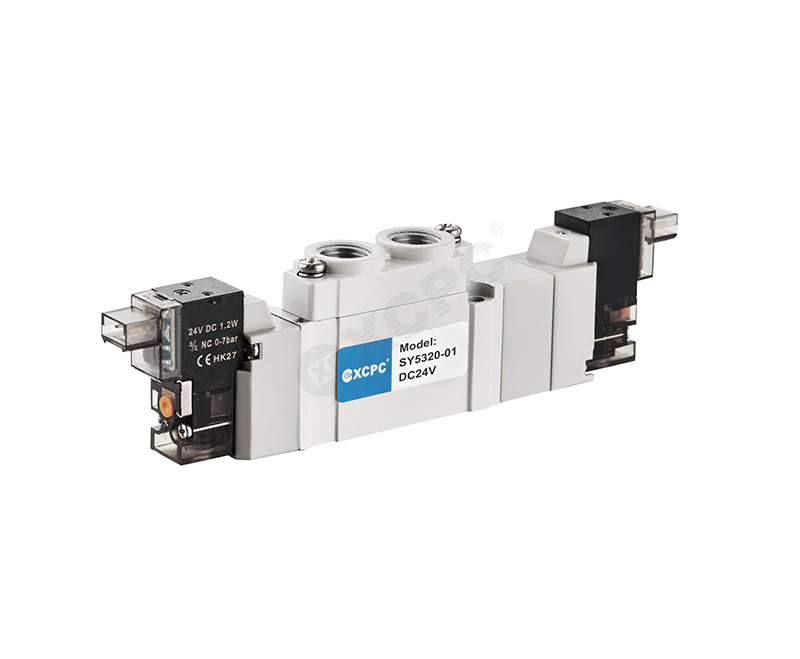

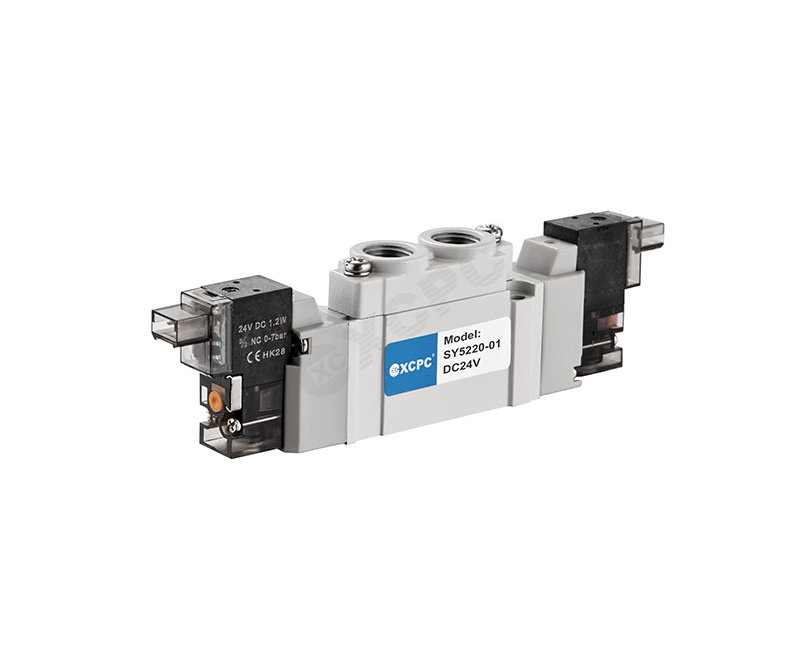

SY5000 Series 5 Port Low Energy Consumption High Performance Valve

Series: SY5000 Series 5 Port Low Energy Consumption High Performance Valve

3Results

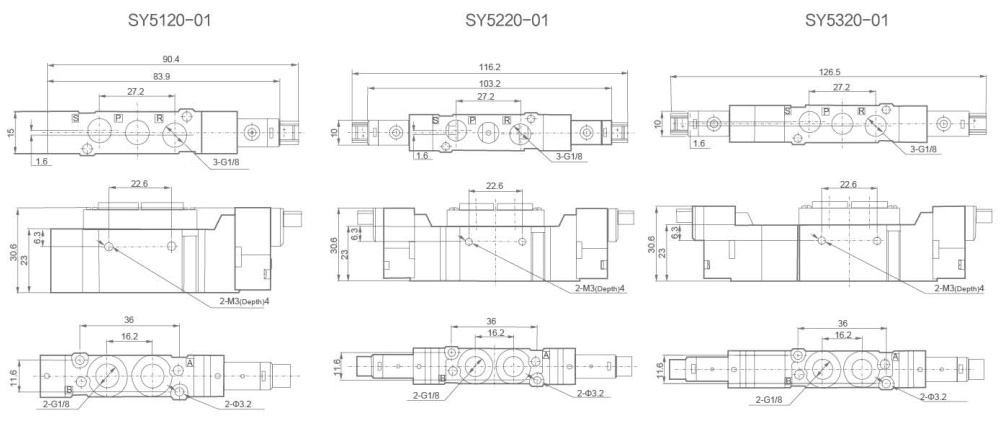

Model	SY5120-01	SY5220-01	SY5320-01	SY5420-01	SY5520-01
Function Enginery	Single-head Double-position	Double-head Double-position	Double-head Three-position Close Type	Double-head Three-position Exhaust Type	Double-head Three-position Pressure Type
Cv Valve(P-A/B)	0.67		0.52	0.46	0.89
Cv Valve(A/B-R/S)	0.69		0.49	0.75	0.50
Joint Pipe Bore	G1/8"
Working Pressure	0.15~0.7MPa		0.2~0.7MPa
Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Highest Action Frequency	8cycle/Second		5cycle/Second
Response Time(ms)	19 below		32 below
Operating Temperature	-5~60℃
