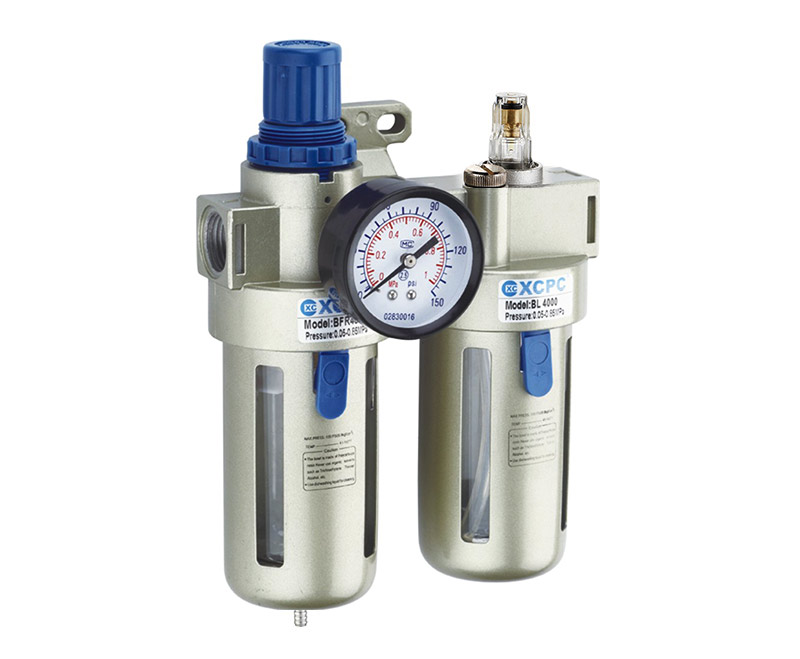

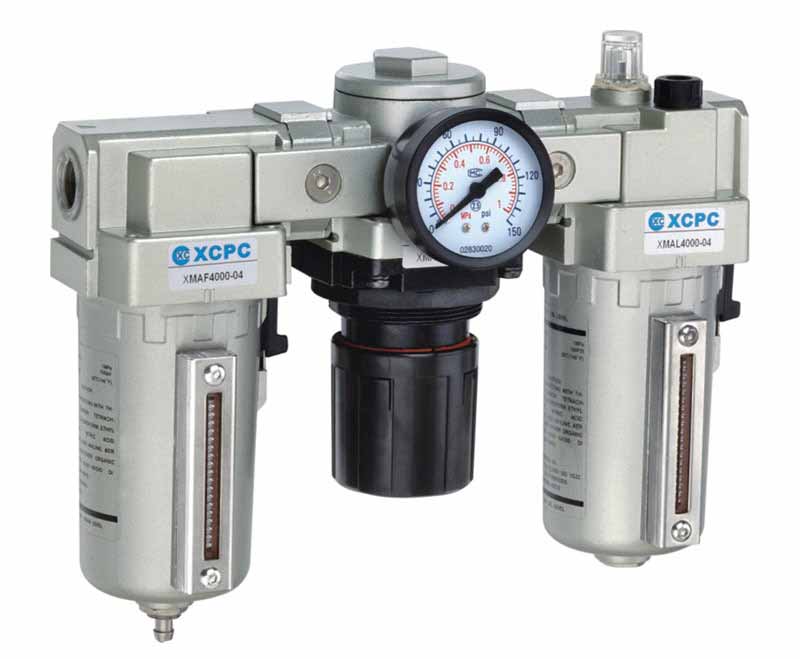

XMAC (Three Elements)
SERIES: XMA Series Metal cup F.R.L
XMAC (Three Elements)
FEATURES
 Ensured Pressure Resistance
|
1.5MPa(15kgf/cm2) |
|
Highest Working Pressure
|
1.0MPa(10kgf/cm2)
|
|
Operating Temperature Range
|
5-60℃
|
|
Filter Precisio
|
25µ & 5µ & 50µ
|
|
ERecommended Oil Use
|
Turbie NO.1 Oil lSOVG32
|
|
Container Material
|
Aluminum Die Casting
|
SUB-SERIES

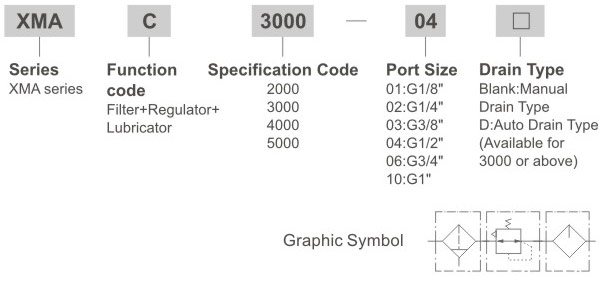

Ordering Code
Specification
| Model |
XMAC2000-01 |
XMAC2000-02 |
XMAC3000-02M |
XMAC3000-03 |
XMAC4000-03 |
XMAC4000-04 |
XMAC4000-06 | XMAC5000-06 | XMAC5000-10 | |
| Ensured Pressure Resistance |
1.5MPa(15kgf/cm2) |

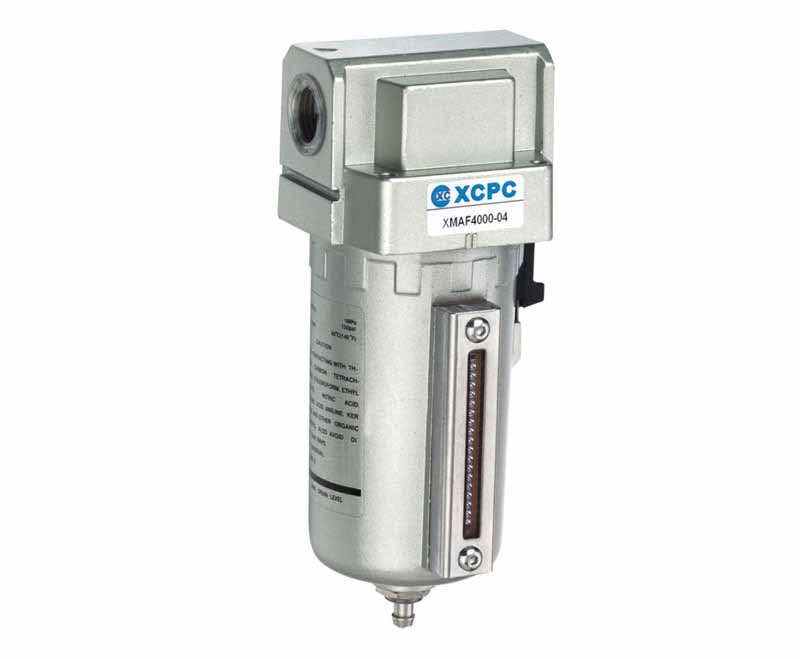

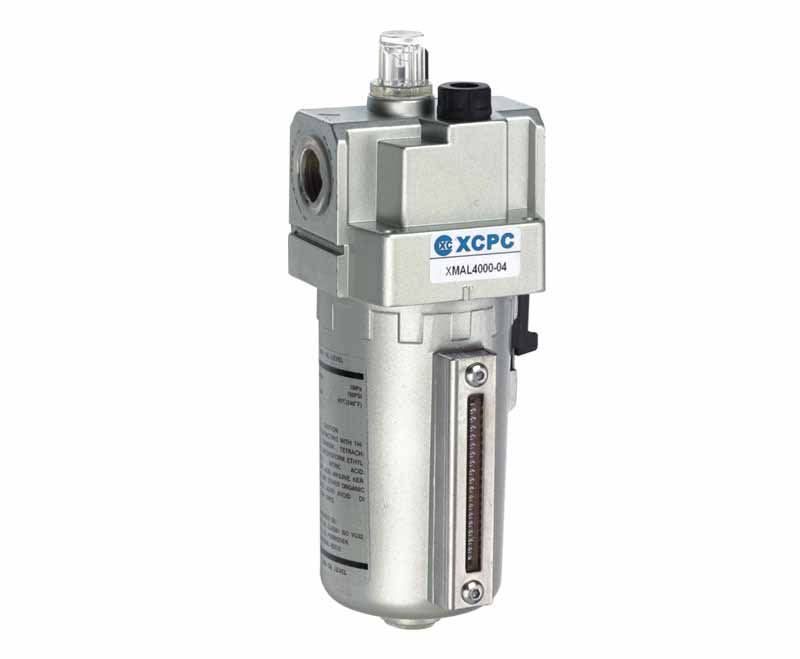

|||||||||
| Highest Working Pressure | 1.0MPa(10kgf/cm2) | |||||||||
| Operating Temperature Range | 5-60℃ | |||||||||
| Filter Precisio | 25µ & 5µ & 50µ | |||||||||
| ERecommended Oil Use | Turbie NO.1 Oil lSOVG32 | |||||||||
| Container Material | Aluminum Die Casting | |||||||||
| Pressure Regulating Range | 0.05~0.85MPa(0.05~0.85kgf/cm2) | |||||||||
| Valve Type | With Overflow | |||||||||
| Assembly | Filter | XMAF2000 | XMAF3000 | XMAF4000 | XMAF4000-06 | XMAF5000 | ||||
| Regulator | XMAR2000 | XMAR3000 | XMAR4000 | XMAR4000-06 | XMAR5000 | |||||
| Lubricator | XMAL2000 | XMAL3000 | XMAL4000 | XMAL4000-06 | XMAL5000 | |||||
| Rated Flow(L/min) | 500 | 2000 | 4000 | 4500 | 5000 | |||||
| Port Size(G) | 1/8" | 1/4" | 1/4" | 3/8" | 3/8" | 1/2" | 3/4" | 3/4" | 1" | |

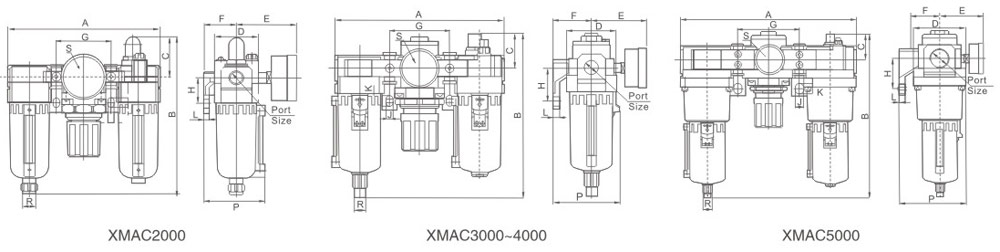

Overall Dimensions
|
Model
|
Port Size(G)
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
J
|
K
|
L
|
P
|
R
|
S
|
|

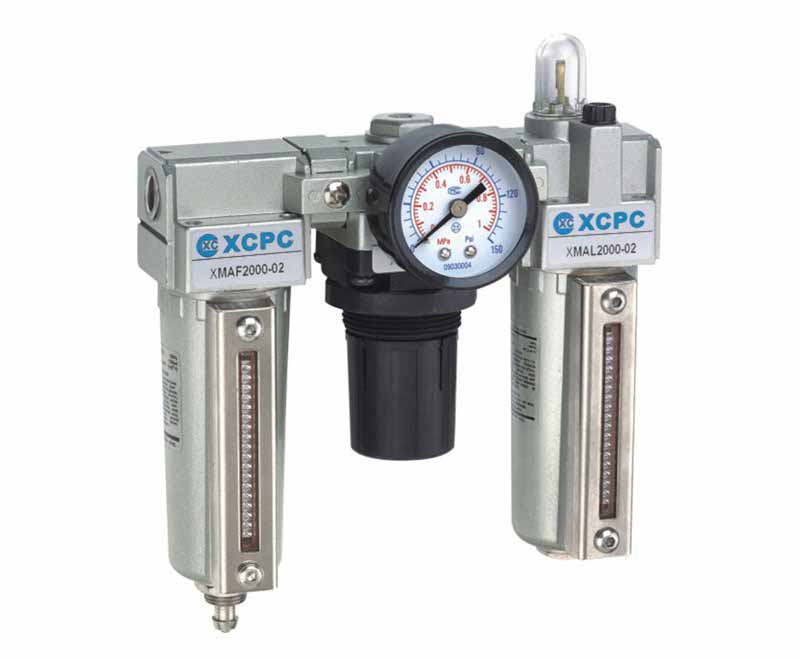

XMAC2000
|
G1/8"-G1/4"
|
140
|
147
|
38
|
40
|
56.8
|
30
|
50
|
24
|
5.5
|
8.5
|
5
|
56
|
Φ6
|
G1/8"
|
|
XMAC3000
|
G1/4"-G3/8"
|
181
|
178
|
38
|
53
|
60.8
|
41
|
64
|
35
|
7
|
11
|
7
|
70.5
|
Φ8
|
G1/8"
|
|
XMAC4000
|
G1/2"
|
238
|
207
|
41
|
70
|
65.5
|
50
|
84
|
40
|
9
|
13
|
7
|
87.5
|
Φ8
|
G1/4"
|
|
XMAC4000-06
|
G3/4"
|
253
|
208.5
|
40.5
|
70
|
69.5
|
50
|
89
|
40
|
9
|
13
|
7
|
87.5
|
Φ8
|
G1/4"
|
|
XMAC5000
|
G3/4"-G1"
|
300
|
287
|
48
|
90
|
75.5
|
69.8
|
105
|
50
|
12
|
16
|
10.5
|
115
|
Φ8
|
G1/4"
|
