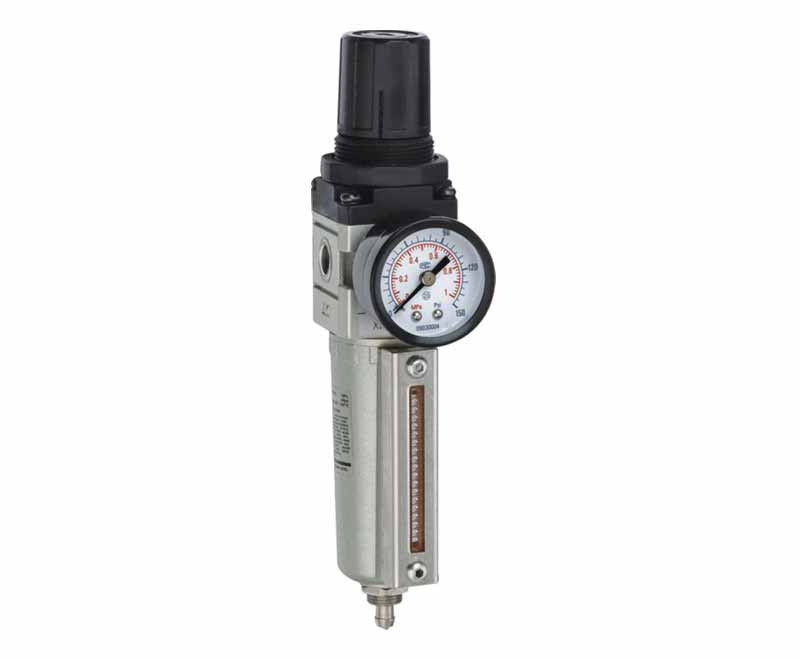

XMAW(Filter&Regulator)
SERIES: XMA Series Metal cup F.R.L
XMAW(Filter&Regulator)
FEATURES
 Ensured Pressure Resistance
|
1.5MPa(15kgf/cm²) |
|
Highest Working Pressure
|
1.0MPa(10kgf/cm²)
|
|
Operating Temperature Range
|
5-60℃
|
|
Filter Precision
|
25µ & 5µ & 50µ
|
|
Container Material
|
Aluminum Die Casting
|
|
Pressure Regulating Range
|
0.05-0.85MPa(0.5-0.85kgf/cm²)
|
SUB-SERIES

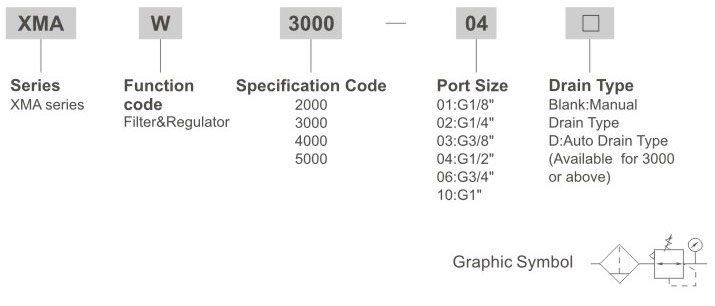

Ordering Code
Specification
| Model |
XMAW2000-01 |
XMAW2000-02 |
XMAW3000-02 |
XMALW000-03 |
XMAW4000-03 |
XMAW4000-04 |
XMAW4000-06 | XMAW5000-06 | XMAW5000-10 |
| Ensured Pressure Resistance |
1.5MPa(15kgf/cm²) |
||||||||
| Highest Working Pressure | 1.0MPa(10kgf/cm²) | ||||||||
| Operating Temperature Range | 5-60℃ | ||||||||
| Filter Precision | 25µ & 5µ & 50µ | ||||||||
| Container Material | Aluminum Die Casting | ||||||||
| Pressure Regulating Range | 0.05-0.85MPa(0.5-0.85kgf/cm²) | ||||||||
| Value Type | With Overflow | ||||||||
| Rated Flow(L/min) | 550 | 2000 | 4000 | 4500 | 5500 | ||||
| Port Size(G) | 1/8" | 1/4" | 1/4" | 3/8" | 3/8" | 1/2" | 3/4" | 3/4" | 1" |
| Pressure Gauge Size | 1/8 | 1/8 | 1/4 | 1/4 | 1/4 | ||||

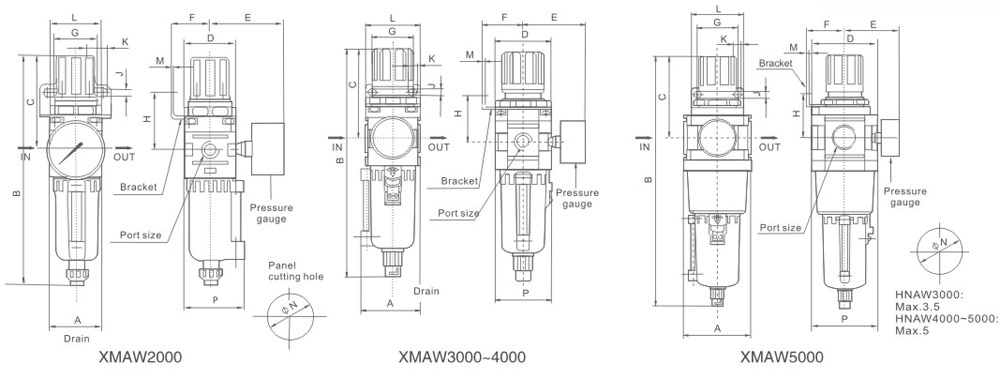

Overall Dimensions
|
Model
|
Port Size(G)
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
J
|
K
|
L
|
M
|
P
|
|
XMAW2000
|
G1/8"-G1/4"
|
40
|
186.5
|
78
|
40
|
56.8
|
30
|
34
|
43.5
|
5.4
|
15.4
|
55
|
2.3
|
46
|
|
XMAW3000
|
G1/4"-G3/8"
|
57.5
|
232.5
|
92.5
|
53
|
60.8
|
39
|
40
|
46
|
6.5
|
8
|
53
|
2.3
|
55
|
|
XMAW4000
|
G1/2"
|
74
|
278
|
112
|
70
|
65.5
|
49.2
|
54
|
53.5
|
8.5
|
10.5
|
70
|
2.3
|
72.5
|
|
XMAW4000-06
|
G3/4"
|
76.5
|
282
|
114
|
70
|
69.5
|
49.2
|
54
|
53.5
|
8.5
|
10.5
|
70
|
2.3
|
72.5
|
|
XMAW5000
|
G3/4"-G1"
|
90
|
353
|
116
|
90
|
75.5
|
49.2
|
54
|
62
|
8.5
|
10.5
|
70
|
2.3
|
90
|
