Double acting |
|
|
Air |
|
|
0.1~0.6 MPa |
|
|
5~60℃ |
|
|
Not required |
Motion Pattern
|

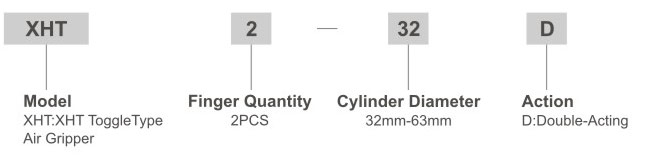

Model |
MHT2-32D |
MHT2-40D |
MHT2-50D |
MHT2-63D |
|
Bore size |
32 |
40 |
50 |
63 |
|
Motion Pattern |
Double acting |
|||
|
Fluid |
Air |
|||
|
Operating Voltage Range |
0.1~0.6 MPa |
|||
|
Ambient and fluid temperature |
5~60℃ |
|||
|
Lubrication |
Not required |
|||
|
Finger opening angle (Total) |
-3°~28° |
-3°~27° |
-2°~23° |
-2°~23° |
|
Weight (kg) |
0.80 |
1.09 |
1.93 |
2.8 |
|
Effective gripping force (N.m) at 0.5 Mpa |
12.4 |
36.0 |
63.0 |
106 |
