XBVP Series Piston Type Pneumatic Hammer

Series: XBVP Series Piston Type Pneumatic Hammer

Vibration intensity can be adjusted based on air pressure, can immediately start. stop, fast, low-noise, vibration force, security.

Download PDF Inquily now

Sub Series Of Pneumatic Hummer

3Results

XSK Series Pneumatic Precussion Hammer

XBVP Series Piston Type Pneumatic Hammer

XFP-M Series Pision type Pneumatic Hammer

Specification

Model	Requency(V.P.M)			Vibration power(N)			Air Consumption(L/min)
Model	2MPa	4MPa	6MPa	2MPa	4MPa	6MPa	Air Consumption(L/min)
XBVP-30C	1760	2300	2850	195	380	560	230
XBVP-40C	1330	1670	1870	270	530	720	250
XBVP-50C	1000	1220	1350	400	760	1000	270

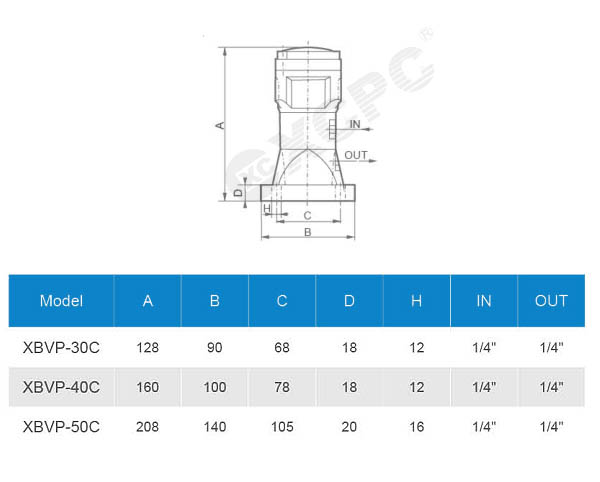

Overall Dimensions
