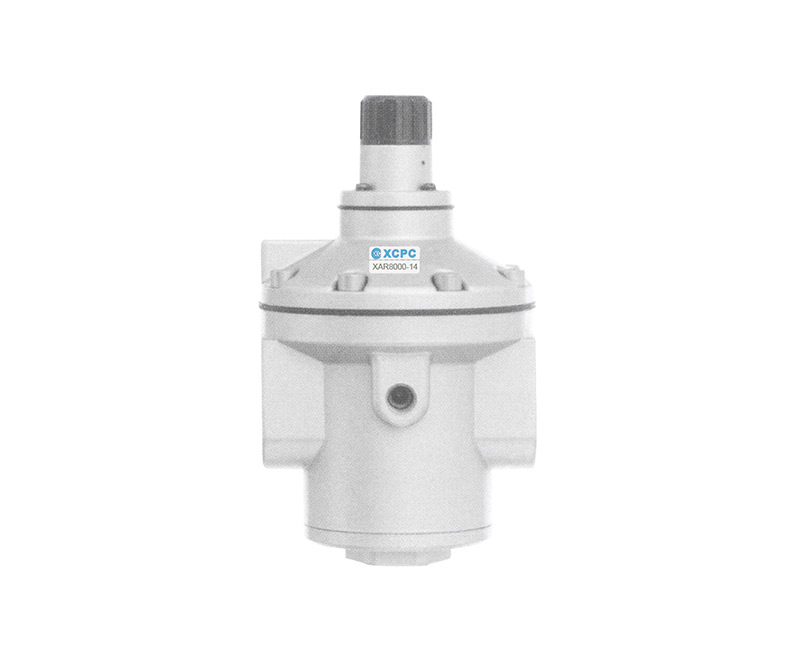

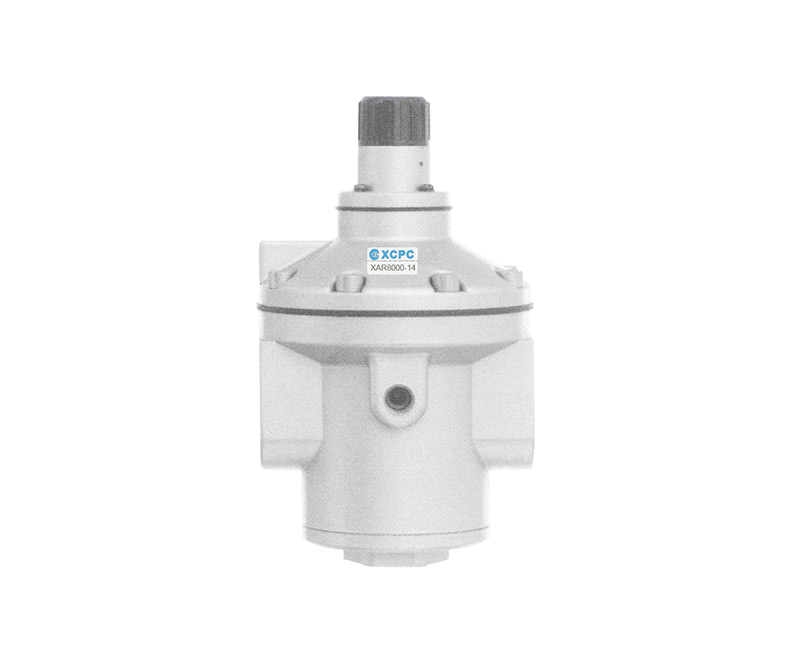

Series: XAR 8000-9000 Series Regulator

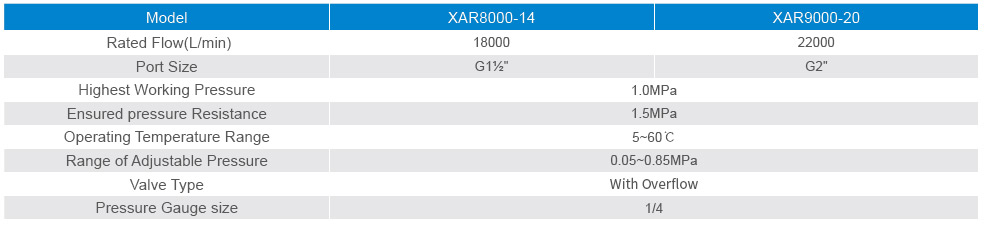

 Highest Working Pressure
|
1.0MPa
|
|||||||
|
Ensured pressure Resistance
|
1.5MPa
|
|||||||
|
Operating Temperature Range
|
5~60℃
|
|||||||
|
Range of Adjustable Pressure
|
0.05~0.85MPa
|
|||||||
|
Valve Type
|
With Overflow
|
|||||||
Under the circumstance that the supply pressure is 0.7MPa(7.1kgf/cm^2)and the step down is 0.5MPa(0.5kgf/cm^2)
Accurate requlation of an optimal air fl...
Accurate regulation of an optimal airflo...
One-Touch push-to-connect configuration ...
