PAV100 Series Pneumatic Axial Valve

Series: PAV100 Series Pneumatic Axial Valve

Temperature of Pilot Valve	-10~60°C
Working pressure	0~1.6 MPa
Max.Control Pressure of pilot valve	1 MPa
Control Pressure Rang(double acting)	0.35~0.8 MPa

Download PDF Inquily now

Sub Series Of PAV Series Pneumatic Axial Valve

2Results

PAV200 Series Pneumatic Axial Valve

PAV100 Series Pneumatic Axial Valve

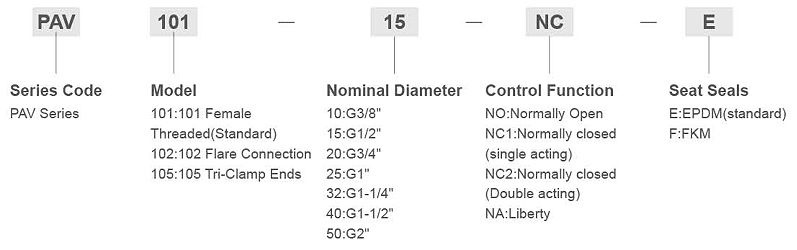

Ordering Code

Specification

Model		PAV101~105:DN10~50
Temperature of Medium	NBR	-10~ 70°C
	FKM	-10~150°C
	EPDM	-10~130°C
Temperature of Pilot Valve		-10~60°C
Working pressure		0~1.6 MPa
Max.Control Pressure of pilot valve		1 MPa
Control Pressure Rang(double acting)		0.35~0.8 MPa
Control Pressure Rang(single acting)		0.45~0.8MPa
Ambient and fluid of Pilot valve		Filtered Air or gas
Material Od Bqdy		S.S.304/316
Seals of Proof of duty		FPM
Piston Seals		FKM/NBR

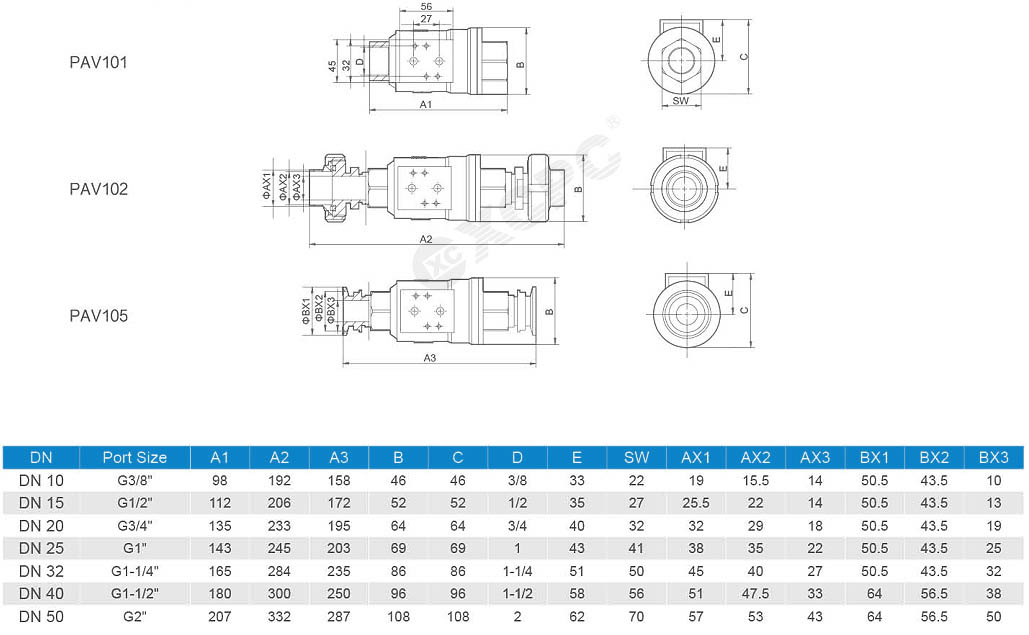

Overall Dimensions
