THP Series Normal Close Solenoid Valve
SERIES: THP Series Normal Close Solenoid Valve
THP Series Normal Close Solenoid Valve
FEATURES
|
Normal Close, avaiable body: brass, SS304, SS316 Multiple seals are available for different medium. Wide size range from 1/8" to 2" . DIN style/flying leads coil, thread/flange connection. Piston pilot solenoid valve with high working pressure and temperature. |

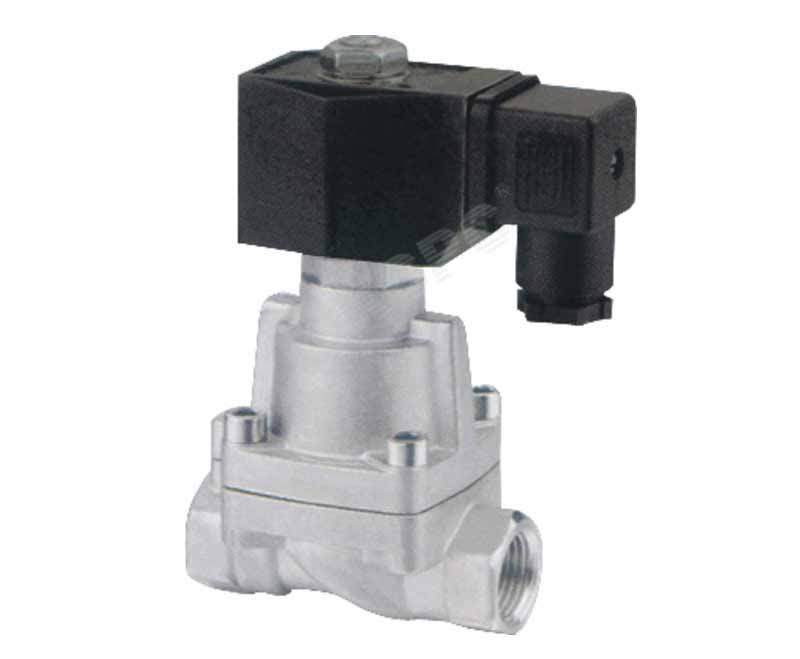

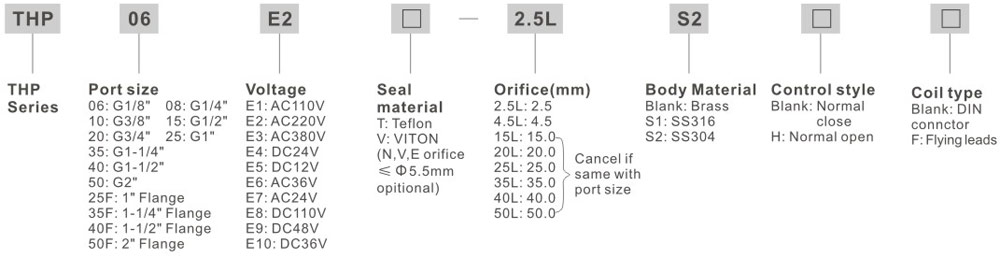

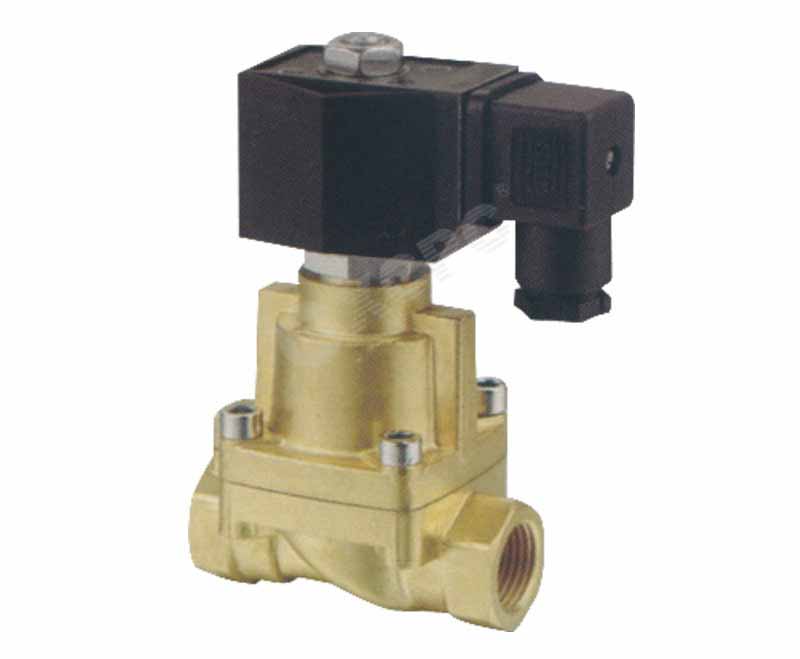

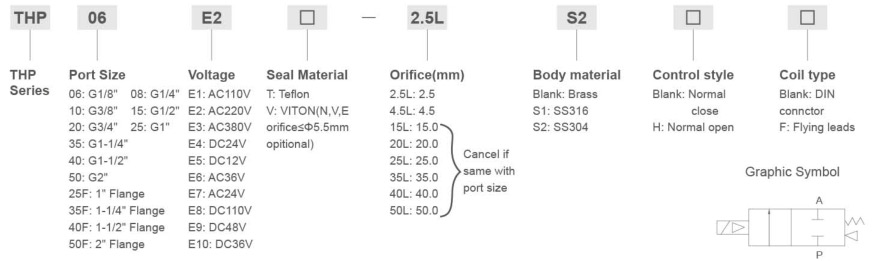

Ordering Code

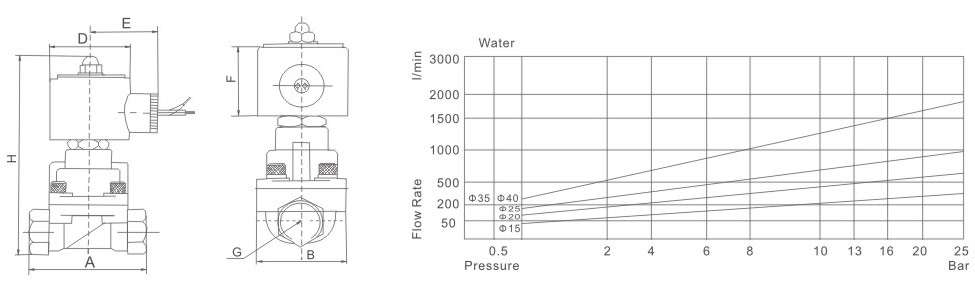

Specification
| Port Size (G) | Orifice (mm) | CV Value | Pressure difference(Bar) | Max. temperature | Power | Model 220VAC 50/60Hz | Overall dimension | |||||||||
| Min. pressure | Max. working pressure | |||||||||||||||
| Air、Gas | Water、 Hot water、 Liquid | Light oil ≤20CST | Steam | VA | W | Brass | Stainless steel | Length×Width×Height A×B×H(mm) | ||||||||
| AC | DC | AC | DC | AC | DC | AC/DC | ||||||||||
| G1/8" | 2.5 | 0.23 | 0 | 8 | 8 | 8 | 8 | 6 | 6 | 10 | 180 | 22 | 13 | THP06T-2.5L | — | 48×25×85.5 |
| 2.5 | 0.23 | 0 | 13 | 13 | 13 | 13 | 7 | 7 | 10 | 110 | 22 | 13 | THP06V-2.5L | — | 48×25×85.5 | |
| 4.5 | 0.6 | 0 | 7 | 4 | 7 | 4 | 4 | 4 | 7 | 165 | 22 | 13 | THP06T-4.5L | — | 58×25×85.5 | |
| 4.5 | 0.6 | 0 | 7 | 4 | 7 | 4 | 4 | 4 | 7 | 110 | 22 | 13 | THP06V-4.5L | — | 58×25×85.5 | |
| G1/4" | 2.5 | 0.23 | 0 | 7 | 4 | 7 | 4 | 4 | 4 | 10 | 180 | 22 | 13 | THP08T2-2.5L | — | 48×25×85.5 |
| 2.5 | 0.23 | 0 | 13 | 13 | 13 | 4 | 7 | 7 | 10 | 110 | 22 | 13 | THP08V-2.5L | — | 48×25×85.5 | |
| 4.5 | 0.6 | 0 | 7 | 4 | 7 | 4 | 4 | 4 | 7 | 165 | 22 | 13 | THP08T-4.5L | — | 58×25×85.5 | |
| 4.5 | 0.6 | 0 | 7 | 4 | 7 | 4 | 4 | 4 | 7 | 110 | 22 | 13 | THP08V-4.5L | — | 58×25×85.5 | |
| G3/8" | 15 | 4.5 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 |
|
110 | 33 | 32 | THP10T-15L | THP10T-15LS2 | 75×52×129 |
| 15 | 4.5 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | 10 | 185 | 30 | 25 | THP10T-15LF | THP10T-15LS2F | 75×52×129 | |
| G1/2" | 15 | 4.5 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 |
|
110 | 33 | 32 | THP-15T | THP-15TS2 | 75×52×129 |
| 15 | 4.5 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | 10 | 185 | 30 | 25 | THP-15TF | THP-15TS2F | 75×52×129 | |
| G3/4" | 20 | 9.0 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 |
|
110 | 33 | 32 | THP-20T | THP-20TS2 | 85×60×141 |
| 20 | 9.0 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | 10 | 185 | 30 | 25 | THP-20TF | THP-20TS2F | 85×60×141 | |
| G1" | 25 | 13 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 |
|
110 | 33 | 32 | THP-25T | THP-25TS2 | 100×70×148 |
| 25 | 13 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | 10 | 185 | 30 | 25 | THP-25TF | THP-25TS2F | 100×70×148 | |
| G1-1/4" | 35 | 26 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | 10 | 110 | 33 | 32 | THP-35T | THP-35TS2 | 120×90×168 |
| 35 | 26 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 |
|
185 | 30 | 25 | THP-35TF | THP-35TS2F | 120×90×168 | |
| G1-1/2" | 35 | 26 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | 10 | 110 | 33 | 32 | THP40T-35L | THP40T-35LS2 | 120×90×168 |
| 35 | 26 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 |
|
185 | 30 | 25 | THP40T-35LF | THP40T-35LS2F | 120×90×168 | |
| G2" | 50 | 48 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 |
|
110 | 33 | 32 | — | THP-50TS2 | 150×110×190 |
| 50 | 48 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | 10 | 185 | 30 | 25 | — | THP-50TS2F | 150×110×190 | |
| G1" Flange | 25 | 13 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 |
|
110 | 33 | 32 | — | THPPFT-25LS2 | 134×110×185 |
| 25 | 13 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | 10 | 185 | 30 | 25 | — | THPFT-25LS2F | 134×110×185 | |
| G1-1/4" Flange | 35 | 26 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 |
|
110 | 33 | 32 | — | THPFT-35LS2 | 160×135×200 |
| 35 | 26 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | 10 | 185 | 30 | 25 | — | THPFT-35LS2F | 160×135×200 | |
| G1-1/2" Flange | 35 | 26 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 |
|
110 | 33 | 32 | — | THPFT-40LS2 | 160×145×205 |
| 35 | 26 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | 10 | 185 | 30 | 25 | — | THPFT-40LS2F | 160×145×205 | |
| G2" Flange | 50 | 45 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | 10 | 110 | 33 | 32 | — | THPFT-50LS2 | 200×155×250 |
| 50 | 45 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 |
|
185 | 30 | 25 | — | THPFT-50LS2F | 200×155×250 | |
