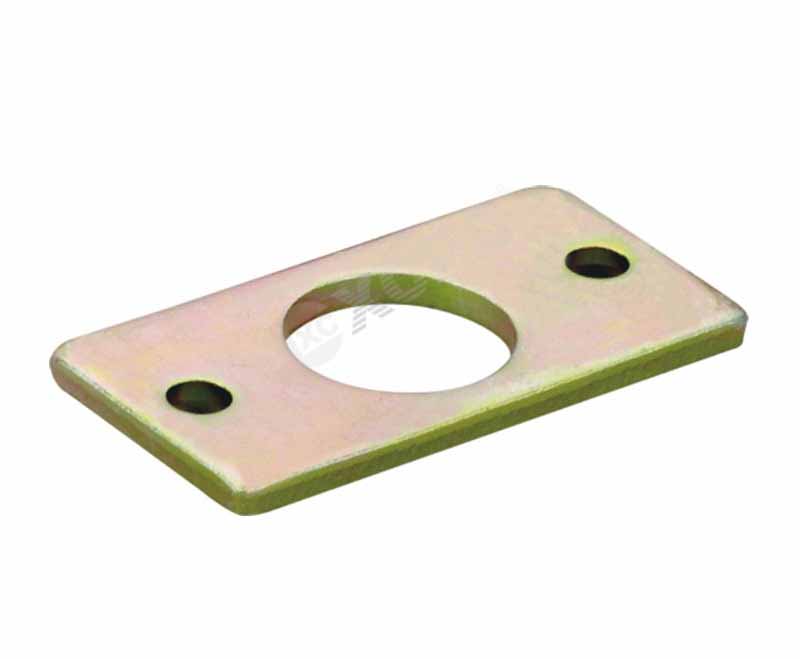

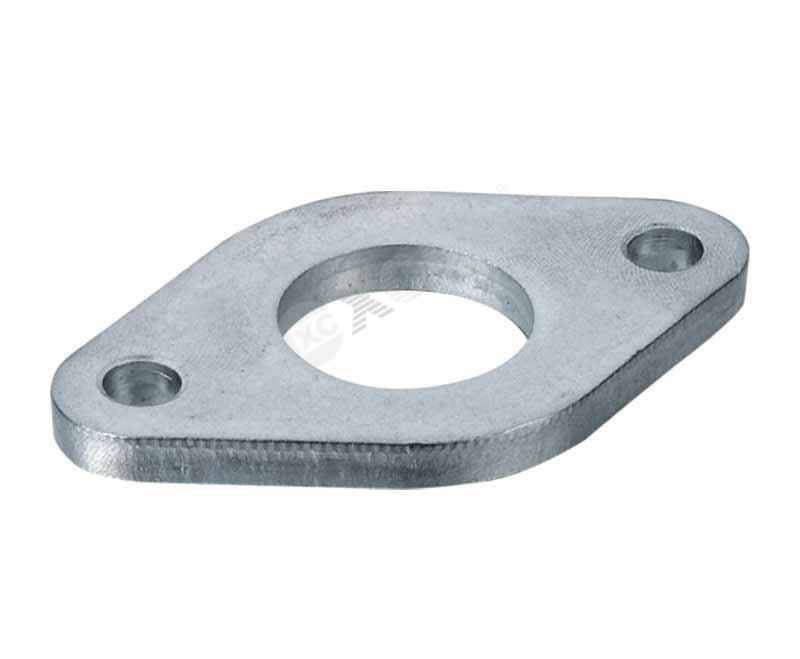

M-FA Type Flange

SERIES: Mini Cylinder Accessories

M-FA Type Flange

FEATURES

SUB-SERIES

M-FA Type Flange

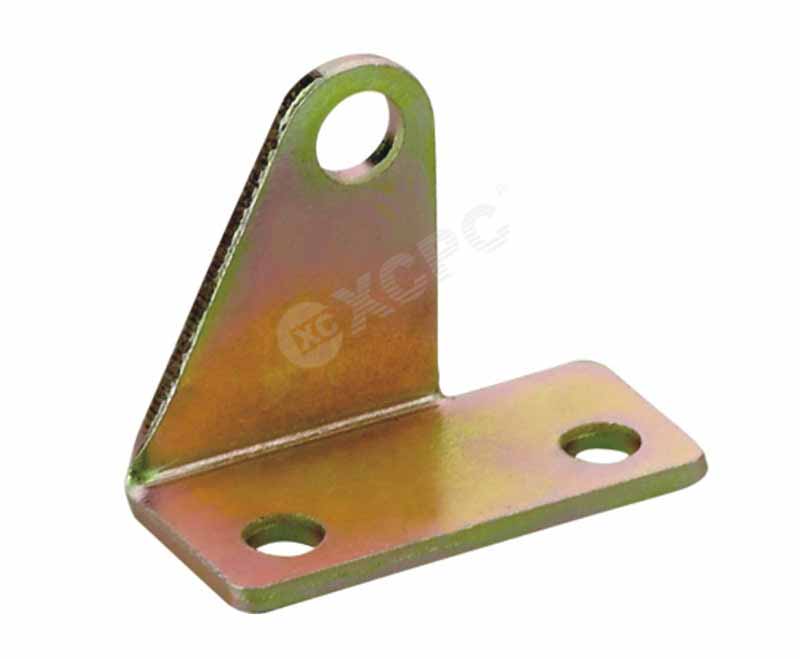

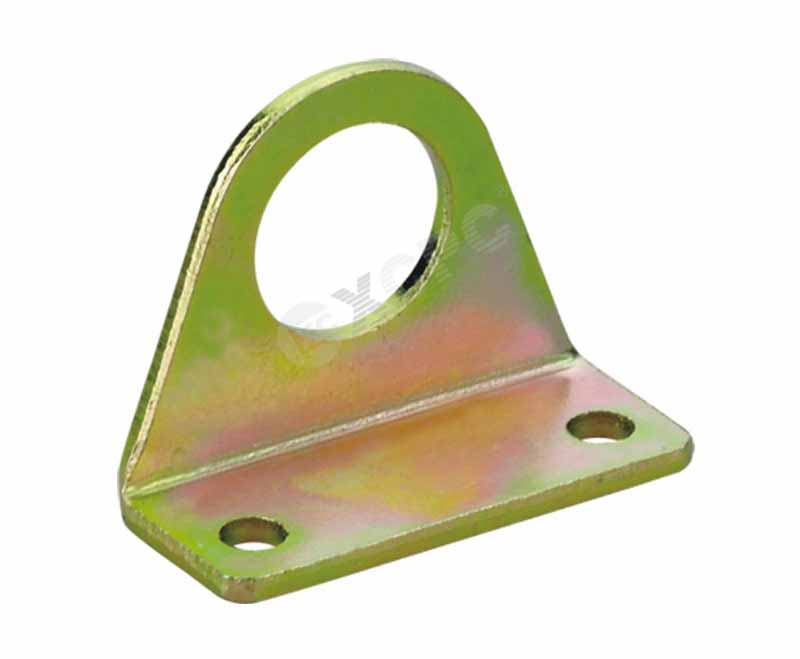

M-LB Type Foot Bracket

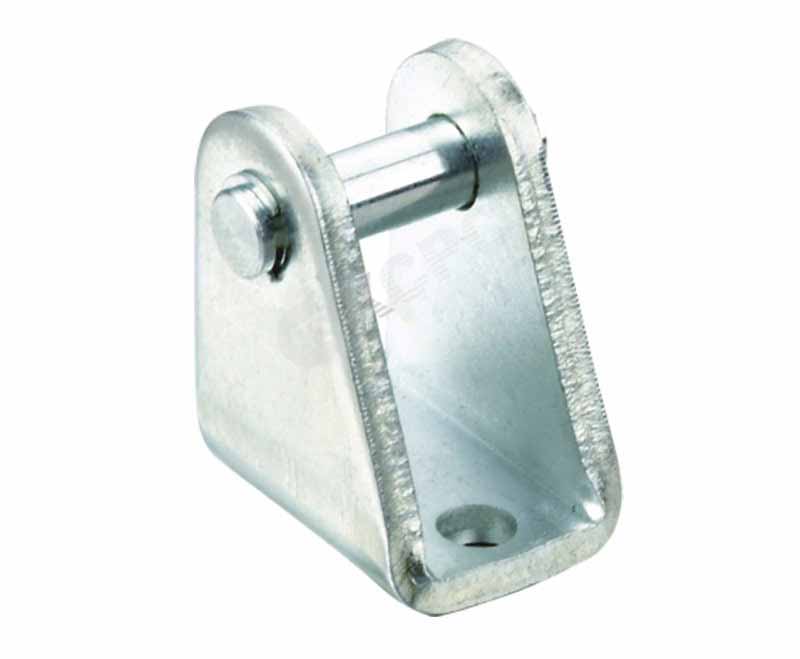

M-SDB Type Bracket

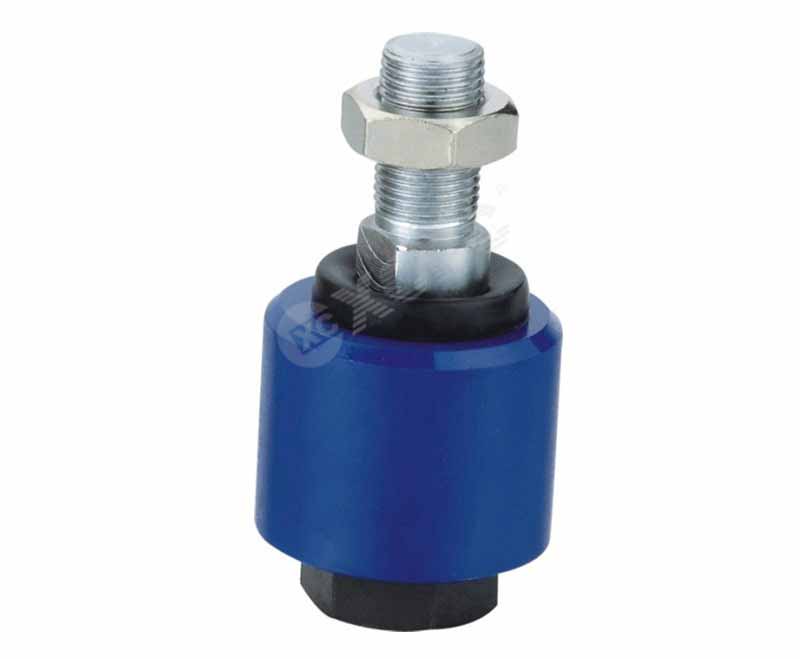

M-UJ Type Float Joint

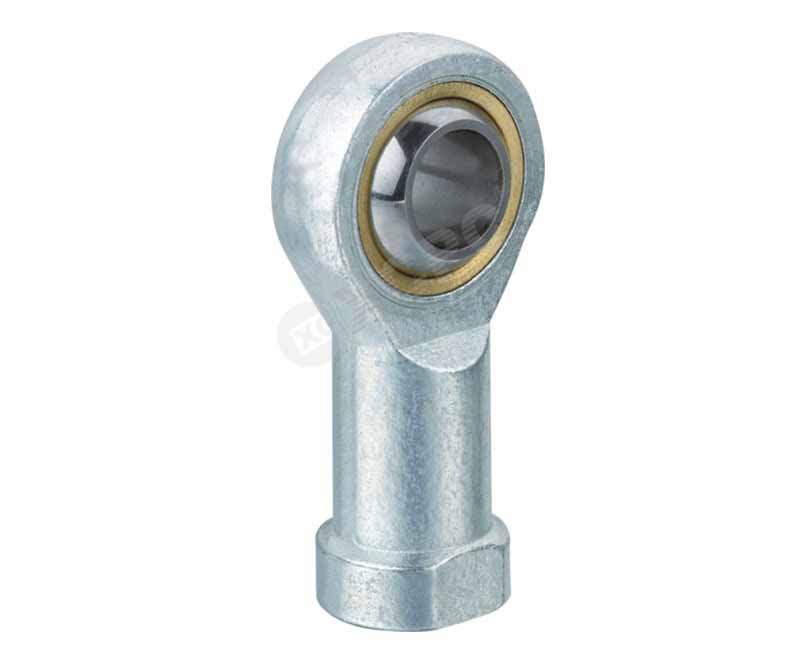

M-PHS Type Fish Eye Joint

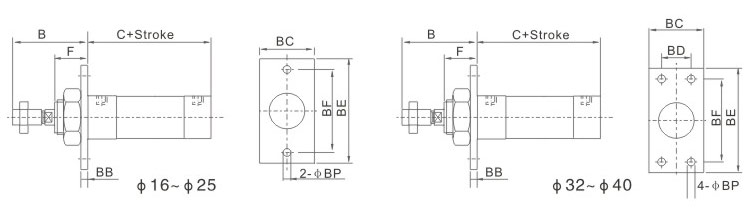

Overall Dimensions

	B	C		C(MSA Series )		C(MSAL Series )		BB	BC	BD	BE	BF	BP	P
Bore	B	(MA Series )	(MAL Series )	0-50	51-100	0-50	51-100	BB	BC	BD	BE	BF	BP	P
16	38	60	-	60	85	-	-	3	26	-	52	40	5.5	16
20	40	76	70	76	101	70	95	4	38	-	64	50	6.5	12
25	44	76	70	76	101	70	95	4	38	-	64	50	6.5	14
32	44	76	70	76	101	70	95	4	47	33	72	58	6.5	14
40	46	76	92	76	101	92	117	4	50	36	84	70	6.5	14
