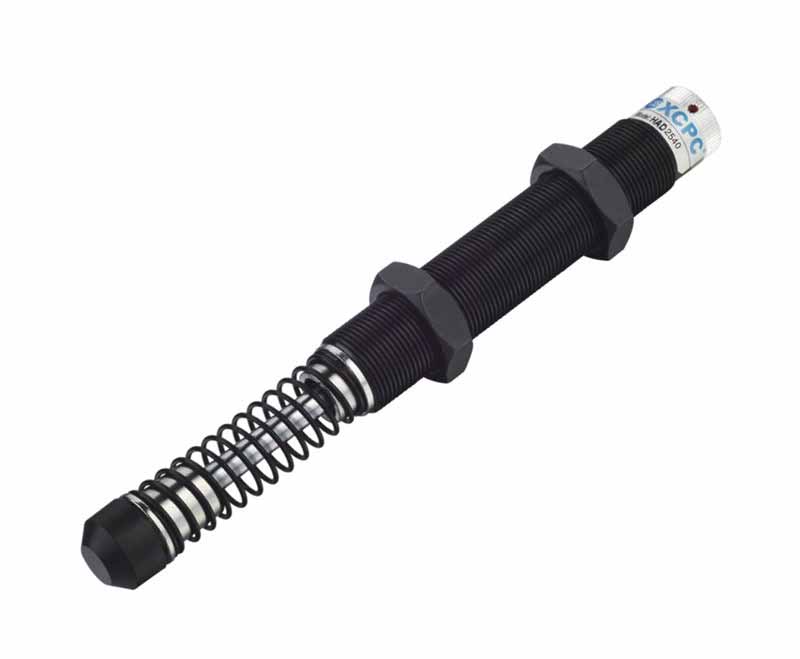

HAD Series Shock Absorbers

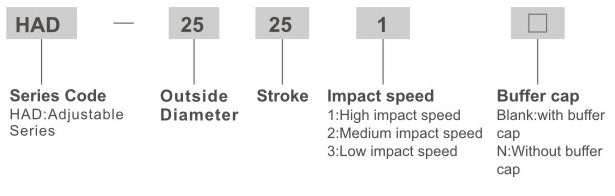

Ordering Code
Specification
| Model | Stroke |
Max.Absorbing Energy (NM) |
Max.Absorb. Energy/Hour (NM) |
Max.Effective Mass(kg) | Max.Impact Speed (m/s) |
| HAD-1410 | 10 | 20 | 24,000 | 80 | 3.2 |
| HAD-1415 | 15 | 22 | 26,400 | 120 | 3.2 |
| HAD-2016 | 16 | 25 | 32,000 | 200 | 3.6 |
| HAD-2025 | 25 | 39 | 39,000 | 312 | 3.6 |
| HAD-2525 | 25 | 85 | 51,000 | 400 | 3.6 |
| HAD-2530 | 30 | 95 | 57,000 | 480 | 3.6 |
| HAD-2540 | 40 | 100 | 84,000 | 700 | 3.6 |
| HAD-2550 | 50 | 98 | 98,000 | 720 | 4.2 |
| HAD-2580 | 80 | 150 | 127,500 | 800 | 4.2 |
| HAD-3625 | 25 | 150 | 90,000 | 1,400 | 3.2 |
| HAD-3650 | 50 | 300 | 108,000 | 1,400 | 4.8 |
| HAD-4225 | 25 | 260 | 130,000 | 3,000 | 3.6 |
| HAD-4250 | 50 | 500 | 155,000 | 4,000 | 4.8 |
| HAD-4275 | 75 | 750 | 187,000 | 6,000 | 4.8 |
| HAC-64050 | 50 | 12,000 | 1,560,000 | 12,727 | 1.6 |
| HAC-64100 | 100 | 24,000 | 1,920,000 | 18,181 | 1.6 |
| HAC-64150 | 150 | 36,000 | 2,520,000 | 23,636 | 1.6 |
