CY3 Series Rodless Cylinder
SERIES: CY3 Series Rodless Cylinder

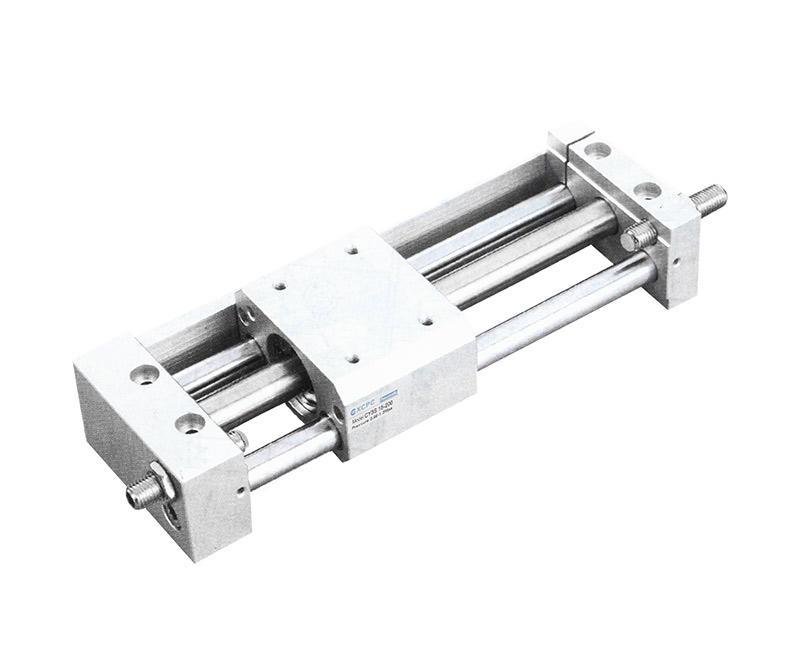

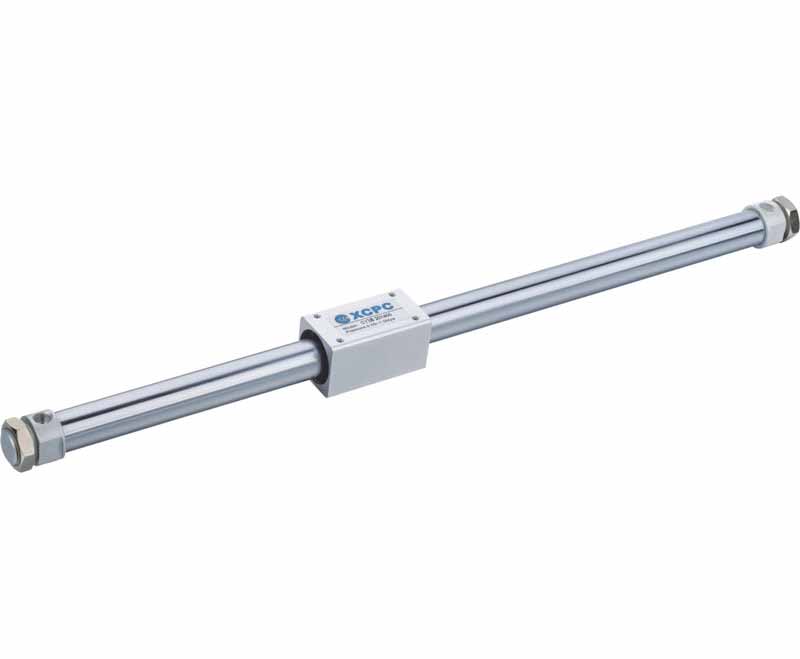

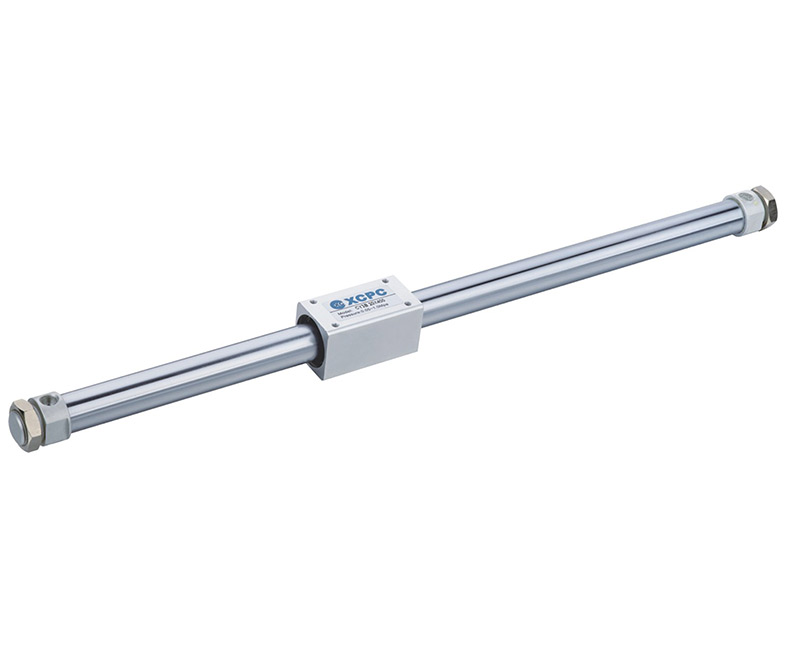

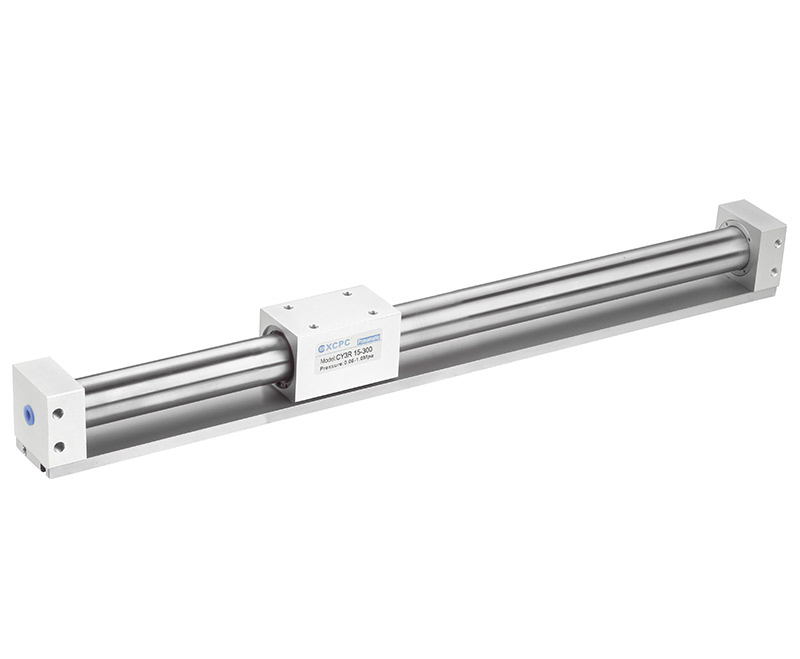

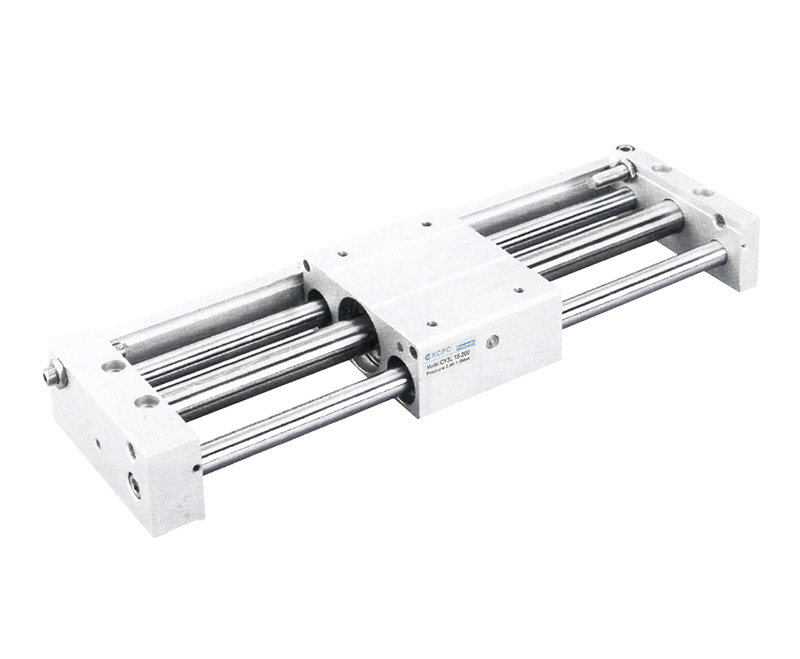

CY3 Series Rodless Cylinder
FEATURES

Working Medium

Air

Motion Pattern

Double action

Ensured Pressure Resistance

10.5kgf/cm2(1.05Mpa)

Max.pressure

7.1kgf/cm2(0.7Mpa)

Min.pressure

1.8kgf/cm2(0.18Mpa)

Margin of Stroke Error(mm)

~0~250+1.0 251~1000+1.4 1001~1500+1.8

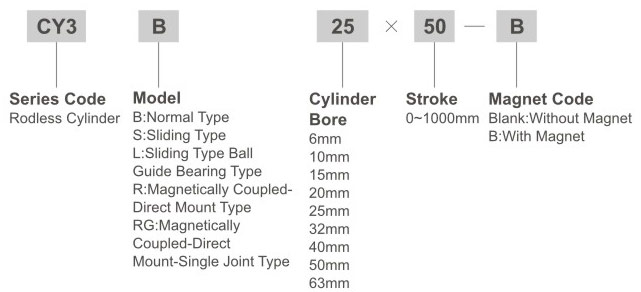

Ordering Code

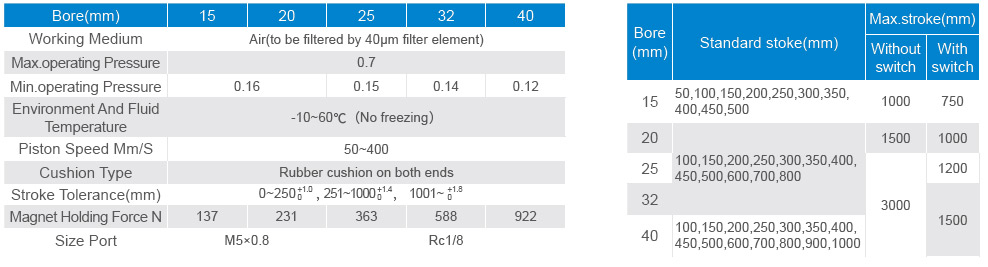

Specification

Bore(mm)

6

10

15

20

25

32

40

50

63

Working Medium

Air

Motion Pattern

Double action

Ensured Pressure Resistance

10.5kgf/cm2(1.05Mpa)

Max.pressure

7.1kgf/cm2(0.7Mpa)

Min.pressure

1.8kgf/cm2(0.18Mpa)

Ambient and fluid temperature

Cy1 B/S:5~+60℃ Cy1 L:-10~+60℃ Cy1 R:-10~+60℃

Piston Speed

Cy1 B/S:50~400mm/s Cy1 L:50~1000mm/s Cy1 R:50~500mm/s

Buffering

Cy1 B/S:Both ends buffer Cy1 L: Skock absorber/Rubber bumper

Margin of Stroke Error(mm)

~0~250+1.0 251~1000+1.4 1001~1500+1.8

*Lubrication

Not required

Port size

M5×0.8

G1/8"

G1/4"
